China Moneypro Secure Wireless UGV/Drone Data Links for NLOS Communications

China Moneypro Mimo Digital Data Link For Mobile Uavs And Robotics Transmitting Video In Nlos

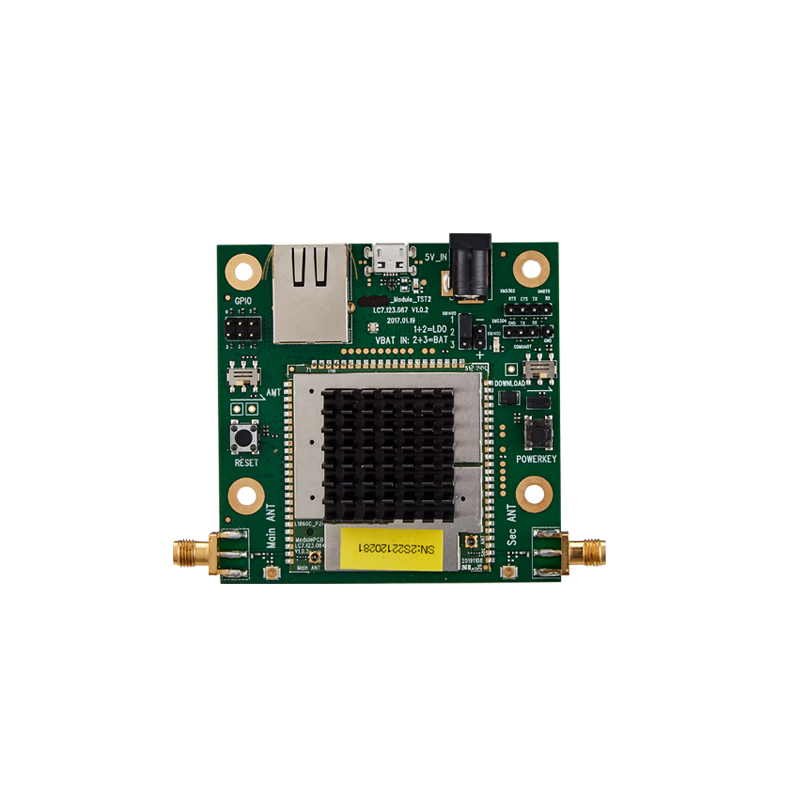

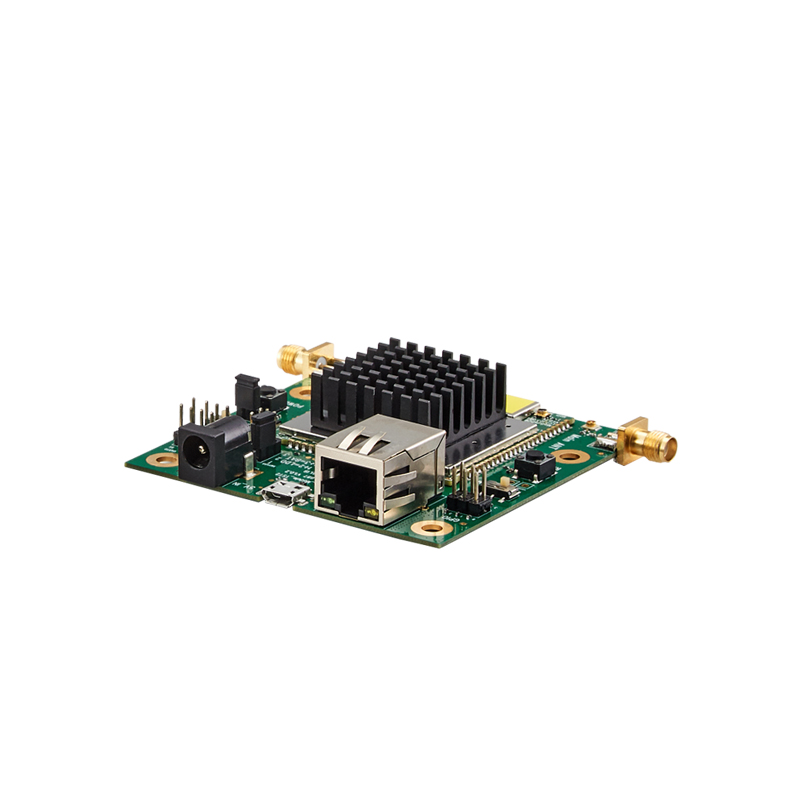

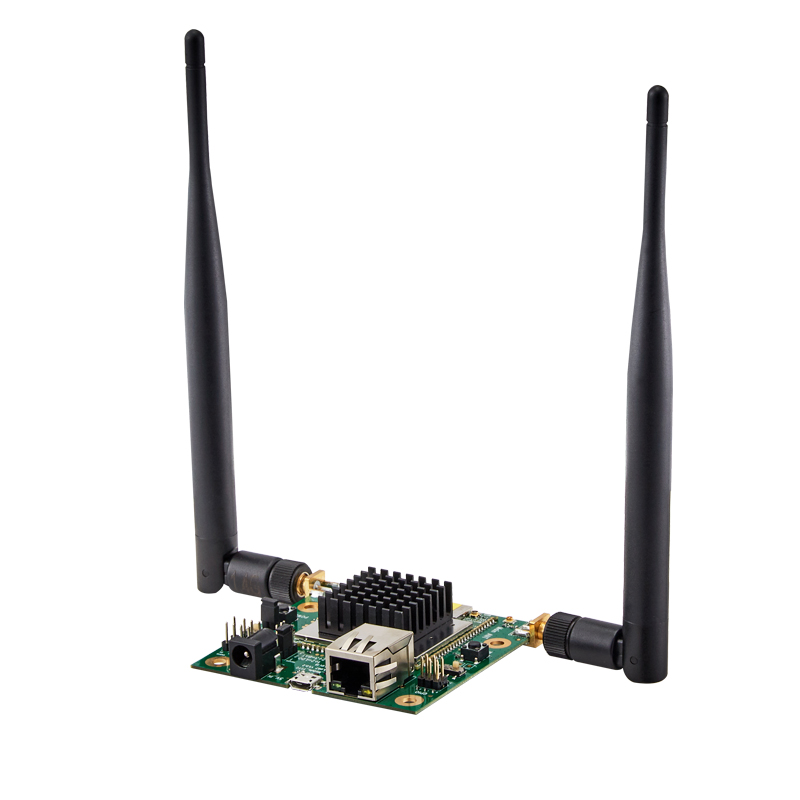

Introducing the FDM-6600: The Compact, High-Performance Wireless COFDM Transmitter

Meet the FDM-6600—a lightweight wireless COFDM digital video transmitter designed for demanding unmanned communications. It seamlessly delivers video, IP, and data across challenging environments.

Built for reliability beyond the line of sight, the FDM-6600 ensures stable, smooth video streaming—no interruptions, no lag. It excels in ground-to-ground applications and reaches up to 15 km air-to-ground, making it perfect for:

  • Underground operations
  • Dense forests
  • Urban settings with buildings
  • Indoor environments
  • Mountainous terrain and tunnels

Weighing just 50 grams, the FDM-6600 is the ideal choice for size-sensitive and weight-critical UxV applications, where every gram counts without compromising performance.

Enhanced with:

  • A stronger opening to capture attention
  • Clearer structure with bullet points for readability
  • Active voice and more engaging phrasing
  • Emphasis on key specs (15 km range, 50g weight)
  • Removal of repetitive phrasing and minor grammatical issues
Category:
Description




Key Features

Exceptional Non-Line-of-Sight (NLOS) Performance Engineered with TD-LTE technology and advanced signal processing, the FDM-6600 maintains a strong, stable connection even in challenging NLOS environments where signals are weak or obstructed. Long-Range, Reliable Communication Delivers clear and stable radio signals over distances up to 20 km (air-to-ground) and supports smooth, full HD video streaming up to 3 km in NLOS conditions (ground-to-ground). High-Speed Data Throughput Achieves uplink and downlink speeds of up to 30 Mbps, ensuring fast and efficient data transfer for demanding applications. Smart Interference Avoidance Utilizes tri-band frequency hopping (800 MHz, 1.4 GHz, and 2.4 GHz) to automatically switch bands and maintain a high-quality connection, even in congested wireless environments. Flexible & Scalable Network Topology Easily configure scalable point-to-multipoint networks via an intuitive web interface. One master node supports up to 32 slave nodes, with real-time topology display for full network monitoring. Built-In Security Protects your data with AES-128 encryption, safeguarding your wireless link against unauthorized access and ensuring secure communications.

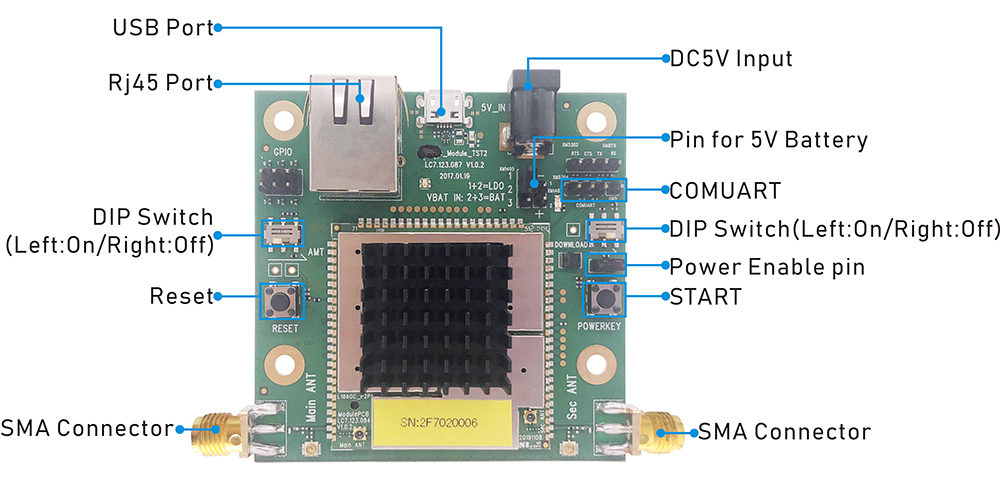

MIMO Radio

COMPACT & LIGHTWEIGHT

Only weights 50g and is ideal for UAS/UGV/UMV and other unmanned platforms with strict size, weight, and power (SWaP) constraints.





Introducing the FDM-6600 A compact, lightweight, and low-power Software-Defined Radio (SDR) module designed for advanced wireless video and data transmission. Featuring full-duplex communication and high-speed broadband RF capability, the FDM-6600 seamlessly supports real-time video and telemetry within a single channel. It’s the ideal solution for UAVs, autonomous vehicles, and mobile robotics across diverse industries.



ugv (1)


Specification

GENERAL
TECHNOLOGY Wireless based on TD-LTE Technology Standards
ENCRYPTION ZUC/SNOW3G/AES(128) OptionalLayer-2
DATA RATE 30Mbps(Uplink and Downlink)
RANGE 20km(Air to ground)
1km-3km(NLOS Ground to ground)
CAPACITY Star Topology, Point to 7-Point
POWER 23dBm±2 (2w or 10w on request)
LATENCY One Hop Transmission≤30ms
MODULATION QPSK, 16QAM, 64QAM
ANTI-JAM Automatically Cross-Band frequency hopping
BANDWIDTH 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz
POWER CONSUMPTION 5Watts
POWER INPUT DC5V
SENSITIVITY
2.4GHZ 20MHZ -99dBm
10MHZ -103dBm
5MHZ -104dBm
3MHZ -106dBm
1.4GHZ 20MHZ -100dBm
10MHZ -103dBm
5MHZ -104dBm
3MHZ -106dBm
800MHZ 20MHZ -100dBm
10MHZ -103dBm
5MHZ -104dBm
3MHZ -106dBm
FREQUENCY BAND
2.4Ghz 2401.5-2481.5 MHz
1.4Ghz 1427.9-1467.9MHz
800Mhz 806-826 MHz
COMUART
Electrical Level 2.85V voltage domain and compatible with 3V/3.3V level
Control Data TTL mode
Baud rate 115200bps
Transmission Mode Pass-through mode
Priority level Higher priority than the network port. When the signal transmission is crowed,
the control data will be transmitted in priority
Note:1. The data transmitting and receiving is broadcast in the network.
After successful networking, each FDM-6600 node can receive serial data.
2. If you want to distinguish between sending, receiving and control, you need to define the format yourself
INTERFACES
RF 2 x SMA
ETHERNET 1xEthernet
COMUART 1x COMUART
POWER DC INPUT
INDICATOR Tri-COLOR LED
MECHANICAL
Temperature -40℃~+80℃
Weight 50grams
Dimension 7.8*10.8*2cm
Stability MTBF≥10000hr
