Key Features
- MIMO 2×2 Technology – Enhanced signal reliability and data speeds with dual-input, dual-output transmission.
- Dual Gigabit Ethernet Ports – Includes a standard Gigabit Ethernet port plus a Power over Ethernet (PoE) port for flexible connectivity and easy installation.
- Scalable Network Support – Connect up to 8 nodes: 1 central hub supports 7 additional sub-nodes for expandable coverage.
- AES128 Encryption – Secure your wireless link with advanced encryption to prevent unauthorized access.
- Adjustable Bandwidth – Optimize performance with selectable bandwidths: 3MHz, 5MHz, 10MHz, 20MHz, or 40MHz.
- Long-Range NLOS Transmission – Achieve reliable non-line-of-sight communication over distances from 500 meters up to 3 kilometers (ground-to-ground).

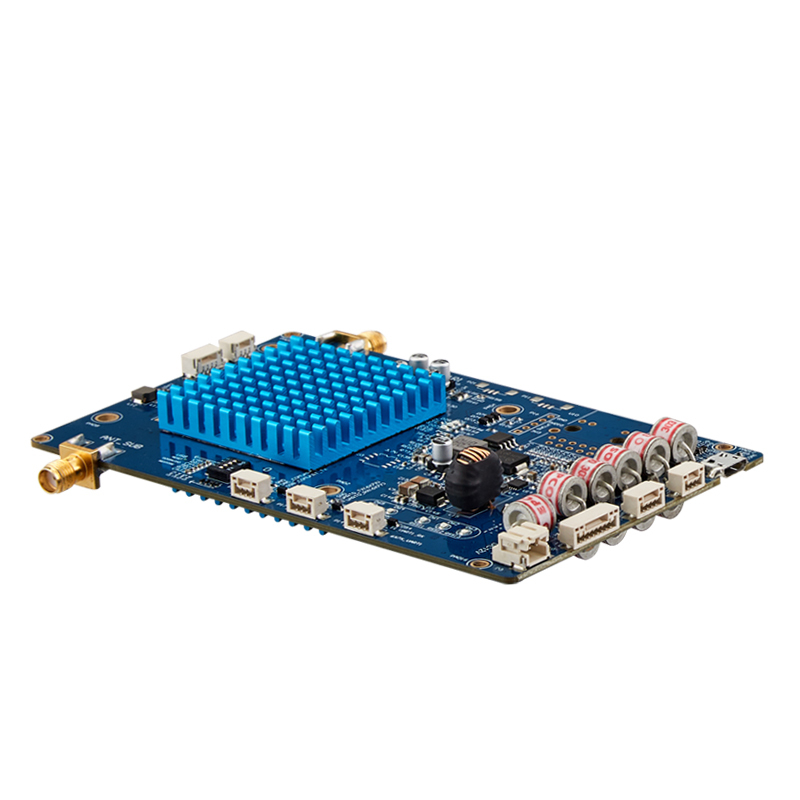

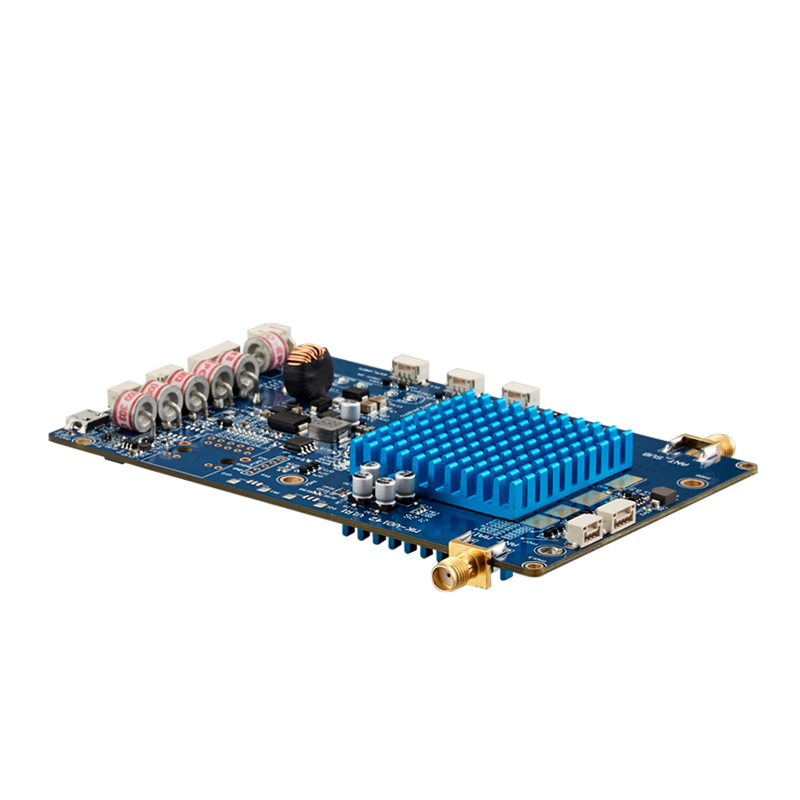

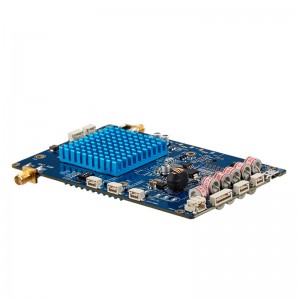

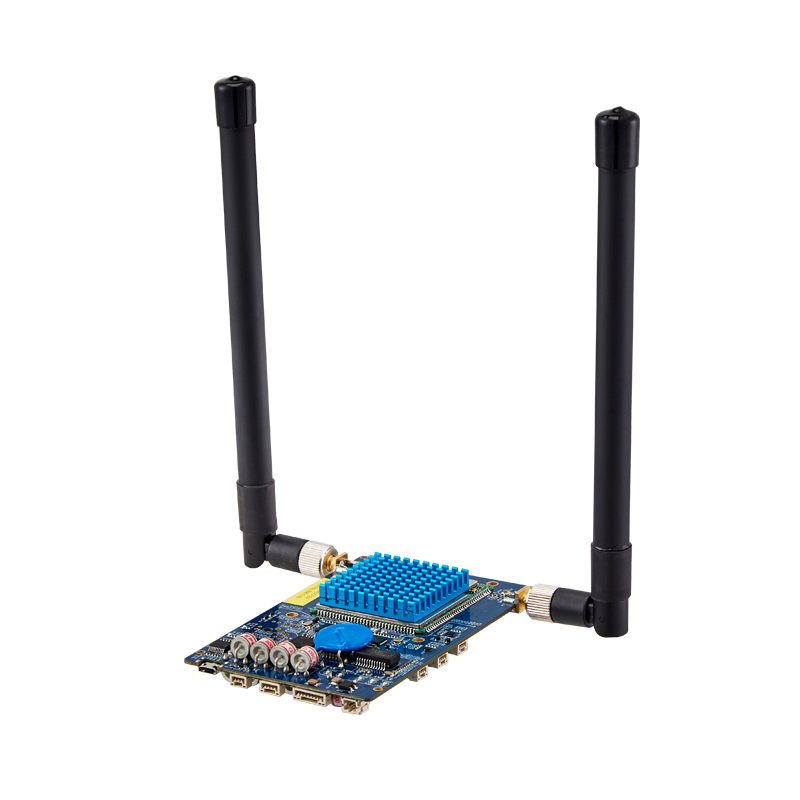

FDM-6800 High-Speed Digital Data Link
Key Features:
- High-Speed Mobility Support
Maintains a stable connection at speeds up to 300 km/h. - High Throughput
Simultaneous upload and download speeds of 100 Mbps. - Adaptive Power Management
Dynamically adjusts transmission power based on channel conditions to minimize interference and reduce power consumption. - Dual-Band MIMO Performance
Operates on 600 MHz and 1.4 GHz bands with 2×2 MIMO, delivering robust RF performance and data rates up to 120 Mbps. - Extended Range
Effective range of 500 meters to 3 km, even in non-line-of-sight urban environments.
Port Configuration:
- P1: USB Interface
- P2: Ethernet Port
- P3: Ethernet Port with PoE
- P4: Power Input
- P5: DBB_COMUAR
- P6: UART0
- P7, P8: RF Ports
- P9, P10: DBB_RFGPO
Ideal Application:
Provides a reliable, high-speed wireless video link for mobile and urban operations where stability and performance are critical.
Advanced Unmanned Systems & Connectivity Solutions
Unmanned Platforms
- Mini UAS (Unmanned Aerial Systems)
- Drone UAS
- UGV (Unmanned Ground Vehicles)
Wireless Communication & Control
- Ethernet Wireless Extension
- Wireless Telemetry Systems
- NLOS (Non-Line-of-Sight) Wireless Video Transmission
- Wireless Control Systems
Complete Technical Specifications Available
Refined to enhance readability, group related technologies, and create a more engaging presentation of capabilities.
| GENERAL | ||
| TECHNOLOGY | Wireless based on TD-LTE Technology Standards | |
| ENCRYPTION | ZUC/SNOW3G/AES(128) Optional Layer-2 | |
| DATA RATE | Max 120Mbps(Uplink and Downlink) | |
| RANGE | 10km-15km(Air to ground)500m-3km(NLOS Ground to ground) | |
| CAPACITY | Point to 7-Point | |
| MIMO | 2×2 MIMO | |
| POWER | 23dBm±2 (2w or 10w on request) | |
| LATENCY | End to end≤20ms-50ms | |
| MODULATION | QPSK, 16QAM, 64QAM | |
| ANTI-JAM | Automatically Cross-Band frequency hopping | |
| BANDWIDTH | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz | |
| POWER CONSUMPTION | 5Watts | |
| POWER INPUT | DC12V | |
| WIRELESS | ||
| COMMUNICATION | Communication between any 2 slave nodes must be forwarded through the master node |
|
| MASTER NODE | Any node in the network can be configured as the master node. | |
| SLAVE NODE | All nodes support unicast, multicast, and broadcast | |
| ACCESS | Multiple slave nodes can access the network simultaneously. | |
| 1.4GHZ | 20MHZ | -102dBm |
| 10MHZ | -100dBm | |
| 5MHZ | -96dBm | |
| 600MHZ | 20MHZ | -102dBm |
| 10MHZ | -100dBm | |
| 5MHZ | -96dBm | |
| FREQUENCY BAND | ||
| 1.4Ghz | 1420Mhz-1530MHz | |
| 600Mhz | 566Mhz-678Mhz | |
| MECHANICAL | ||
| TEMPERATURE | -40℃~+80℃ | |
| WEIGHT | 60grams | |
|
INTERFACES |
||
| RF | 2 x SMA | |
| ETHERNET | 2xEthernet | POE |
| Ethernet port for data(4Pin) | ||
| COMUART | 1xCOMUART | RS232 3.3V level, 1 start bit, 8 data bits, 1 stop bit , no parity check |
| Baud Rate: 115200bps(Default) (57600, 38400, 19200, 9600 configurable) |
||
| POWER | 1xDC INPUT | DC12V |
| USB | 1xUSB | |
