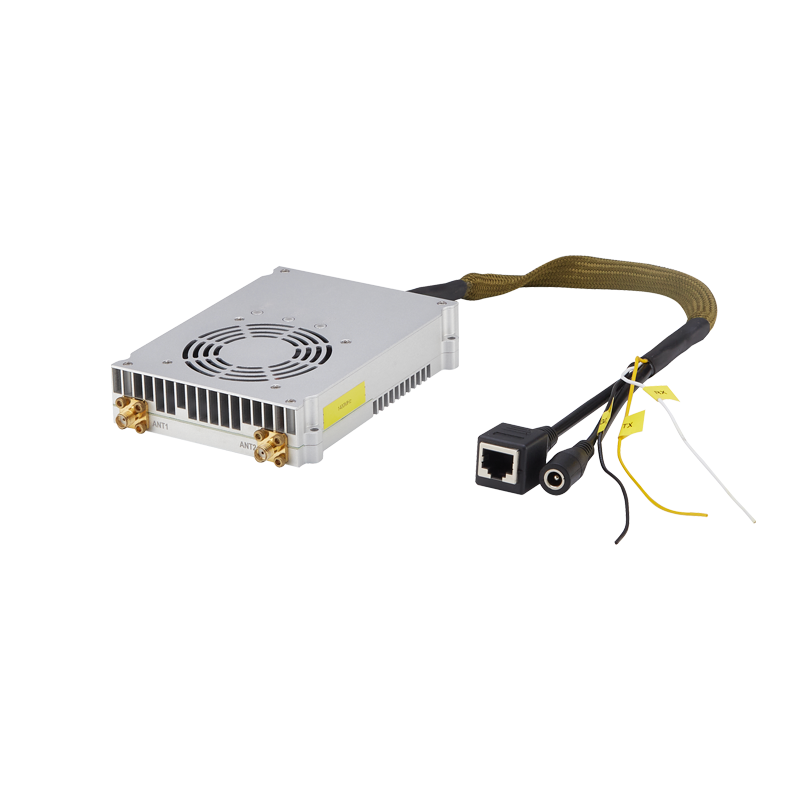

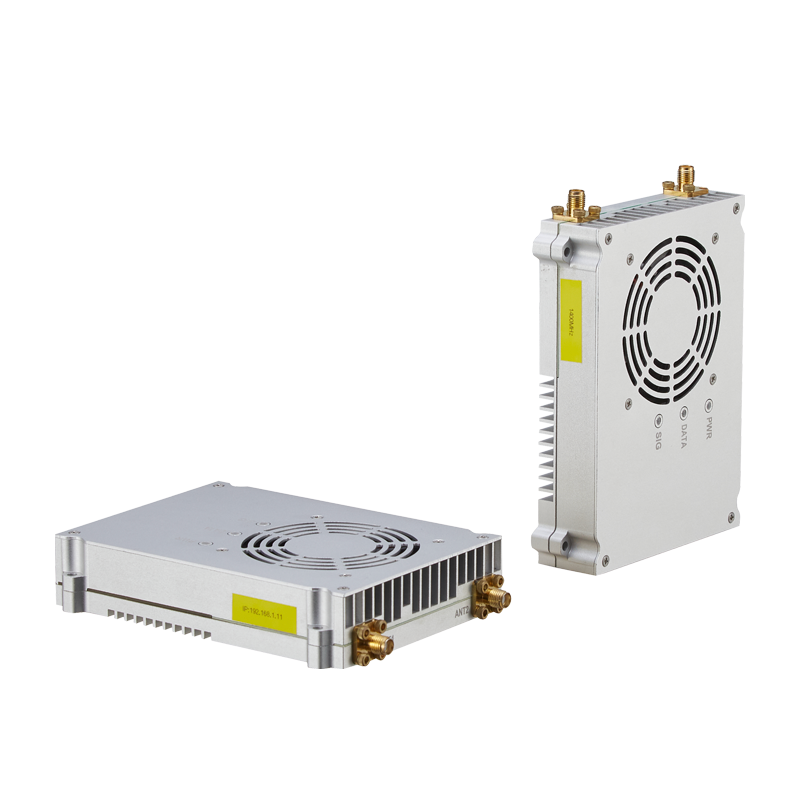

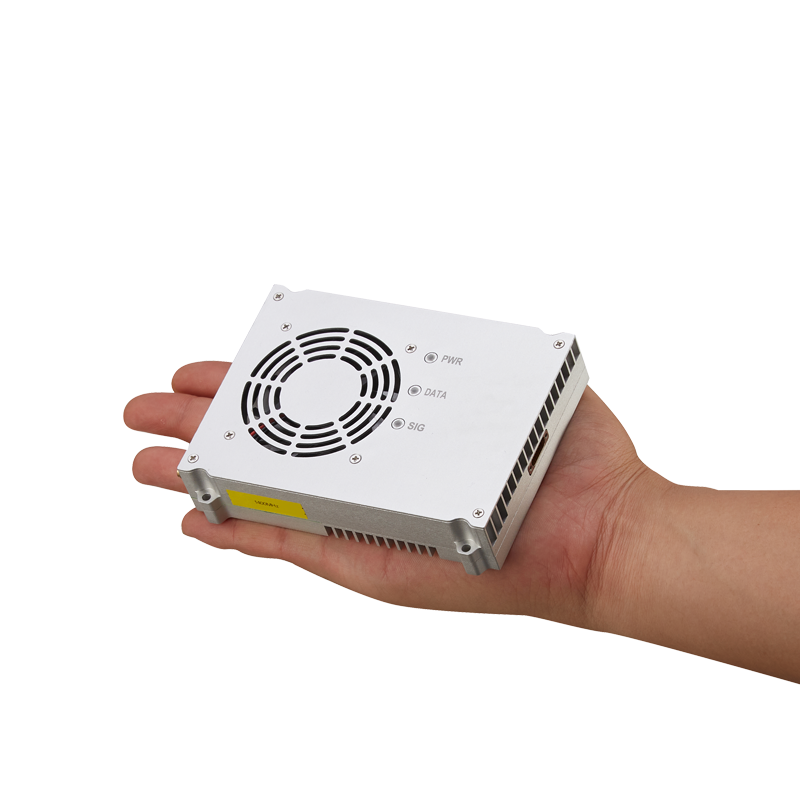

China Moneypro 120Mbps MIMO Wireless IP Digital Data Link for HD Video and Data Communication

Model: FDM-6855UG

The FDM-6855UG is a high-performance wireless transmission system engineered for demanding applications such as unmanned ground vehicles (UGVs) and robotics. Built to deliver reliable, real-time communication, it combines advanced technology with rugged adaptability to excel in challenging environments.

Key Features:

  • 120Mbps High Bandwidth – Supports multiple HD video streams simultaneously.
  • 2×2 MIMO Multi-Antenna Technology – Enhances signal reliability and throughput.
  • Dual-Band Adaptive Anti-Interference (600MHz/1.4GHz) – Maintains stable connections even in congested or noisy signal areas.
  • 8-Node Networking – Enables seamless multi-device collaboration.
  • Ultra-Strong Non-Line-of-Sight Capability – Ensures continuous communication through obstacles like buildings, jungles, and tunnels.
  • Long-Range Performance – Achieves transmission distances of up to 1–10 km in complex terrain.
  • IP Transparent Transmission & Full-Duplex Control – Allows smooth, real-time remote operation of unmanned systems.
  • Ultra-Low Latency – Delays are minimized for precise, responsive control.

Ideal For:
Applications where stability, real-time performance, and multi-device coordination are critical. Whether navigating urban obstacles, remote industrial sites, or confined underground spaces, the FDM-6855UG provides a dependable, high-performance link for video and data transmission.

A reliable, adaptable, and powerful wireless solution for the most communication-intensive tasks.

Category:
Description

Key Features

High-Speed, Reliable Connectivity
Combines MIMO and Carrier Aggregation (CA) technologies to deliver robust, high-bandwidth wireless links with data rates up to 120 Mbps. By aggregating two 20 MHz carriers into a 40 MHz bandwidth, performance is enhanced for both upload and download—improving speed, stability, and adaptability in diverse environments.

Multi-Stream Video Support
Enables simultaneous transmission of multiple high-definition video streams, including:

  • 4 channels of 1080P at 60 fps, or
  • 2 channels of 4K at 30 fps

Seamless Integration
Uses IP-transparent transmission to connect effortlessly with existing video and data systems. Direct Ethernet connection to robot control systems ensures smooth compatibility with standard protocols such as TCP/UDP.

Built for Tough Environments
Incorporates advanced Frequency-Hopping Spread Spectrum (FHSS) and adaptive modulation to maintain strong, uninterrupted performance—even in crowded or challenging RF conditions.

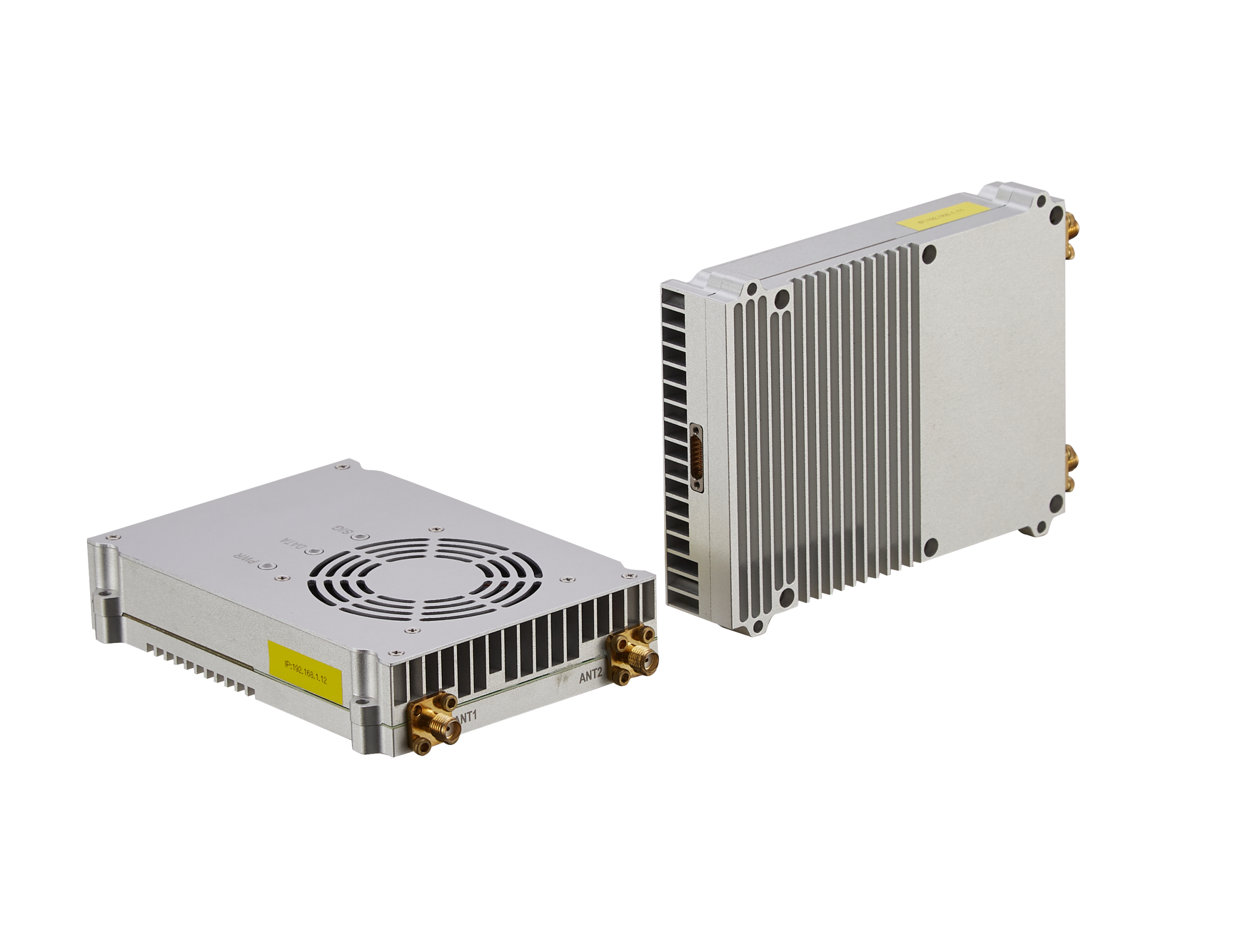

FDM-6805UG-4



Seamless 8-Node Networking Connect up to 8 devices effortlessly with plug-and-play operation. The system automatically negotiates routes and supports dynamic networking in point-to-point or point-to-multipoint configurations. Rapid Deployment Get up and running quickly with fast setup, broad compatibility, low power consumption, and high bandwidth—ready for any scenario. Versatile Connectivity Features a J30 Aviation Plug Interface for flexible communication, supporting multiple serial ports and Ethernet connections.



MECHANICAL
Working Temperture -20℃~+55℃
Dimension 130*100*25mm(Antenna Not Included)
Weight 273g

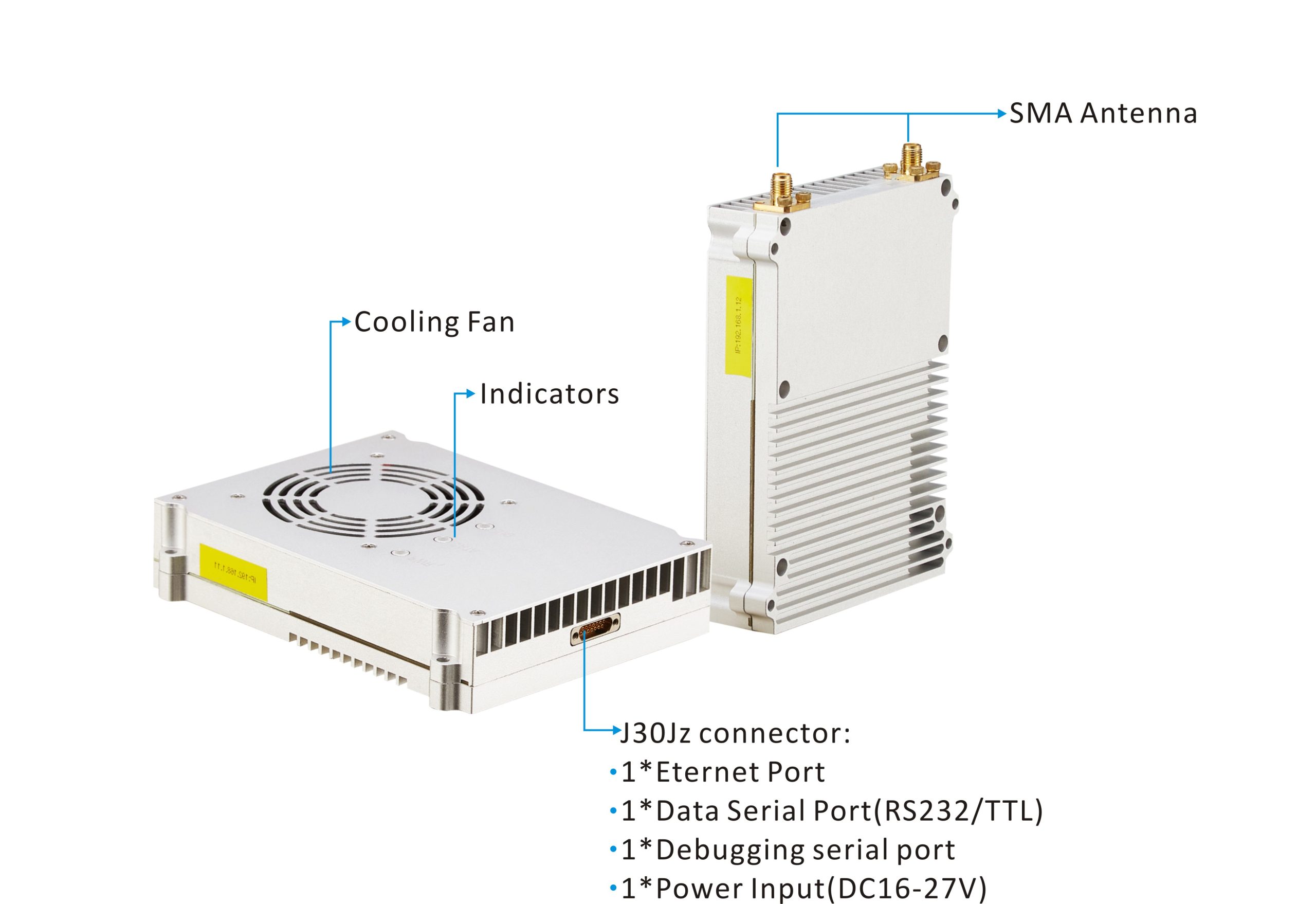

INTERFACES
RF 2 x SMA
ETHERNET 1xEthernet
COMUART 3xSerial Port 1. DEBUG Serial Port2. Base Serial  Port  （only support TCP/UDP）3. Extend Serial Port
POWER 1xDC INPUT DC24V-27V
接口


Here’s a revised version with improved clarity, flow, and engagement: —

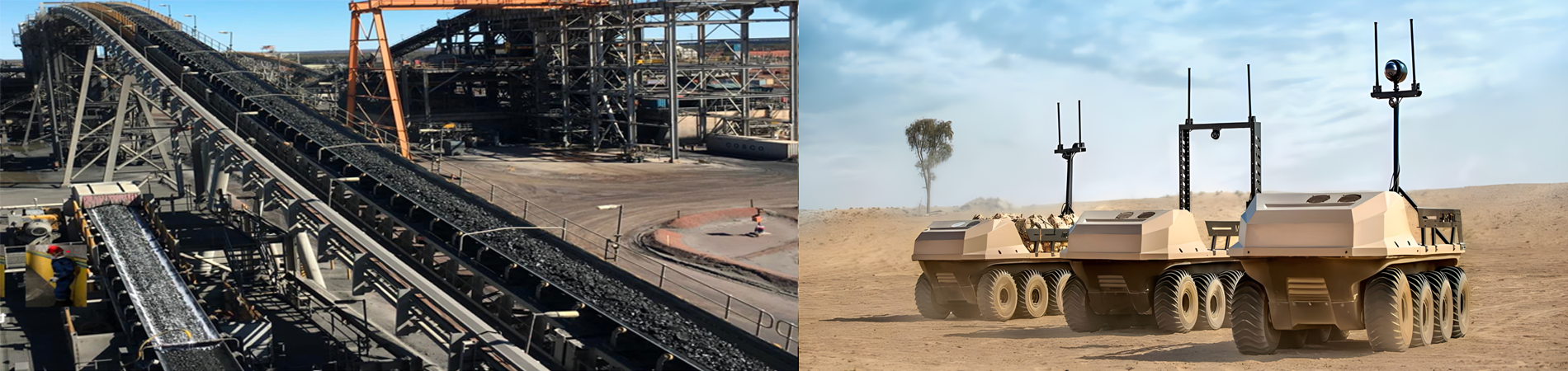

Applications

1. Industrial Inspection Robots High-precision remote-controlled robots and UGVs in chemical plants or power substations transmit real-time 4K infrared thermal imaging to control centers for accurate equipment monitoring and analysis. 2. Manipulator & Multi-Vehicle Control Millisecond-level command latency ensures safe robotic arm operation, while multiple UGVs in warehouses or industrial parks share HD maps, obstacle data, and task instructions seamlessly in real time. 3. Unmanned Mining & Excavation Autonomous excavators in mining areas simultaneously stream cabin video, cargo status, LiDAR point clouds, and multiple sensor feeds for full situational awareness. 4. Urban Autonomous Delivery Fleets Multi-vehicle coordination enables efficient, synchronized navigation and task management for unmanned delivery systems in city environments. 5. Emergency Response Robots Firefighting robots are remotely controlled in extreme conditions, with synchronous transmission of thermal imaging, gas sensor readings, and robotic arm feedback—even through high temperatures and dense smoke. — Let me know if you’d like this tailored for a specific audience, such as a presentation, technical document, or marketing material.



FDM-6805UG-applications


Specifications

GENERAL WIRELESS
Technology Wireless based on TD-LTE Technology Standards Communication 1T1R
1T2R
2T2R
Video Transmission 1080p HD video transmission, H.264/H.265 adaptive IP Data transmission Supports data transmission based on IP packets
Encryption ZUC/SNOW3G/AES (128) Optional Layer-2 Data Link Full duplex communication
Data Rate Max 100Mbps (Uplink and Downlink) Up & Down Ratio 2D3U/3D2U/4D1U/1D4U
Range UGV: 5-10KM Ground to ground (LOS)
UGV: 1-3KM Ground to ground (NLOS)		 Automatic Reconstruction Chain Automatic link re-establishment after link failure/ re-deploy the network after a link failure
Capacity 8nodes SENSITIVITY
MIMO 2×2 MIMO 1.4GHZ 20MHZ -102dBm
Transmitting Power 5watts 10MHZ -100dBm
Latency Air interface delay 5MHZ -96dBm
Modulation QPSK, 16QAM, 64QAM 600MHZ 20MHZ -102dBm
Anti-Jamming Frequency Hopping and Adaptive Modulation 10MHZ -100dBm
Bandwidth 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz 5MHZ -96dBm
Power Consumption 30Watts FREQUENCY OPTION
Power Input DC24V-DC27V 1.4Ghz 1420Mhz-1530MHz
Dimension 86*120*24.2mm 600Mhz 634Mhz-674Mhz
