China Moneypro FHSS MIMO Digital IP Module Transmitter For Video And Telemetry Data



Introducing the FDM-6800: High-Speed, Long-Range Wireless for Advanced Robotics

Meet the FDM-6800—a compact, high-performance 2×2 MIMO wireless module built for demanding robotics applications such as drones, UGVs, and autonomous platforms.

Key Features:

  • High Throughput: Up to 100 Mbps for seamless HD video, telemetry, and IP data transmission.
  • Exceptional Range: Up to 20 km (LOS) and 1–3 km (NLOS) for reliable beyond-line-of-sight operation.

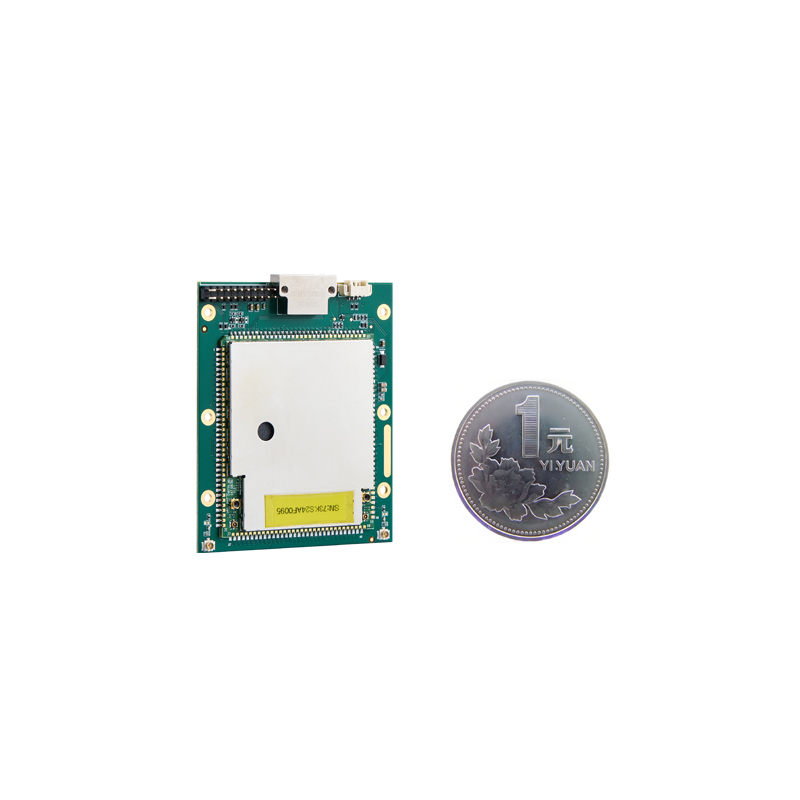

  • Low SWaP Design: Ultra-compact and lightweight (71×10×60 mm, 33 g) for easy integration into space-constrained systems.
  • Dual-Band Flexibility: Operates simultaneously in 600 MHz (566–678 MHz) and 1.4 GHz (1420–1530 MHz) bands, with user-adjustable frequency selection.
  • Advanced Interference Resistance: Utilizes Frequency Hopping Spread Spectrum (FHSS) with ≥300 hops/sec to maintain robust links in noisy or contested RF environments.
  • Simple Configuration: Easily set up and manage using IWAVE software, AT commands, or API controls.

Engineered for Resilience

The FDM-6800 employs high-speed IP star networking and rapid frequency hopping to deliver a stable, secure wireless IP link—even in complex or jammed settings. Whether you’re streaming HD video, transmitting telemetry, or sending critical data, this module ensures continuous and clear communication.

Perfect For:

  • Drone command & control
  • Unmanned ground vehicle (UGV) operations
  • Robotic platforms requiring low-latency, high-reliability links
  • Any application where size, weight, and interference resistance are critical

Small Size. Big Performance.

With its unmatched combination of speed, range, and ruggedness in a tiny form factor, the FDM-6800 redefines what’s possible for wireless connectivity in next-generation robotics.

Ready to integrate? Configure effortlessly via IWAVE, AT, or API commands.



Category:
Description


Features

SDR



Advanced Technologies for Dynamic Robotic Connectivity

Multi-Band Flexibility & Wide Frequency Range
Our patented hybrid SDR technology powers a versatile family of multi-band radios. The FDM-6800 is a dual-band IP transmitter operating on both 600MHz and 1.4GHz bands, with an optional 222MHz frequency range—giving you the freedom to choose the ideal frequency for your mission.

Frequency Hopping Spread Spectrum (FHSS)
Stay resilient in challenging environments. With high-speed frequency hopping at 300 hops/second, the FDM-6800 actively avoids interference, ensuring stable connectivity even in congested or jamming-prone conditions.

IP Star Networking
Built for dynamic operations, the FDM-6800 supports both point-to-point and point-to-multipoint networking. It delivers reliable communication with a line-of-sight range up to 20 km and non-line-of-sight capability up to 3 km—perfect for mobile robotic systems.

One GCS, Multiple Unmanned Platforms
Command and control with ease. In point-to-multipoint mode, stream high-quality video from several unmanned platforms to a single Ground Control Station (GCS). Simultaneously, control multiple UAVs, UGVs, or robotic units through real-time telemetry data.

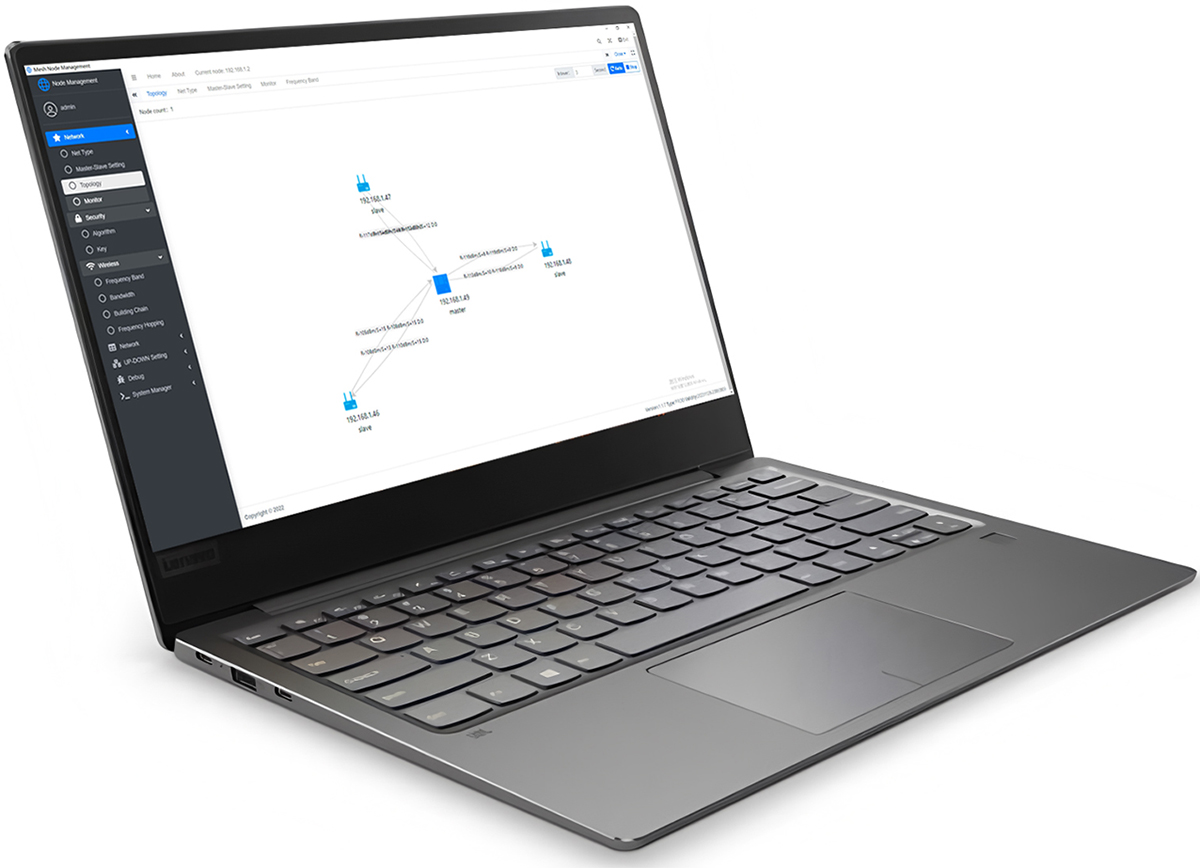

Easy Network Management

Intuitive Configuration
Set up and manage the FDM-6800 effortlessly using IWAVE management software, or through simplified AT and API command sets.

Real-Time Situational Awareness
Monitor signal strength (SNR/RSSI), node distance, and network health in real time for full operational visibility.

On-the-Fly Adjustments
Change frequency bands, enable or disable FHSS, and modify IP addresses seamlessly via the management interface.

Advanced Command Control
Use the detailed AT command set to configure encryption keys, frequency, bandwidth, check SNR, firmware version, baud rate, and more.

Key Features at a Glance

  • Dual-Band Operation: 566–678 MHz (600MHz) and 1420–1530 MHz (1.4GHz)
  • High Throughput: Up to 100 Mbps
  • 2×2 MIMO for enhanced signal reliability
  • Scalable Networking: One master node supports up to 7 slave nodes
  • SDR-Powered: Software-Defined Radio—the world’s smallest MIMO dual-band IP radio
  • Extended Range: Line-of-sight up to 20 km / Non-line-of-sight 1–3 km

Let me know if you’d like this tailored for a datasheet, website, or presentation.

mobile command center


Various Ports

team mobile wireless

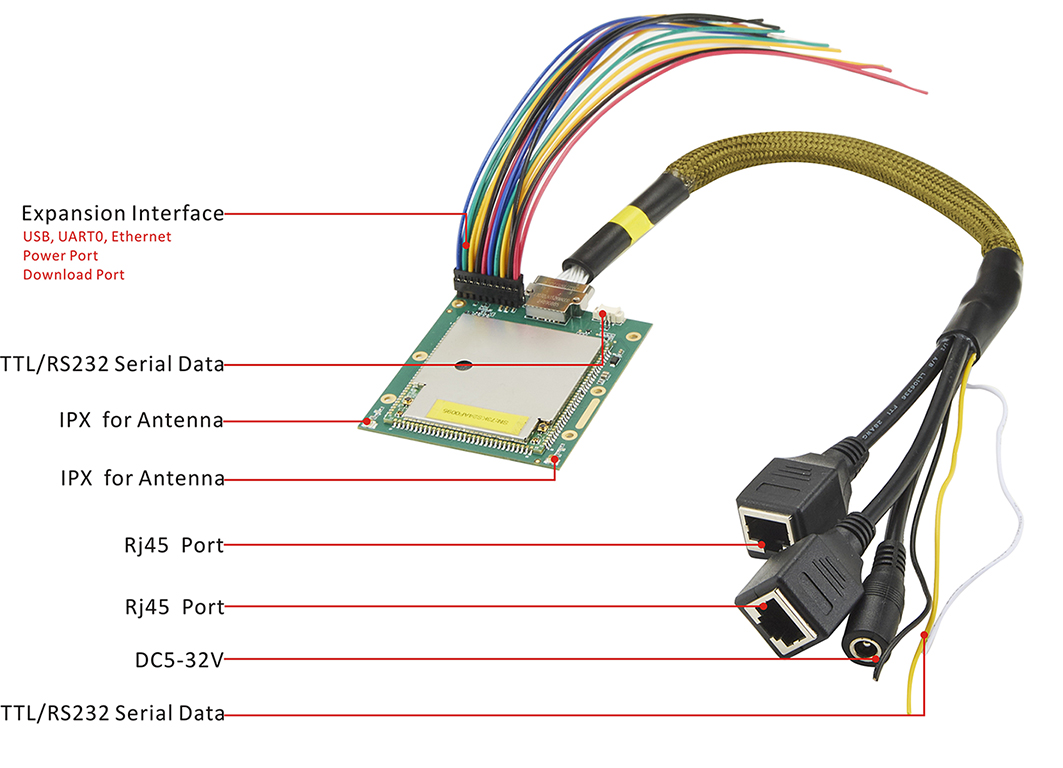

Versatile Connectivity

Connect a wide range of devices through multiple integrated interfaces:

  • RJ45 Ports – Directly link IP cameras, sensors, and onboard computers (Linux, Windows, Android, and more).
  • Serial Port – Interface with PTZ systems and flight controllers like Pixhawk.
  • USB Port – Use for debugging, sending AT commands, or configuring as a network or command port.

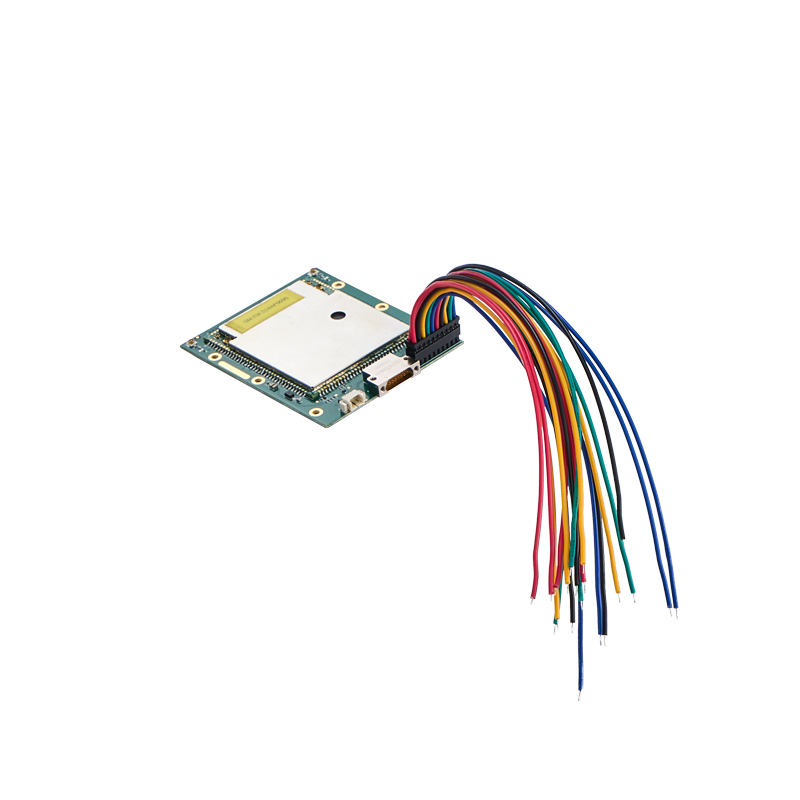

  • Expansion Port – A flexible 20-pin port for custom interfaces, microcontroller applications, downloading, power, and beyond.

Ready-to-Use Application

The FDM-6800 is a complete, out-of-the-box hardware and software solution. Built with patented mobile wireless broadband technology, it delivers:

  • Reliable, Low-Latency Links – Maintain high-throughput data transmission over extremely long distances.
  • Built-In Intelligence – Dynamically adapts to challenging RF environments to ensure continuous connectivity.
  • Optimized for Mobility – Designed for dynamic robotics and mobile applications where stable, far-reaching communication is critical.



data-link


Specifications

GENERAL

WIRELESS
TECHNOLOGY Star Network based on IWAVE proprietary time slot frame structure & waveform. COMMUNICATION 1T1R1T2R2T2R
ENCRYPTION ZUC/SNOW3G/AES(128) Optional Layer-2 DATA LINK Full duplex communication
DATE RATE Max 100Mbps(Uplink and Downlink) UP AND DOWN RATIO 2D3U/3D2U/4D1U/1D4U
RANGE 200mw RF Power: 20km(Air to ground) AUTOMATIC RECONSTRUCTION CHAIN Automatic link re-establishment after link failure/ re-deploy the network after a link failure
CAPACITY 8nodes SENSITIVITY
MIMO 2×2 MIMO 1.4GHZ 20MHZ
POWER 23dBm±2 (2w, 5w or 10w on request) 10MHZ
LATENCY End to end≤5ms-15ms 5MHZ
MODULATION QPSK, 16QAM, 64QAM 600MHZ 20MHZ
ANTI-JAM FHSS(Frequency Hop Spread Spectrum) 10MHZ
BANDWIDTH 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz 5MHZ
POWER CONSUMPTION 5Watts

FREQUENCY BAND
POWER INPUT DC5-32V 1.4Ghz 1420Mhz-1530MHz
DIMENSION 71*60*10mm 600Mhz 566Mhz-678Mhz
