China Moneypro FHSS MIMO Digital IP Module Transmitter For Video And Telemetry Data

China Moneypro Secure Wireless UGV/Drone Data Links for NLOS Communications



Introducing the FDM-66MN: The Most Advanced Broadband Digital Data Link for Mobile Robotics

Engineered for the next generation of unmanned systems, the FDM-66MN delivers secure, long-range wireless communication in the most demanding off-grid and disconnected environments.

Key Features:

  • Triple-Frequency Flexibility – Operates on 800MHz, 1.4GHz, or 2.4GHz bands, selectable via software for optimal performance and interference avoidance.
  • High-Throughput & Long Range – Enables reliable, real-time video and telemetry transmission between mobile units and control stations.
  • Scalable Control – Use IP-based serial communication to manage multiple robots or drones from a single station—ideal for drone swarms, UGVs, and unmanned vehicles.
  • Ultra-Compact Design – At just 60×55×5.7mm, it’s the smallest OEM wideband radio module available, perfect for integration into small robotic systems.
  • Built for Challenging Environments – Whether indoors, in tunnels, or complex outdoor settings, the FDM-66MN ensures robust connectivity when it matters most.

Ideal for short- to medium-range robotics applications, the FDM-66MN empowers your unmanned systems with secure, high-performance communication in a remarkably small form factor.



Category:
Description




Key Features

High-Speed Connectivity

  • Achieve uplink and downlink speeds of up to 30 Mbps.

Extended Range

  • Up to 3 km in non-line-of-sight (NLOS) or mobile environments.
  • Up to 15 km in air-to-ground line-of-sight conditions.
  • Expandable range with optional external RF amplifiers.

Advanced Security

  • Proprietary waveforms combined with AES 128-bit encryption for secure communications.

Seamless Integration

  • Standard interfaces and protocols for easy compatibility.
  • Three Ethernet ports for connecting external IP devices.
  • Available as an OEM module or a standalone connectivity solution.

Developer-Friendly API

  • Comprehensive API documentation provided for cross-platform integration.

Low Latency Performance

  • Minimal transmission delay between slave and master nodes.

Exceptional Sensitivity

  • Receiver sensitivity of -103 dBm/10 MHz for reliable signal reception.

Robust Interference Resistance

  • Features frequency hopping spread spectrum (FHSS), adaptive modulation, and adaptive RF power control for superior noise and interference immunity.

Intuitive Management

  • Configure and monitor via install-based software or a browser-based WebUI.
  • Remotely or locally adjust parameters, network settings, security, and view real-time metrics like SNR, RSSI, and distance.

Improved for clarity and engagement:

  • Structured with clear headings and bullet points for readability.
  • Simplified technical terms where possible.
  • Emphasized benefits and ease of use.
  • Used active language to create a more dynamic and persuasive tone.

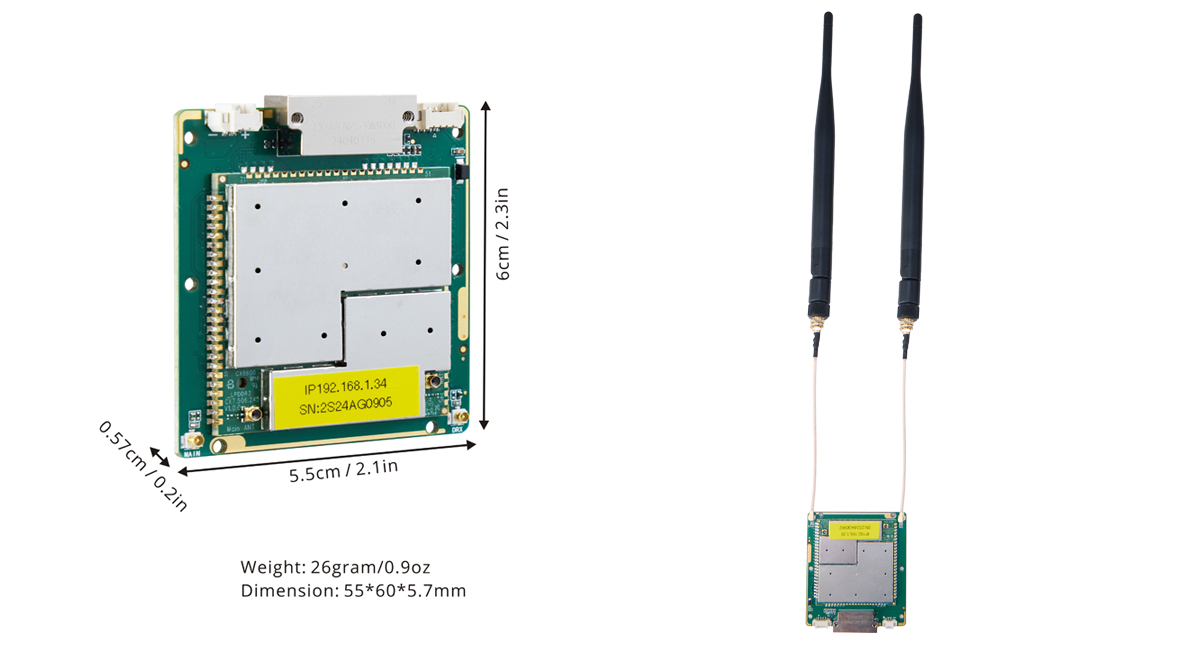

dimension-of-uav-adhoc-network



Introducing the FDM-66MN: The World’s Smallest OME Radio Module Meet the FDM-66MN—an ultra-compact digital video transceiver designed for applications where every gram and millimeter counts. Measuring just 60 x 55 x 5.7 mm and weighing only 26 grams, this miniature module is perfect for small drones, UGVs, and other space- and weight-sensitive platforms. Key Features: 🔹 Adjustable Transmitting Power Easily tailor output with software-selectable power levels ranging from -40dBm to 25±2dBm. 🔹 Rich Interface Options Stay connected with: • 3x Ethernet ports • 2x full-duplex RS232 ports • 2x power input ports • 1x USB port for debugging 🔹 Wide Power Input Range Supports DC input from 5V to 32V, protecting your system from accidental voltage mismatches and burnout. — Ready to minimize size without compromising performance? The FDM-66MN delivers powerful connectivity in the smallest form factor available.

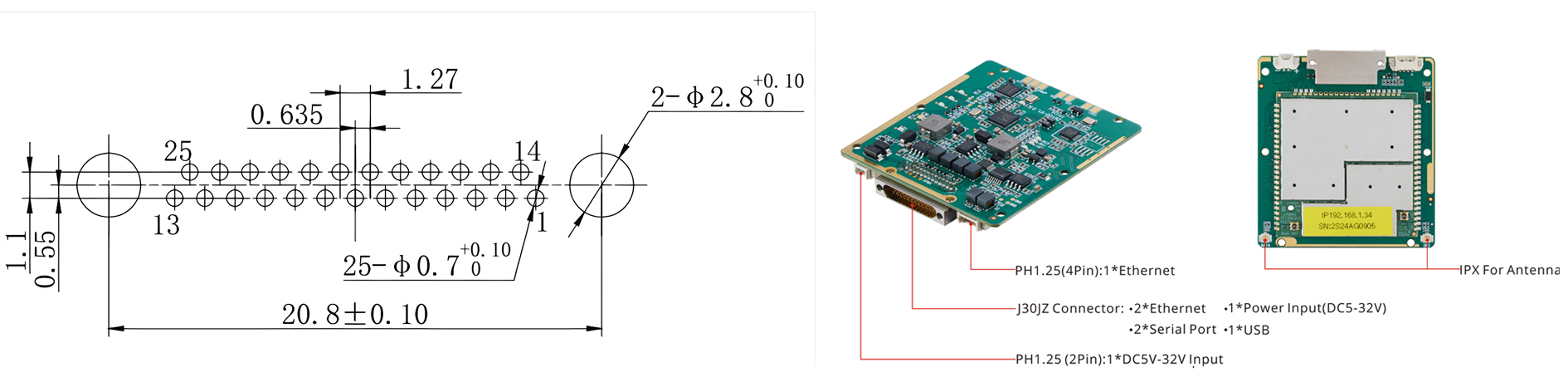

Interface Definition

FDM-66MN-interface-definition
J30JZ Definition:
Pin Name Pin Name Name Pin
1 TX0+ 10 D+ 19 COM_RX
2 TX0- 11 D- 20 UART0_TX
3 GND 12 GND 21 UART0_RX
4 TX4- 13 DC VIN 22 BOOT
5 TX4+ 14 RX0+ 23 VBAT
6 RX4- 15 RX0- 24 GND
7 RX4+ 16 RS232_TX 25 DC VIN
8 GND 17 RS232_RX
9 VBUS 18 COM_TX
PH1.25 4PIN Definition:
Pin Name
1 RX3-
2 RX3+
3 TX3-
4 TX3+




Application The FDM-66MN is a compact, software-defined radio module designed for reliable long-range communication in unmanned systems, including BVLOS drones, UGVs, robotics, UAS, and USVs. It supports high-speed, full-duplex transmission of multiple HD video streams alongside control and telemetry data, even in challenging non-line-of-sight environments such as dense urban areas. With an optional external power amplifier, the module achieves communication ranges of up to 50 km, maintaining over 20 km of stable connectivity in crowded signal environments.



UAV Swarm Communication link


Specification

GENERAL
Technology Wireless base on TD-LTE Wireless technology standard
Encryption ZUC/SNOW3G/AES(128/256) OptionalLayer-2
Data Rate 30Mbps(Uplink and Downlink)
Adaptive average distribution of system data rate
Support users to set speed limit
Range 10km-15km(Air to ground)
500m-3km(NLOS Ground to ground)
Capacity 8nodes
Bandwidth 1.4MHz/3MHz/5MHz/10MHz/20MHz
Power 25dBm±2 (2w or 10w on request)
All nodes automatically adjust the transmitting power
Modulation QPSK, 16QAM, 64QAM
Anti-Jamming Automatically Cross-Band frequency hopping
Power Consumption Average: 4-4.5Watts
Max: 8Watts
Power Input DC5V-32V
Receiver Sensitivity Sensitivity(BLER≤3%)
2.4GHZ 20MHZ -99dBm 1.4Ghz 10MHz -91dBm(10Mbps)
10MHZ -103dBm 10MHz -96dBm(5Mbps)
5MHZ -104dBm 5MHz -82dBm(10Mbps)
3MHZ -106dBm 5MHz -91dBm(5Mbps)
1.4GHZ 20MHZ -100dBm 3MHz -86dBm(5Mbps)
10MHZ -103dBm 3MHz -97dBm(2Mbps)
5MHZ -104dBm 2MHz -84dBm(2Mbps)
3MHZ -106dBm 800Mhz 10MHz -91dBm(10Mbps)
800MHZ 20MHZ -100dBm 10MHz -97dBm(5Mbps)
10MHZ -103dBm 5MHz -84dBm(10Mbps)
5MHZ -104dBm 5MHz  -94dBm(5Mbps)
3MHZ -106dBm 3MHz -87dBm(5Mbps)
3MHz -98dBm(2Mbps)
2MHz -84dBm(2Mbps)
FREQUENCY BAND
1.4Ghz 1427.9-1447.9MHz
800Mhz 806-826MHz
2.4Ghz 2401.5-2481.5 MHz
WIRELESS
Communication Mode Unicast, multicast, broadcast
Transmission Mode Full Duplex
Networking Mode Dynamic Routing Automatically updat routes based on real-time link conditions
Network Control State Monitoring Connection status /rsrp/ snr/distance/ uplink and downlink throughput
System Management WATCHDOG: all system-level exceptions can be identified, automatic reset
Re-transmission L1 Determine whether to retransmit based on the different data being carried.  (AM/UM); HARQ retransmits
L2 HARQ retransmits
INTERFACES
RF 2 x IPX
Ethernet 3xEthernet
Serial Port 2x RS232
Power Input 2*Power Input(alternative)
CONTROL DATA TRANSMISSION
Command Interface AT command configuration Support VCOM port/UART and other ports for AT command configuration
Configuration Management Support configuration via WEBUI, API, and software
Working Mode TCP server mode
TCP client mode
UDP mode
UDP multicast
MQTT
Modbus		 ●When set as a TCP server, the serial port server waits for computer connection.
●When set as a TCP client, the serial port server actively initiates a connection to the network server specified by the destination IP.
●TCP server, TCP client, UDP, UDP multicast, TCP server/client coexistence, MQTT
Baud Rate 1200, 2400, 4800, 7200, 9600, 14400, 19200, 28800, 38400, 57600, 76800, 115200, 230400, 460800
Transmission Mode Pass-through mode
Protocol ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS, MQTT, Modbus TCP, DLT/645
MECHANICAL
Temperature -40℃~+80℃
Weight 26grams
Dimension 60*55*5.7mm
Stability MTBF≥10000hr
