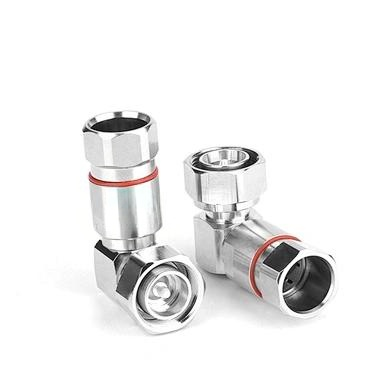

Product Overview: 4.3-10 Male Right Angle Connector for 1/2 Feeder Cable
In the world of telecommunications and RF engineering, the quality of your connectors directly impacts signal integrity and system reliability. The 4.3-10 male right angle connector for 1/2 feeder cable stands out as a robust solution designed for demanding environments. This connector combines precision engineering with durable materials to ensure low loss and high performance across a broad frequency range. Whether you are deploying base station antennas, distributed antenna systems (DAS), or wireless infrastructure, this connector offers a reliable interface that minimizes installation stress while maximizing signal quality. Its right-angle design is particularly advantageous in tight spaces, reducing cable bending stress and simplifying routing. Let us explore the specifications, material choices, and electrical characteristics that make this connector a preferred choice for professionals.
Material Composition and Plating
Durability and signal integrity begin with the materials used. The 4.3-10 male right angle connector for 1/2 feeder cable features high-grade components that resist corrosion and ensure consistent electrical performance. Below is a detailed breakdown of the materials and platings:
| Component | Material | Plating |
|---|---|---|
| Center Contact | Tin-bronze | Silver Plated |
| Outer Contact | Tin-bronze | Silver Plated |
| Body | Brass | Silver Plated |
| Dielectric | PTFE | N/A |
| Gasket | Silicon Rubber | N/A |
| Nut | Brass | Nickel Plated |
Silver plating on the contacts and body provides excellent electrical conductivity and oxidation resistance, while the nickel-plated nut ensures secure, repeated tightening without galling. PTFE dielectric offers stable performance over temperature and frequency, making the 4.3-10 male right angle connector for 1/2 feeder cable suitable for both indoor and outdoor installations.
Electrical Characteristics of the 4.3-10 Male Right Angle Connector for 1/2 Feeder Cable
The electrical performance of this connector is engineered to meet stringent requirements for modern RF systems. Every parameter has been optimized to minimize signal degradation and passive intermodulation (PIM). Key electrical specifications include:
| Characteristic | Value |
|---|---|
| Impedance | 50 Ohm |
| Frequency Range | DC to 2.5 GHz |
| Insulation Resistance | ≥ 10,000 MΩ |
| Contact Resistance (Center Contact) | ≤ 5 MΩ |
| Contact Resistance (Outer Contact) | ≤ 1.0 MΩ |
| Dielectric Strength | 2500 V rms |
| Working Voltage | 1400 V rms |
| Insertion Loss (DC to 3 GHz) | ≤ 0.10 dB |
| VSWR (DC to 3.0 GHz) | ≤ 1.20 |
| PIM (2 × 43 dBm) | ≤ -160 dBc |
These specifications confirm that the 4.3-10 male right angle connector for 1/2 feeder cable delivers low insertion loss and excellent voltage standing wave ratio (VSWR) across its operating band. The ultra-low PIM rating makes it ideal for high-reliability networks where interference must be minimized.
Mechanical and Environmental Durability
Beyond electrical performance, this connector is built to withstand harsh conditions. It is designed for repeated use without degradation, ensuring long-term value. Key environmental and mechanical ratings include:
| Parameter | Value |
|---|---|
| Durability (Matings) | ≥ 500 cycles |
| Temperature Range | -40°C to +85°C |
| RoHS Compliance | Yes |
The wide temperature range allows deployment from arctic climates to desert heat, while the 500-cycle mating durability ensures the 4.3-10 male right angle connector for 1/2 feeder cable can survive maintenance and reconfiguration without performance loss. Its RoHS compliance also meets global environmental standards, making it suitable for use in regulated markets.
Why Choose the Right Angle Design?
The right angle configuration of this connector is not just a convenience—it is a functional advantage. In confined spaces such as equipment cabinets, cable trays, or antenna mounts, a straight connector may create excessive cable strain or require sharp bends that degrade signal quality. The 4.3-10 male right angle connector for 1/2 feeder cable allows for a 90-degree cable exit, reducing bending radius and mechanical stress on the cable and connector interface. This design preserves the low VSWR and insertion loss characteristics even in tight installations, ensuring that system performance is maintained.
Conclusion
When selecting a connector for critical RF applications, the 4.3-10 male right angle connector for 1/2 feeder cable offers a compelling combination of material quality, electrical precision, and mechanical robustness. Its silver-plated contacts and body ensure low resistance and high conductivity, while the PTFE dielectric provides stable performance across temperature and frequency. With an impedance of 50 ohms, a frequency range up to 2.5 GHz, and ultra-low PIM, it meets the demands of modern wireless infrastructure. The right angle design further enhances its utility by simplifying installation and protecting cable integrity. Whether you are upgrading an existing network or building a new system, this connector delivers the reliability and performance required for long-term success. Choose the 4.3-10 male right angle connector for 1/2 feeder cable for your next project and experience the difference that quality craftsmanship makes.
