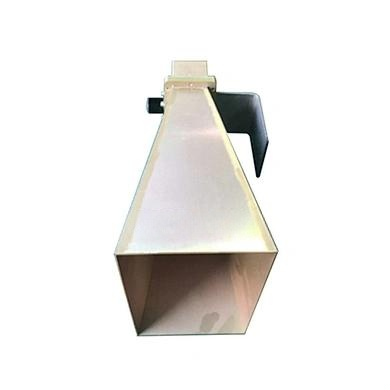

The 6-18GHz Horn Antenna: A High-Stability Powerhouse for Critical RF Applications
nnEngineered for the demands of professional RF environments, the 6-18GHz Horn Antenna stands as a premier solution for applications spanning industrial communication, precision microwave testing, and reliable RF signal transmission. This device, recognized as a high-stability horn antenna, delivers a compelling combination of wideband performance, rugged construction, and exceptional power handling. Whether deployed in a laboratory setting or an industrial workshop, its core benefits are designed to address the most challenging RF requirements without compromise.nnThe antenna’s critical performance parameters, including gain, beamwidth, and power capacity, are where its value truly shines. Let’s examine the full specifications:nn| Parameter | Value |n| — | — |n| Operating Frequency | 6-18 GHz |n| VSWR | 10 dBi |n| Polarization | Linear |n| 3dB Beamwidth | 10°-40° |n| Maximum Power Capacity | 50W |n| Reference Dimensions | 115mm × 87mm × 195mm (Excluding mounting bracket) |n| Operating Temperature | -55°C to +75°C |n| Storage Temperature | -65°C to +85°C |n| Connectors | SMA |n| Mount | Bend Plate Mounting |n| Mounting Accessories | Includes mounting bend plate and screws |n| Color | Gray / Military Green / Black |n| Material | Aluminum Alloy |nn
Superior Performance in a Compact Package
nnThis high-stability horn antenna delivers impressive gain figures, exceeding 10 dBi across its entire 6-18 GHz frequency range. This high gain, coupled with a consistently low voltage standing wave ratio (VSWR) of under 1.8, ensures maximum signal efficiency and minimal reflection loss. For engineers working on microwave links or antenna pattern measurements, this translates directly into stronger signal reception and more reliable data transmission. The linear polarization and adjustable 3dB beamwidth of 10° to 40° provide focused energy directionality, ideal for point-to-point communication systems and targeted testing procedures.nn
Designed for High-Power Environments
nnOne of the standout features of this antenna is its classification as a 50W high-power antenna. Capable of handling a maximum power capacity of 50 watts, it easily accommodates the demands of high-power RF amplifiers and transmitters. This robust power handling capability is essential for avoiding signal interruption, equipment overheating, or permanent damage during sustained high-power operations. For professionals operating in broadcasting, industrial heating, or high-energy physics experiments, this antenna provides the necessary headroom to operate safely and effectively.nn
Rugged Construction for Harsh Conditions
nnBuilt from high-strength aluminum alloy, the antenna is both exceptionally durable and lightweight. Its compact dimensions of 115mm x 87mm x 195mm (excluding the mounting bracket) make it easy to deploy in tight enclosures, equipment racks, or field-deployable units. The aluminum alloy construction also offers excellent corrosion resistance and anti-aging properties, ensuring long-term reliability. Furthermore, its wide operating temperature range of -55°C to +75°C and storage temperature range of -65°C to +85°C mean it can endure extreme environments—from arctic cold to desert heat and high-humidity conditions—without degradation. This resilience makes it a trusted choice for outdoor installations, industrial automation, and aerospace applications.nn
Effortless Integration and Versatile Design
nnEase of use is central to the antenna’s design. It comes equipped with a universal SMA mount, a standard interface compatible with the vast majority of RF test equipment, analyzers, and transceivers. The package includes a bend plate mounting bracket and all necessary screws, allowing for rapid out-of-the-box installation. This reduces deployment time and complexity, even for non-specialized personnel. Finally, the availability in three distinct colors—gray, military green, and black—provides flexibility for aesthetic integration with different scenarios, from laboratory instrumentation to military-grade systems.nnIn conclusion, the 6-18GHz Horn Antenna represents a perfect synthesis of high-stability horn antenna performance, 50W high-power antenna capability, and rugged, user-friendly design. By offering exceptional gain, low VSWR, broad temperature tolerance, and simple installation, it fully meets the high-performance and high-reliability standards demanded by today’s professional RF fields. Whether for critical testing, robust communication, or industrial signal transmission, this antenna delivers consistent, trustworthy results.
