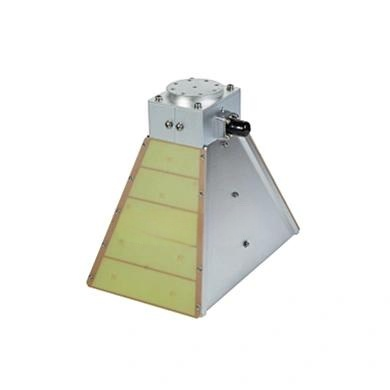

Ultra-Wideband Precision: The 1-18GHz Horn Antenna in Modern RF Systems
In the rapidly evolving world of RF engineering, the ability to capture and transmit clean signals across a broad spectrum is non-negotiable. The 1-18GHz Horn Antenna is not just another component; it is a cornerstone solution for professionals who demand versatility and reliability. From RF testing to radar signal processing, this antenna has been engineered to thrive in the most demanding scenarios. Its ultra-wide frequency coverage from 1 to 18 GHz sets it apart as a preferred model among wideband horn antennas, allowing it to seamlessly adapt to the transmission and reception needs of multi-band signals. Whether you are debugging a communication system or analyzing signal propagation, this antenna ensures you are equipped with a tool that meets the highest standards of performance and durability.
The Engineering Behind the 1-18GHz Horn Antenna
When it comes to antenna design, polarization and gain are critical parameters. This model adopts a Linear Polarization Horn Antenna design, which is ideal for applications requiring controlled wave propagation and minimized cross-polarization interference. Combined with a stable gain of >6 dBi and a typical VSWR of <2.0, the antenna effectively reduces signal reflection and interference. This ensures transmission efficiency and accuracy even in the most complex electromagnetic environments. Engineers will appreciate how this consistent performance supports precise measurements and reliable data transfer.
Another standout feature is the maximum power capacity of 100W. This capability meets the requirements of both medium and high-power applications, making the antenna suitable for scenarios ranging from laboratory testing to field deployment. Whether used with signal generators or power amplifiers, the antenna handles the load without compromising signal integrity.
Robust Construction: Durability Meets Functionality
The 1-18GHz Horn Antenna is built to last. Constructed from high-strength aluminum alloy, it strikes an ideal balance between light weight and durability. This material choice ensures that the antenna can withstand physical stresses without adding unnecessary weight to your setup. With reference dimensions of ≤250 mm × 160 mm × 212 mm, the unit features a compact structure that does not occupy excessive installation space. This compactness is a significant advantage in crowded RF labs or field installations.
Equipped with an N-type side-feed connector and bend plate mounting components, the antenna facilitates easy installation and strong compatibility with various systems. The N-type connector is a standard in RF equipment, known for its low loss and robust performance up to 18 GHz. Additionally, the bend plate mounting method simplifies orientation adjustments, allowing engineers to achieve optimal alignment swiftly.
Environmental Resilience: Operating in Extreme Conditions
Reliability in harsh environments is a hallmark of quality RF equipment. The 1-18GHz Horn Antenna operates effectively across a wide temperature range, from -55°C to +75°C. It also withstands storage temperatures from -65°C to +85°C. This thermal resilience allows it to stably cope with extreme industrial temperatures, whether in high-heat desert testing or cold-climate monitoring stations. The antenna’s design ensures that performance parameters remain consistent, minimizing thermal drift and ensuring accurate results over time.
Application Spectrum: Where This Antenna Excels
The versatility of this antenna makes it a valuable asset across multiple professional fields. In RF testing and measurement, its ultra-wide bandwidth and linear polarization support comprehensive spectrum analysis and antenna characterization. For radar signal processing, the antenna enhances detection capabilities by maintaining gain stability across the operating band. In communication system debugging, its high power capacity and low VSWR ensure that transmitted signals are clean and efficient, reducing retries and boosting system throughput.
Technical Specifications at a Glance
Below are the key parameters of the 1-18GHz Horn Antenna, presented in a structured format for easy reference.
| Parameter | Value |
| — | — |
| Operating Frequency | 1-18 GHz |
| VSWR | 6 dBi |
| Polarization | Linear |
| 3dB Beamwidth | 15°-95° |
| Maximum Power Capacity | 100W |
| Reference Dimensions | ≤250 mm × 160 mm × 212 mm |
| Operating Temperature | -55°C to +75°C |
| Storage Temperature | -65°C to +85°C |
| Connector Type | N-type (side feed) |
| Mounting Method | Bend plate mounting |
| Mounting Accessories | Includes mounting plate and screws |
| Color | Silver gray |
| Material | Aluminum alloy |
Conclusion: The Ultimate Choice for Wideband Applications
The 1-18GHz Horn Antenna emerges as a powerful, reliable, and versatile solution for professionals who do not compromise on signal quality. Its ultra-wide bandwidth, linear polarization, and high power handling make it indispensable for RF testing, radar systems, and communication networks. The rugged aluminum alloy construction and compact design ensure it fits seamlessly into any setup while withstanding extreme environmental conditions. For engineers and technicians seeking performance that meets rigorous standards, this antenna delivers excellence. Whether your work involves high-frequency measurement or robust field deployment, the 1-18GHz Horn Antenna is engineered to exceed expectations.
