Optimized Triplexer Combiner: The Key to Robust Multi-Band RF Signal Integration
nnIn the rapidly evolving landscape of modern telecommunications, the ability to seamlessly combine multiple frequency bands into a single, high-performance signal path is critical. The Triplexer Combiner stands out as a sophisticated RF device engineered for this precise purpose. Designed for the demanding 80-1000MHz spectrum, this 4 into 1 combiner integrates three distinct bands—136-174MHz, 380-470MHz, and 700-900MHz—into a unified output. This capability is not merely a convenience; it is a fundamental requirement for advanced infrastructure such as 5G base stations, multi-band emergency communication networks, and any system where space, reliability, and signal purity are paramount.nn
Unpacking the Technical Excellence of the Triplexer Combiner

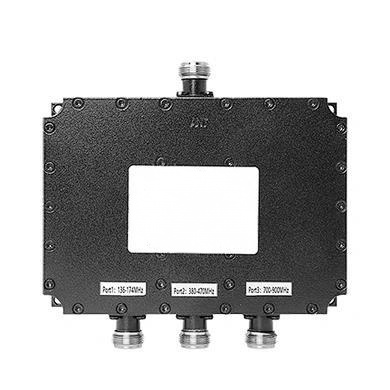

nnThe core value of any RF combiner lies in its ability to merge signals without compromising quality. This device achieves this through a combination of robust engineering and precise electrical design. It utilizes three dedicated ports, each optimized for a specific sub-band, ensuring that signals from different frequency ranges are combined with minimal interference. The practical implications are significant: a single antenna system can now handle multiple services, from public safety radios to cellular data, reducing tower loading and installation complexity.nn
Electrical Performance That Sets the Standard
nnThe performance metrics of this Triplexer Combiner are designed to meet the rigorous demands of both outdoor broadcast and critical communication links. Key parameters include ultra-low insertion loss, ensuring that the power of your transmitted signal is preserved, and high isolation to prevent cross-talk between bands. The following table details the critical specifications:nn| Parameter | Value |n| :— | :— |n| Frequency Range | 136-174 MHz / 380-470 MHz / 700-900 MHz |n| Insertion Loss | ≤ 0.4 dB |n| Voltage Standing Wave Ratio (VSWR) | ≤ 1.25 |n| Isolation | ≥ 30 dB |n| Impedance | 50 Ω |n| Input Power (Average) | 200 W |n| Intermodulation | ≤ -155 dBc (2 tones × 20W) |n| DC/AISG By-pass | Yes (Max. 2.5A) |n| Lightning Protection | 3 kA (10/350 µs pulse) |nnThis table clarifies how the device excels in preserving signal integrity. The Triplexer Combiner ensures that a high-power signal of 200 watts average is processed with exceptional linearity, as evidenced by the intermodulation specification of less than -155 dBc. This is crucial for maintaining signal clarity in dense frequency environments.nn
Robust Design for Demanding Environments
nnDeploying RF equipment outdoors requires more than just electrical excellence; it requires physical resilience. This combiner is engineered to withstand the elements, making it a truly versatile component for any installation.nn
Environmental Hardiness and Mechanical Integrity
nnThe unit features a rugged construction rated to IP67 standards. This ensures complete protection against dust ingress and temporary immersion in water, making it ideal for rooftop, tower, or remote site installations. Furthermore, its wide operating temperature range of -40°C to +65°C guarantees reliable performance in extreme climates, from arctic winters to desert summers. The use of N-Female connectors is a deliberate choice for professional applications, offering a secure, weather-resistant connection that can handle high power levels and frequent mating cycles without degradation.nn
Practical Applications and Integration Scenarios
nnThe versatility of this Triplexer Combiner makes it an indispensable tool for network operators and system integrators. Its primary application is in consolidating multi-band antennas for 5G and LTE infrastructure. By combining separate band-specific feeds into one, operators can significantly reduce the physical footprint of their base stations. Another critical use is in multi-band emergency communication systems. Here, the combiner allows for a single antenna to support VHF, UHF, and 800 MHz public safety networks simultaneously, ensuring first responders maintain constant communication without needing multiple antennas. The high isolation and low intermodulation are particularly vital in these scenarios to prevent interference between critical channels.nn
Unmatched Reliability and Signal Fidelity
nnIn conclusion, the Triplexer Combiner is more than a simple connector; it is a precision instrument that solves the complex challenge of multi-band signal management. Its combination of wide frequency coverage, low insertion loss, high power handling, and robust outdoor construction makes it a top-tier choice for modern RF systems. By delivering superior intermodulation performance and incorporating essential features like lightning protection and DC/AISG bypass, this combiner ensures that your network operates with the highest reliability and signal fidelity. Whether upgrading a 5G base station or building a resilient public safety network, investing in this high-performance combiner is a strategic decision for optimal long-term performance.
