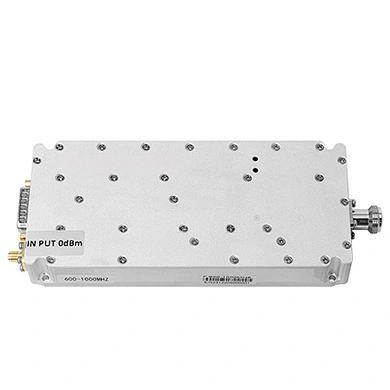

Unmatched Performance in RF: The Ultra-Wideband Power Amplifier DDS Module
n
In the rapidly evolving landscape of RF technology, finding a component that seamlessly combines power, precision, and reliability is paramount. The Ultra-Wideband 600–1000MHz 50W Power Amplifier DDS Module, engineered with a Class AB GaN design, emerges as a definitive solution for demanding applications. This module is not merely a component; it is a powerhouse designed to elevate communication systems, scientific research, and testing environments to new heights. Its robust construction and advanced features make it an excellent choice in the RF field, offering a blend of performance and convenience that is hard to match.
n
Driven by the need for high-efficiency signal amplification, this module leverages cutting-edge Gallium Nitride (GaN) technology. The Class AB GaN architecture ensures exceptional power density and thermal efficiency, translating to lower operational energy costs and sustained stability during prolonged use. Whether you are enhancing base station coverage, conducting sophisticated laboratory experiments, or deploying field-testing equipment, this module provides the consistent, high-quality output required for success.
nn
Core Technical Specifications and Performance Data
n
The module’s capabilities are defined by its exacting technical parameters. To ensure transparent and precise communication of its performance, all critical specifications are detailed in the structured tables below. This data underpins its reputation as a reliable and high-performing solution for modern RF challenges.
nn
| Parameter | Unit | Min | Typ | Max | Symbol |
|---|---|---|---|---|---|
| Operating Frequency | MHz | 600 | – | 1000 | FO |
| Operating Bandwidth | MHz | – | 1300 | – | BW |
| Peak Output Power @ CW Signal | W | – | 50 | – | PSAT |
| Input Power | dBm | – | -2 ± 3 | – | PIN |
| Maximum Input Power (Without Damage) | dBm | – | – | 5 | PIN, MAX |
| Power Gain @ Input Power 0dBm | dB | – | 48 ± 3 | – | GP |
| Gain Flatness @ Input Power 0dBm | dB | – | – | ±3 | ΔGP |
| Efficiency | % | – | 22 | – | EFF |
| Harmonics 1 to N @ Output Power 40W | dBc | 10 | – | – | HN |
| Spurious Level | dBc | 60 | – | – | Spur |
| Input VSWR | dB | – | – | 2:1 | VSWR |
| Output VSWR | dB | – | – | 2:1 | VSWR |
| Operating Voltage | V | 28 | – | 30 | VDC |
| Current Consumption @ Output Power 40W | A | – | 6.5 | – | IDC |
nn
Environmental and Operational Boundaries
n
| Parameter | Unit | Rating | Symbol |
|---|---|---|---|
| Operating Case Temperature | °C | -20 to 85 | TC |
| Storage Temperature | °C | -40 to 105 | TSTG |
| Relative Humidity (Non-condensing) | RH | 95% | – |
nn
Operating Voltage and Monitoring Interfaces
n
| Parameter | Unit | Nominal Voltage | Voltage Accuracy | Symbol |
|---|---|---|---|---|
| Operating Voltage | V | 28–30 | ± 2% | VDC |
| HPA Enable Voltage | V | – | – | – |
| Current Monitor Voltage | V | – | – | – |
| Temp Monitor Voltage | V | Output Voltage 0.75V @ 25°C (1°C / 0.01V) | – | – |
nn
Mechanical Dimensions and Connectivity
n
| Parameter | Unit | Typ |
|---|---|---|
| Mass | kg | 0.75 |
| Dimension | mm | 170 x 77 x 24.5 (Without Connectors) |
| RF Connector (Input) | – | MCX Female |
| RF Connector (Output) | – | N Female |
| DC Connector | – | Through core capacitor, Male: Supply |
| Cooling | – | External Heat-sink Required |
nn
Why This Module is an Excellent Choice in the RF Field
n
The compact form factor (170 x 77 x 24.5mm) and light weight (0.75kg) of this module make it exceptionally versatile for both stationary lab setups and mobile field operations. Its integration is straightforward, featuring a DC input for simple power connectivity and an external heatsink design that effectively manages thermal output. This proactive cooling strategy ensures the GaN amplifier operates within its optimal temperature range, significantly extending its operational lifespan.
n
From communication base station infrastructure to intricate wireless signal testing and academic research, this module delivers consistent results. The built-in DDS signal generator provides rapid and precise signal creation, making it an invaluable asset for complex RF tasks that demand accuracy. The choice of this module means investing in a device that reduces energy waste while maximizing output, a critical factor in today’s performance-driven and cost-conscious environments.
n
In conclusion, for professionals who require a reliable, efficient, and powerful solution, this ultra-wideband power amplifier module stands out as an exceptional choice in the RF field. Its high power output, advanced GaN efficiency, and thorough design for real-world application make it a top contender for any serious RF engineering project. Don’t settle for less; elevate your RF capabilities with this advanced module and experience the difference in performance and reliability.
