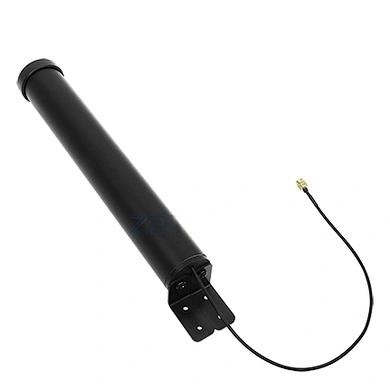

Outdoor 5.8G High Gain Antenna Outdoor: Your Ultimate Solution for Drone Signal Interference
nn
Are you still struggling with unstable interference signals from drones? Our outdoor 5.8G high gain antenna outdoor is the perfect solution you’ve been searching for. Unlike standard omni-directional antennas, this directional antenna concentrates the signal in a specific direction, significantly boosting signal strength and enhancing interference effectiveness. Operating in the 5.8G frequency band, it provides a frequency range of 5750-5850 MHz and a gain of up to 10±1 dBi, allowing precise coverage of your target area. With this antenna, drone interference is no longer a challenge. It delivers exceptional electrical performance with a VSWR not exceeding 1.5 and a front-to-back ratio greater than or equal to 15 dB, effectively suppressing rear signal interference and ensuring stable transmission. The maximum input power is 50W, featuring DC grounding lightning protection for reliable operation in complex environments. Mechanically, it includes an SMA male connector paired with an RG58/U cable. The reflector is crafted from aluminum, and the antenna cover is made of ABS, capable of withstanding wind speeds up to 60m/s. The operating temperature range spans from -40°C to +90°C, making it suitable for harsh outdoor conditions. Choose our outdoor 5.8G high-gain directional antenna to provide robust support for your drone jamming tasks, enabling effortless control and efficient interference.
nn
Key Electrical and Mechanical Specifications
nn
| Parameter | Value |
|---|---|
| Model No. | MOP-DYA-5.8G |
| Frequency Range (MHz) | 5750–5850 |
| Gain (dBi) | 10±1 |
| Polarization | Vertical |
| VSWR | ≤1.5 |
| Front to Back Ratio (dB) | ≥15 |
| Maximum Input Power (W) | 50 |
| Impedance (Ω) | 50 |
| Lightning Protection | DC Ground |
| Connector Type | SMA Male |
| Dimensions (mm) | 300 (length) |
| Cable | RG58/U, 300mm |
| Effective Wind Area (m²) | ≤0.2 |
| Rated Wind Velocity (m/s) | 60 |
| Reflector Material | Aluminum |
| Radome Material | ABS |
| Operating Temperature (°C) | -40 to +90 |
| Mounting Hardware (mm) | φ35 to φ50 |
nn
Why This Outdoor 5.8G High Gain Antenna Outdoor Stands Out
nn
This outdoor 5.8G high gain antenna outdoor is engineered for precision and reliability. Its directional design minimizes signal loss by focusing energy exactly where it’s needed, unlike omni-directional alternatives that scatter signals. The high gain of 10±1 dBi ensures strong penetration through obstacles, while the low VSWR of ≤1.5 guarantees minimal reflected power, reducing interference risks. The front-to-back ratio of ≥15 dB further isolates unwanted rear signals, making it ideal for targeted applications like drone jamming.
nn
Robust Construction for Harsh Environments
nn
The antenna’s aluminum reflector and ABS radome provide excellent durability in outdoor settings. With a rated wind velocity of 60m/s and an operating temperature range of -40°C to +90°C, it performs consistently in extreme weather conditions. Its DC grounding lightning protection adds an extra layer of safety, preventing damage from electrical surges.
nn
Conclusion: Achieve Efficient Drone Interference with Confidence
nn
In summary, our outdoor 5.8G high gain antenna outdoor is the go-to choice for professionals seeking reliable and precise signal control. Its directional capabilities, combined with superior electrical and mechanical specifications, make it an ideal tool for drone interference tasks. Whether you’re in a challenging outdoor environment or need to cover a specific area, this antenna delivers consistent performance. Invest in the outdoor 5.8G high gain antenna outdoor today and take the first step toward mastering your signal management.
