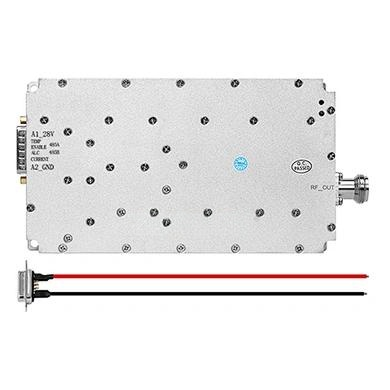

Unleashing Superior Spectrum Control: The 100W Lora GaN Module (110-190MHz)
nnIn the demanding world of electronic warfare and critical infrastructure protection, the need for a reliable, high-power solution that seamlessly integrates communication and signal suppression is paramount. Our latest innovation, the 100W Lora GaN Module operating within the 110-190MHz VHF band, is engineered to meet these exacting standards. This sophisticated system marries a high-performance amplifier module with cutting-edge RF jammer module technology, offering a unique tool for spectrum dominance. Whether your objective is robust, long-range Lora communication or precise electromagnetic interference control, this Lora GaN Module delivers consistent, stable output power, exceptional thermal efficiency, and unmatched reliability in the most challenging operational environments.nn
The Core Technology: A Hybrid of GaN Amplification and Jamming
nnThe heart of this system is its advanced amplifier module, which leverages next-generation Gallium Nitride (GaN) technology. GaN is the gold standard for high-power RF applications due to its superior power density and thermal management. This allows the module to maintain a rock-solid 100W output while operating efficiently, reducing the need for bulky cooling solutions. This efficiency is critical for mobile and field-deployable systems where space and power are at a premium. The integrated RF jammer module is not an afterthought; it is a precision tool designed for reliable spectrum control. Unlike simpler jamming solutions that can cause collateral disruption, this module is calibrated to suppress adversarial signals while preserving the integrity of your own Lora-based data links. This dual functionality makes it an indispensable asset for defense and security operations.nn
Technical Specifications and Performance Data of the Lora GaN Module
nnFor engineers and procurement specialists, the true strength of this Lora GaN Module lies in its quantifiable performance. The following table provides the detailed specifications, ensuring you have the critical data needed for system integration and mission planning. All parameters are verified under standard test conditions.nn
| Parameter | Specification | Notes |
|---|---|---|
| Model Number | MOP-PAL-110/190M-100W | Standard configuration |
| Working Frequency | 110-190 MHz | Custom frequency bands available upon request |
| Saturated Output Power | 50 ± 1 dBm | Equivalent to 100W nominal output |
| Gain | 50 ± 1 dB | High internal gain for low-drive signals |
| In-Band Fluctuation | ≤ 2.0 dB | Ensures flat power response across the band |
| Input VSWR | ≤ 1.5 | Ensures minimal reflected power; stable into varying loads |
| Gain Temperature Stability | ≤ ±1.5 dB | Performance consistency from -10°C to +55°C |
| Working Voltage | DC +28V | Standard defense and industrial voltage rail |
| Working Current | 50 dBm @ ≤ 10A | High efficiency; limits power supply burden |
| Out-of-Band Spurs | 9kHz – 1GHz: ≤ -36 dBm / 30kHz | Spectral purity for regulatory compliance |
| 1GHz – 12.75GHz: ≤ -30 dBm / 30kHz | Minimizes harmonic interference in sensitive bands | |
| Output RF Port | N-Type, Female | Robust, low-loss connector for VHF applications |
| Operating Temperature | -10°C to +55°C | Full performance over a wide environmental range |
| Storage Temperature | -25°C to +65°C | Safe for harsh storage conditions and transport |
| Operating Humidity | 5% to 95% (Non-condensing) | Suitable for humid and maritime environments |
nn
Application Scenarios for the Advanced RF Jammer Module
nnThis is not merely a component; it is a complete solution designed for the most sensitive electronic warfare and security operations. The RF jammer module functionality is particularly effective for border protection and critical infrastructure security, where it can selectively deny communication to unauthorized drones or personnel. Simultaneously, the amplifier module ensures that your own Lora-based telemetry and command links remain robust and reliable, even in the presence of intense electronic countermeasures. This dual-use capability provides a strategic advantage: the ability to control the electromagnetic environment without sacrificing one’s own communication integrity.nn
Delivering Unmatched Reliability in Electronic Warfare
nnThe marriage of the high-efficiency Lora GaN Module with the precision control of the RF jammer creates a system resilient enough for man-portable units, naval systems, and fixed-site perimeter defense. The GaN technology ensures that even under stressful, continuous operation, the module manages heat effectively, maintaining its 100W output power without degradation. In summary, this Lora GaN Module represents a significant leap forward in VHF band RF technology. It provides a single, powerful platform for both secure amplification and selective jamming, making it an essential asset for any mission requiring decisive spectrum control. Its robust technical specifications, as detailed above, guarantee it will perform reliably where it matters most: in the field.
