What is the 100W Power Amplifier Rack?
n
The 100W Power Amplifier Rack represents a sophisticated integration of a High-Gain Solid-State power amplifier with a Broadband Interference Signal Source. This unified system is engineered specifically for demanding RF testing, interference simulation, and medium-power signal transmission applications. By leveraging advanced solid-state technology, it delivers exceptional stability, long-term reliability, and precise parameter control, making it an indispensable tool for RF professionals.
n
At its core, the 100W Power Amplifier Rack excels in providing both amplification and signal generation capabilities within a single, compact unit. Its robust design eliminates the need for multiple separate devices, streamlining workflows and reducing setup complexity. The amplifier achieves a saturated output power of 50dBm (100W), making it suitable for medium-scale testing and transmission tasks where consistent, high-power performance is critical.
n
The system operates across two frequency ranges: 300-800MHz and 800-6000MHz. This dual-band coverage, combined with the built-in Broadband Interference Signal Source, allows it to adapt to diverse signal and simulation requirements. Whether you are testing device immunity or generating interference patterns, the 100W Power Amplifier Rack provides the versatility needed for modern RF environments.
n
Key Specifications and Technical Parameters
n
Understanding the technical specifications of the 100W Power Amplifier Rack is essential for assessing its suitability for your applications. The table below consolidates all critical parameters, ensuring clarity and easy reference.
n
| Parameter | Value |
|---|---|
| Working Frequency | 300-800MHz & 800-6000MHz |
| Saturated Output Power | 50dBm (100W) |
| Signal Bandwidth | 50MHz – 100MHz – 300MHz (selectable) |
| Signal Type | TBD (Customizable) |
| Output Signal Modulation | QPSK (Quadrature Phase Shift Keying) |
| Digital Modulation | Yes |
| Frequency Hopping Time | 100µs |
| Working Power Supply | AC 220V |
| Working Current | ≤3A |
| Power Consumption | ≤600W |
| Load VSWR | VSWR ≤ 3:1 (model undamaged) |
| Thermal Degradation | 75°C |
| RF Output Connector | N-female |
| Power Supply Connector | European standard plug |
| Control Connector | D-Sub 9Pin (customizable) |
| Dimensions (L x W x H) | 482.6 x 400 x 132 mm (±0.5mm) |
| Weight | ≤25Kg |
| Finishing | Alloy iridite |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -40°C to +75°C |
| Heat Dissipation | Forced air cooling |
n
The table above provides a detailed overview of the 100W Power Amplifier Rack’s capabilities. Notably, the selectable signal bandwidth (50MHz, 100MHz, or 300MHz) enables narrowband amplification or broadband interference generation, depending on your specific test needs. The inclusion of QPSK digital modulation and a 100µs frequency hopping time enhances anti-interference performance in complex signal environments, making the system robust for field operations.
n
Power management is straightforward with AC 220V input, requiring only ≤3A current, which keeps power consumption under 600W. Forced air cooling ensures stable operation of the High-Gain Solid-State amplifier, maintaining performance even during extended use. Safety features include over-temperature and over-current protection, while the D-Sub 9Pin control connector (customizable) allows for remote monitoring and control flexibility.
n
Why Choose the 100W Power Amplifier Rack?
n
The 100W Power Amplifier Rack is more than just a power amplifier—it is a complete solution. By integrating the Broadband Interference Signal Source with the High-Gain Solid-State amplifier, it eliminates the need for separate signal generators and amplifiers. This consolidation is particularly valuable for RF testing, where you can simultaneously amplify weak signals and generate customizable interference signals for device anti-interference performance assessments.
n
For interference simulation, the Broadband Interference Signal Source supports EMC testing with selectable bandwidth and QPSK modulation. For signal transmission, the High-Gain Solid-State amplifier boosts weak signals to 100W with low distortion, ensuring high fidelity. These features make the 100W Power Amplifier Rack a reliable tool for a wide range of RF applications, from laboratory experiments to field deployments.
n

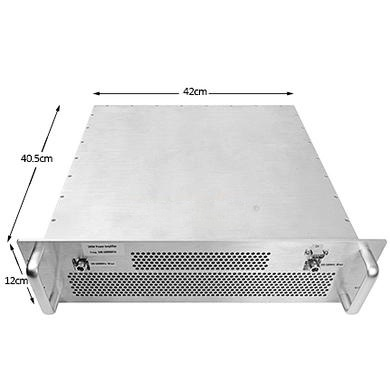

Its robust physical design includes a standard 19-inch rack-mountable chassis (482.6 x 400 x 132mm) that fits easily into existing cabinets. The alloy iridite finishing provides corrosion resistance and durability, while the operating temperature range of -10°C to +55°C (storage up to +75°C) ensures reliable performance in various environments. With an N-female RF output connector and European standard power plug, integration into existing setups is seamless.
n
Conclusion: A Versatile and Reliable RF Solution
n
In conclusion, the 100W Power Amplifier Rack offers an unparalleled combination of power, flexibility, and reliability for RF professionals. Whether you are conducting RF testing, simulating interference, or transmitting signals, its integrated design reduces equipment redundancy while enhancing performance. The precise control over key parameters, such as signal bandwidth and modulation, ensures that you can tailor the system to meet the exact demands of your projects. With robust construction and comprehensive protection features, this unit stands out as a dependable choice for medium-power RF applications.
n
When evaluating your next RF system upgrade, consider the 100W Power Amplifier Rack as a central component. It delivers the performance required for demanding tasks while maintaining ease of use and long-term durability. From its solid-state reliability to its advanced interference generation capabilities, this rack-mounted amplifier is designed to meet the challenges of modern RF environments with confidence.
