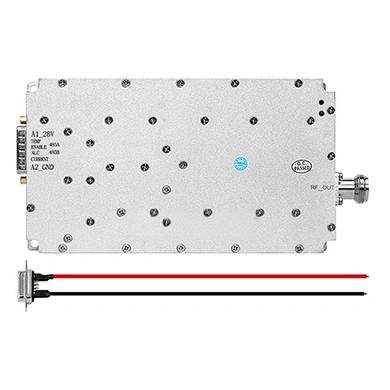

Unleashing Long-Range IoT Communication: The 100W GaN Anti-FPV Digital LoRa Module
nnIn the rapidly evolving landscape of the Internet of Things (IoT), reliable long-range communication is paramount. Enter the 100W GaN anti-FPV 400-500MHz digital (LoRa module), a cutting-edge solution engineered to overcome the challenges of UHF band applications. This advanced module combines Gallium Nitride (GaN) technology with robust LoRa modulation, providing an unprecedented blend of power, efficiency, and signal integrity. Whether you are managing assets across a sprawling warehouse, tracking cargo across continents, or deploying remote sensors in harsh environments, this module delivers the performance needed to maintain a steadfast connection. Its ability to resist interference, often referred to as anti-FPV (First-Person View) characteristics, ensures that critical data packets reach their destination without corruption, making it an indispensable tool for modern IoT infrastructure.nn
Core Specifications and Technical Excellence
nnAt the heart of this digital LoRa module is a high-power GaN amplifier designed to deliver exceptional performance in the 400-500 MHz frequency band. The module’s specifications have been meticulously engineered to provide robust signal transmission while maintaining energy efficiency. Below is a detailed breakdown of its key parameters, presented in a structured format for clarity.nn
| Parameter | Value |
|---|---|
| Model Number | MOP-PAL-400/500M-100W |
| Working Frequency | 400-500 MHz (Customizable) |
| Saturated Output Power | 50 ± 1 dBm (100W) |
| Gain | 50 ± 1 dB |
| In-Band Fluctuation | ≤ 2.0 dB |
| Input VSWR | ≤ 1.5 |
| Gain Temperature Stability | ≤ ± 1.5 dB |
| Working Voltage | DC +28V |
| Working Current | ≤ 10A at 50 dBm |
| Out-of-Band Spurs (9 kHz – 1 GHz) | ≤ -36 dBm / 30 kHz |
| Out-of-Band Spurs (1 GHz – 12.75 GHz) | ≤ -30 dBm / 30 kHz |
| Output RF Port | N-Type |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +65°C |
| Operating Humidity | 5% to 95% (Non-condensing) |
nn
Optimized for IoT and Asset Tracking
nnThis GaN power amplifier module is not just about raw power; it is a finely tuned instrument for the IoT ecosystem. Its primary differentiator lies in its integration of LoRa modulation, which provides superior link budgets and interference immunity compared to traditional frequency-shift keying (FSK) systems. The module’s 50 dBm output power, combined with its high gain, translates directly into extraordinary range capabilities—ideal for asset tracking, inventory management, and logistics operations where devices may be spread across vast distances or hidden within concrete structures. The anti-FPV feature is especially critical in environments with high radio-frequency noise, ensuring that the LoRa signal remains uncorrupted and that data from remote assets is received accurately.nn
Applications in Supply Chain and Logistics
nnThe robust design of this 100W GaN anti-FPV 400-500MHz digital (LoRa module) makes it the perfect choice for modern supply chain management. In logistics, where tracking the location of high-value assets from the point of origin to final delivery is crucial, this module provides the reliability required. Its ability to operate in extreme temperatures means it can function in unheated warehouses or refrigerated containers. The N-type connector provides a secure, weather-resistant connection for external antennas, further enhancing its durability. Whether deployed on shipping containers, pallets, or individual high-value items, this module ensures that every asset’s location and status are transmitted without interruption, reducing theft and improving operational efficiency.nn
Conclusion: The Future of Reliable UHF Communication
nnThe 100W GaN anti-FPV 400-500MHz digital (LoRa module) stands as a testament to the power of modern semiconductor and radio technology. By merging the high-efficiency characteristics of Gallium Nitride with the robust modulation of LoRa, it offers a solution that is both powerful and intelligently designed. Its technical specifications, from the 50 dBm output to the strict control of spurious emissions, demonstrate a deep commitment to quality and performance. For any application requiring reliable, long-range UHF communication—be it in IoT, asset tracking, or logistics—this module provides a solid foundation. With its flexible dual-power modes and wide operating temperature range, it is built to meet the demanding needs of today’s and tomorrow’s connected world, ensuring that your data always gets through, no matter the distance or the challenge.
