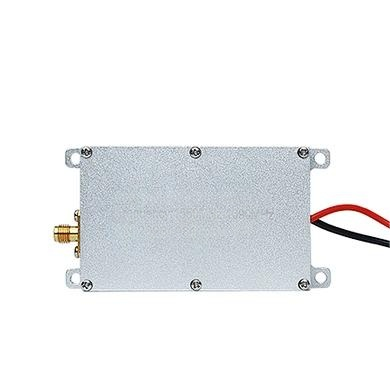

10W Power Amplifier with VCO Signal Source Module: Model MOP-PA-1550/1690M-10W – Unleashing Reliable RF Performance
nn
In the rapidly evolving landscape of radio frequency (RF) technology, the demand for compact, high-performance modules that combine power amplification with precision signal generation is greater than ever. The 10W Power Amplifier with VCO Signal Source Module (Model MOP-PA-1550/1690M-10W) stands out as a robust solution, designed to deliver exceptional efficiency and stability across a wide frequency range. Whether you are developing communication jammers, testing equipment, or specialized RF systems, this module offers a unique blend of power, versatility, and built-in intelligence. Its integrated voltage-controlled oscillator (VCO) and high-speed noise modulation capabilities make it an invaluable asset for engineers seeking to streamline their designs without compromising on performance.
nn
This article delves into the core specifications, operational features, and practical benefits of this module, providing you with a clear understanding of its capabilities. From its wide bandwidth and impressive output power to its sophisticated protection mechanisms and control interfaces, we explore every facet that makes the MOP-PA-1550/1690M-10W a compelling choice for modern RF applications. By the end, you will have a comprehensive grasp of why this module represents a significant leap forward in integrated amplification and signal source technology.
nn
Key Technical Specifications: Precision Engineering for Demanding Applications
nn
At the heart of this module lies a meticulously designed RF architecture that ensures consistent performance under challenging conditions. The following table presents the critical technical parameters, offering a clear snapshot of the module’s capabilities. Note that all specifications are confined to this structured format to ensure accuracy and clarity.
nn
| Test Item | Indicator | Remarks |
|---|---|---|
| PA Frequency | 1550 – 1690 MHz | Bandwidth range: 140 MHz |
| Maximum Output Power | 40 ± 0.5 dBm | Equivalent to ~10W |
| Operating Voltage | 28 V | Range: 24–28 V |
| Operating Current | 1 A @ 10W typical | For optimal performance |
| In-Band Fluctuation | ±1 dB | Lasts for 1 min without damage |
| Input and Output Voltage Standing Wave Ratio (VSWR) | ≤ 1.5 | Ensures low reflection |
| Power Stability | ±1 dB | @ -20℃ to +85℃ |
| RF Output Connector | SMA-50KFD | Standard RF interface |
| Operating Temperature | -20℃ to +85℃ | Wide environmental tolerance |
| Module Dimension | 81 × 45 × 16 mm | Compact footprint |
| Module Protection | Over-temperature protection, Standing wave protection | Safeguards module integrity |
| Control Switch (Feedthrough Capacitor) | 3.3V / 5V: ON, 0V: OFF | Logic-level control |
| Input Signal Source | Built-in high-speed noise modulation signal source | Integrated VCO for versatile output |
| Power Supply Input (Feedthrough Capacitor) | VCC +28V; GND | Single supply operation |
nn
Exploring the Built-in VCO Signal Source
nn
One of the most compelling features of this module is its integrated high-speed noise modulation signal source, driven by a precision VCO. This eliminates the need for an external signal generator, simplifying system integration and reducing overall component count. The VCO provides a stable and tunable RF output within the 1550–1690 MHz band, while the noise modulation capability enables applications such as spread-spectrum communications, jamming, and signal masking. The control switch interface allows seamless toggling between ON and OFF states using a standard 3.3V or 5V logic signal, making it compatible with microcontrollers and embedded systems.
nn
Power Amplification and Protection Mechanisms
nn
The amplifier section of the MOP-PA-1550/1690M-10W delivers a maximum output power of 40 dBm (10W) with a remarkable ±0.5 dB flatness, ensuring reliable performance across the full 140 MHz bandwidth. Operating at a nominal 28V (accepting 24–28V), the module draws only 1A under typical 10W output conditions, highlighting its efficiency. To protect against harsh operating environments, the module incorporates dual protection features: over-temperature protection safeguards against excessive heat, while standing wave protection prevents damage from high VSWR at the antenna. These mechanisms work together to ensure long-term reliability, even in mission-critical applications.
nn
Practical Applications and Integration
nn
With its compact dimensions (81 × 45 × 16 mm) and robust temperature range (-20℃ to +85℃), this module is ideal for field-deployable systems, tactical communication equipment, and RF test benches. The SMA-50KFD output connector ensures easy mating with standard cables and antennas, while the feedthrough capacitor for power supply input minimizes noise interference. Engineers can leverage the in-band fluctuation of ±1 dB and power stability of ±1 dB to design systems that maintain consistent performance over time. The built-in noise modulation signal source further enhances operational flexibility, allowing for agile frequency hopping or spread-spectrum transmissions.
nn
Conclusion: Why the 10W Power Amplifier with VCO Signal Source Module Is a Game-Changer
nn
In conclusion, the Model MOP-PA-1550/1690M-10W 10W Power Amplifier with VCO Signal Source Module redefines what is possible in compact RF amplification. By integrating a high-performance VCO signal source, robust protection features, and a wide operating envelope into a small footprint, it empowers designers to create efficient, resilient, and versatile RF systems. Whether you are upgrading existing infrastructure or developing next-generation equipment, this module provides the reliability, power, and flexibility needed to meet stringent demands. Its adherence to strict technical specifications, as detailed in the table above, ensures that you can trust its performance across diverse conditions. Embrace the future of integrated RF technology with the MOP-PA-1550/1690M-10W, and unlock new possibilities in communication, testing, and signal processing.
