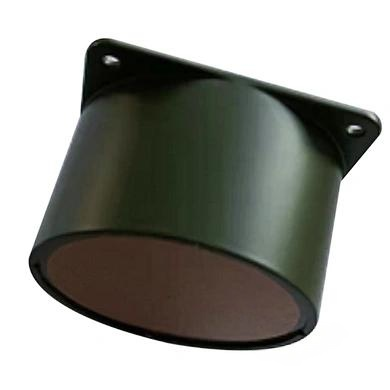

Redefining Signal Reliability: The MOP2060-45 2-6GHz Planar Helical Antenna
In the demanding world of professional communications, signal integrity is non-negotiable. The MOP2060-45 2-6GHz Planar Helical Antenna emerges as a formidable solution, expertly blending high performance with remarkable adaptability. This device is not just a component; it is the cornerstone of reliable connectivity in environments where precision and resilience are paramount. By integrating the core advantages of a Wideband Signal Receiving Antenna and a High-Frequency Helical Antenna, it perfectly adapts to a spectrum of signal transmission needs, from base station reinforcement to UAV operations.
Engineered for Exceptional Bandwidth and Polarization
The antenna operates across the full 2-6GHz frequency band, a crucial trait for modern communication systems. To combat the inherent noise of these frequencies, the MOP2060-45 employs a sophisticated right-hand circular polarization (RHCP) design. This feature is critical for reducing multipath interference and signal degradation from obstacles, ensuring a clean, continuous link. Whether you are working within a dense urban environment or an open industrial setting, this design provides the clarity and continuity needed for mission-critical data transmission.
2-6GHz Planar Helical Antenna: Specs and Performance
Understanding the technical prowess of this antenna requires a look at its core parameters. Below are the specifications that define the MOP2060-45:
| Parameter | Value |
| :— | :— |
| Operating Frequency | 2-6 GHz |
| Standing Wave Ratio (SWR) | ≤2.5 |
| Polarization | Right-hand Circular (RHCP) |
| Gain (within ±45° in Azimuth) | ≥ -4 dBi |
| Gain (within ±45° in Elevation) | ≥ -4 dBi |
| 3dB Beamwidth at 2GHz | Up to 62.1° |
| 3dB Beamwidth at 3GHz | Up to 39.3° |
| 3dB Beamwidth at 6GHz | Up to 20.4° |
| Operating Temperature | -90°C to +55°C |
| Storage Temperature | -90°C to +70°C |
| Connectors | SMA-50K (Stainless steel) |
| Dimensions (L x W x H) | 62mm x 62mm x 40mm (±2mm) |
| Color | Military Green |
| Material | Aluminum Alloy |
| Weight | ≤200g |
As shown, the gain is stably maintained at ≥ -4dBi within ±45° in both azimuth and elevation, making it exceptionally robust in complex electromagnetic environments. Furthermore, the 3dB beamwidth can be adjusted accurately across the frequency range—reaching up to 62.1° at 2GHz for wider coverage, narrowing to 20.4° at 6GHz for more targeted, long-distance links. This flexibility directly aligns with the high-frequency adaptation traits of the High-Frequency Helical Antenna, allowing you to dynamically switch signal coverage based on transmission distance and interference levels.
Rugged Design Meets Application Versatility
Beyond its technical specifications, the MOP2060-45 is built to endure. The antenna features a high-strength aluminum alloy body and a stainless steel SMA-50K connector, striking a balance between durability and weight. Weighing just 200g and measuring a compact 62mm x 62mm x 40mm, it is lightweight and easy to integrate into various setups. Its military green finish provides additional environmental protection, and it operates stably within a temperature range of -90°C to +55°C, with storage capabilities from -90°C to +70°C. This resilience ensures excellent performance even in extreme high and low temperature environments.
This 2-6GHz Planar Helical Antenna is widely used in scenarios ranging from communication base station signal enhancement to industrial automation equipment data transmission. It is equally effective for outdoor testing instrument signal reception and UAV long-distance communication. The device is a reliable choice for improving signal quality in professional fields, meeting various application needs that demand high-performance wide-band and high-frequency signal transmission. In conclusion, the MOP2060-45 fully demonstrates the comprehensive advantages of a Wideband Signal Receiving Antenna and a High-Frequency Helical Antenna, making it an indispensable tool for any professional seeking uncompromised connectivity.
