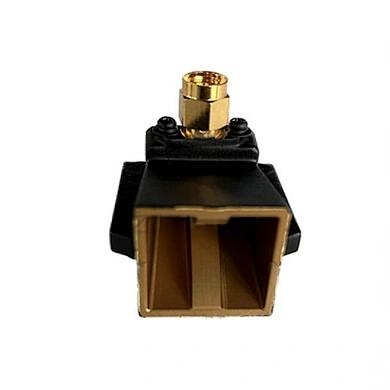

Elevate Your RF Testing with the 8-18GHz Horn Antenna
The 8-18GHz Horn Antenna is more than just a component; it is a precision-engineered solution designed to meet the rigorous demands of modern high-frequency communication and test & measurement environments. This antenna excels where accuracy, reliability, and adaptability are non-negotiable. Whether you are developing next-generation wireless systems, performing critical microwave testing, or integrating a robust High-Frequency Communication Antenna into a compact system, this device offers a compelling blend of performance and practicality.
At the heart of its design is a wide frequency range that accurately covers the 8 to 18 GHz spectrum. This broadband capability is a strategic advantage. It eliminates the common frustration of swapping antennas for different frequency bands within this range, thereby streamlining workflows and boosting efficiency in testing labs and integrated systems. The 8-18GHz Horn Antenna ensures that you have a single, dependable interface for a multitude of applications, from satellite communications to radar systems and advanced electronic warfare simulations.
8-18GHz Horn Antenna: Engineered for Signal Integrity
Signal stability is the cornerstone of any high-performance RF system. This antenna is built to deliver clean, consistent results even in challenging electromagnetic environments. The Vertical Polarization Antenna design ensures a stable polarization vector, which is critical for minimizing cross-polarization interference and maintaining link quality. The low voltage standing wave ratio (VSWR) of ≤ 2.0 is a testament to its superior impedance matching, resulting in minimal signal reflection and loss across the entire operating band. This means more of your transmitted power reaches its destination and more of the received signal is captured effectively.
To further enhance its utility, the 8-18GHz Horn Antenna achieves a gain of ≥ 6dBi. This level of gain significantly boosts effective radiated power and reception sensitivity, extending the range and robustness of your communication link. The wide H-plane 3dB beamwidth, which is greater than 60° ±20%, provides a generous coverage angle, making it ideal for applications that require signal capture from multiple directions or broad beam scanning without the need for complex steering mechanisms. This combination of high gain and wide beamwidth is a hallmark of a versatile High-Frequency Communication Antenna, perfectly suited for both point-to-point and omnidirectional-like scenarios.
Robust Construction for Demanding Environments
The physical design of this antenna is as impressive as its electrical characteristics. The use of high-quality aluminum alloy in its construction strikes an excellent balance between lightweight portability and ruggedness. Weighing in at ≤ 30g, it is exceptionally easy to handle, mount, and integrate. This is particularly beneficial for portable test setups or unmanned aerial vehicles where every gram counts.
The compact form factor, with overall dimensions of just ≤ 34mm × 33mm × 35mm, is a critical feature for modern system integration. It can be seamlessly embedded into crowded equipment cavities, UAV gimbals, or small satellite chassis without compromising performance. This solves a major challenge faced by engineers designing miniaturized high-frequency systems. The inclusion of a universal SMA-J interface further underscores its ease of integration, ensuring quick and secure connections with a vast array of RF modules and test instruments, solidifying its role as a universal building block for your projects.
Unwavering Performance Through Harsh Conditions
The 8-18GHz Horn Antenna is not just a lab instrument; it is built for the real world. Its environmental ruggedness is exceptional, with an operating temperature range from -55°C to +75°C and a storage range from -65°C to +85°C. These specifications guarantee reliable performance in extreme conditions, from the frigid cold of high-altitude testing to the intense heat of desert-based communication systems. The antenna’s black anodized finish not only gives it a professional look but also provides a layer of corrosion resistance and durability. Whether deployed in a temperature-controlled lab or on an outdoor test range facing sun, rain, and wind, this antenna maintains its electrical and mechanical integrity.
Furthermore, this antenna is a workhorse across diverse applications. It is an excellent choice for high-frequency signal transmission in 5G and next-gen communication base stations, RF performance testing of electronic equipment, and signal transmitting and receiving in advanced microwave systems and radar arrays. Its robust design and reliable performance help system operators and engineers improve overall operational efficiency while ensuring long-term stability. The table below summarizes the key parameters that make this antenna a top performer.
| Parameter | Value |
|---|---|
| Operating Frequency (GHz) | 8 – 18 |
| VSWR | ≤ 2.0 |
| Gain | ≥ 6 dBi |
| Polarization | Vertical |
| Reference Dimensions (L x W x H) | ≤ 34mm × 33mm × 35mm |
| Weight | ≤ 30g |
| Operating Temperature | -55°C to +75°C |
| Storage Temperature | -65°C to +85°C |
| Interface | SMA-J |
| 3dB Beamwidth (H-plane) | >60° ±20% |
| Color | Black |
| Material | Aluminum Alloy |
In conclusion, the 8-18GHz Horn Antenna is a masterclass in balancing high-performance specifications with real-world practicality. Its exceptional broadband coverage, signal integrity, and robust construction make it an indispensable tool for any professional working in high-frequency RF. By choosing this antenna, you are not just selecting a component; you are investing in a reliable solution that will enhance your system’s performance, durability, and overall success. Whether your work demands a precise High-Frequency Communication Antenna or a robust test & measurement asset, this model stands ready to perform.
