Introduction

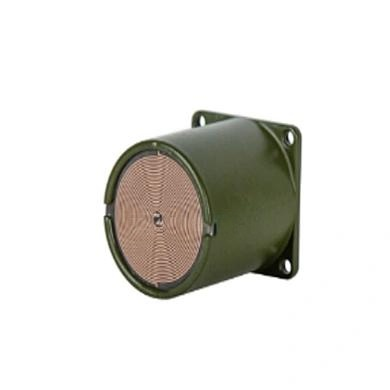

In the rapidly evolving landscape of wide-band communication, applications such as industrial monitoring, outdoor detection, and distributed sensor networks demand antennas that offer both versatility and reliability. The 6-18GHz Planar Helical Antenna (Model: MOP60180-25) emerges as a critical component, engineered to deliver exceptional performance across a broad frequency spectrum. Its standout feature—advanced circular polarization—mitigates signal degradation from multipath effects, ensuring stable connectivity even in electromagnetically cluttered environments like factory floors or remote outdoor stations. This antenna is purpose-built for short-range multi-target detection and indoor systems where signal integrity is paramount. Beyond its polarization prowess, the design incorporates low VSWR characteristics, minimizing reflection losses for seamless operation during frequency transitions. With a wide beamwidth that simplifies installation and robust construction for harsh conditions, this antenna represents a comprehensive solution for modern wide-band applications. This article explores its key attributes, from technical specifications to practical advantages, highlighting why the 6-18GHz Planar Helical Antenna is a top choice for professionals seeking high stability and coverage.
Enhanced Performance Through Circular Polarization
The core advantage of the 6-18GHz Planar Helical Antenna lies in its circular polarization technology. Unlike linear polarization, which can be disrupted by signal reflections and orientation mismatches, circular polarization maintains consistent reception regardless of antenna rotation or environmental interference. This is particularly beneficial in scenarios like industrial monitoring, where signals bounce off metal surfaces, or outdoor detection, where weather conditions can alter wave propagation. By effectively reducing multipath effects, the antenna ensures clear, stable signals, even in complex electromagnetic environments. Whether deployed in a bustling workshop or a remote station, this feature guarantees reliable short-range multi-target detection and robust indoor distributed communication, making it indispensable for systems that demand uncompromising signal quality.
Low VSWR Antenna Design for Signal Integrity
Another critical feature is the low VSWR (Voltage Standing Wave Ratio) design, with a VSWR of ≤3.0. This low VSWR Antenna characteristic significantly curbs signal reflection losses, a common issue in wide-band systems that can lead to dropped connections or data errors during frequency band switching. By minimizing reflection, the antenna optimizes power transfer and reduces strain on other communication components, thereby extending the lifespan of the entire system. This makes it an ideal choice for applications requiring high uptime, such as long-term outdoor monitoring networks or critical industrial processes. The low VSWR design ensures that every transmission is efficient, enhancing overall system stability and performance.
Wide Beamwidth for Extensive Coverage
The antenna’s wide beamwidth is a game-changer for large-scale deployments. It features a -5dB beamwidth of ≥90° in both azimuth and pitch planes, with a gain of ≥-5dB at ±45° off-axis. This means the antenna can cover wide areas without the need for precise alignment or frequent adjustments. In practice, this translates to seamless signal coverage across large parks, extensive outdoor monitoring networks, or crowded indoor spaces. Installation becomes simpler and more cost-effective, as fewer units are required to achieve full coverage. This wide beamwidth capability positions the 6-18GHz Planar Helical Antenna as a preferred solution for scenarios where consistent, broad signal distribution is essential, such as in smart city infrastructure or industrial IoT systems.
Robust Construction for Harsh Environments
Durability is a hallmark of this antenna. Constructed with an Alufer cavity and finished in military green or gray, it is built to withstand extreme conditions. The operating temperature range spans -40℃ to +55℃, with a storage range of -55℃ to +70℃, ensuring stable performance in severe cold, high heat, or rapid temperature shifts. This resilience makes it suitable for outdoor deployments in diverse climates, from arctic monitoring stations to desert-based detection systems. The compact dimensions—25mm×25mm×30mm (±2mm)—and lightweight design (≤30g) enable flexible installation in tight spaces, such as small equipment enclosures or monitoring terminals. The SMA-50K stainless steel connector adds to its durability, offering corrosion resistance and a secure, wear-resistant connection. This robust construction guarantees long-term reliability, reducing maintenance needs and operational costs.
Technical Specifications and Table
The following table presents the key technical parameters of the 6-18GHz Planar Helical Antenna, ensuring you have precise data for integration and performance evaluation.
| Parameter | Value |
|---|---|
| Frequency Range | 6 GHz ~ 18 GHz |
| Gain and Beamwidth | Azimuth plane -5dB beamwidth: ≥90°; Gain at ±45° azimuth: ≥-5dB; Pitch plane -5dB beamwidth: ≥90°; Gain at ±45° pitch: ≥-5dB |
| Standing Wave (VSWR) | ≤3.0 |
| Connector | SMA-50K type (stainless steel) |
| Polarization Method | Circular polarization |
| Reference Dimension | 25 mm × 25 mm × 30 mm (±2 mm) (without connectors) |
| Weight | ≤30 g |
| Pigment | Military Green/Gray |
| Antenna Cavity Material | Alufer |
| Working Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -55℃ ~ +70℃ |
Conclusion
The 6-18GHz Planar Helical Antenna (MOP60180-25) stands out as a high-performance solution for wide-band communication needs. Its circular polarization ensures reliable signal reception in challenging environments, while the low VSWR design minimizes losses for efficient transmission. The wide beamwidth simplifies coverage of large areas, reducing installation complexity, and the robust construction guarantees longevity in extreme conditions. Whether for industrial monitoring, outdoor detection, or indoor networks, this antenna delivers consistent, high-stability performance. By combining advanced technology with practical durability, it empowers professionals to build reliable communication systems, making it a valuable asset in any wide-band application. Trust in its design to provide the signal integrity and coverage your projects demand.
