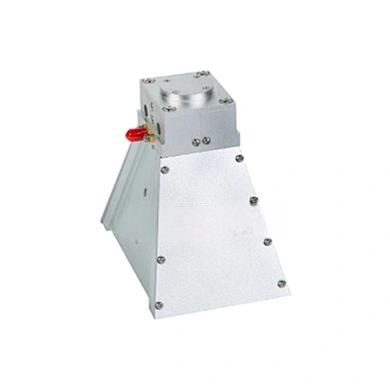

Introduction: Unlocking Wideband RF Performance
nnIn the demanding world of radio frequency (RF) testing and communication, signal integrity and reliability are non-negotiable. The 2-18GHz High-Gain Linear Polarization Dual-Ridge Horn Antenna stands as a high-performance core device, meticulously engineered for wideband RF scenarios. By leveraging the unique dual-ridge structure, this antenna achieves an efficient balance between stability and versatility across the critical 2-18GHz frequency band, making it an indispensable tool for professionals in RF testing and communication applications.nnAs a professional 2-18GHz Linear Polarization Horn Antenna, it fully covers the entire 2-18GHz bandwidth while ensuring directional accuracy and robust anti-interference capabilities through linear polarization technology. With a high gain performance ranging from 6.5 to 14dBi, it can accurately capture and stably transmit RF signals even in complex electromagnetic environments. This capability effortlessly meets professional needs such as high-precision testing and communication system debugging, solidifying its role as a cornerstone in any RF engineer’s toolkit. This introductory overview already hints at the antenna’s prowess, but a deeper dive into its specifications and design reveals why it is an ideal choice for advanced applications.nn
Detailed Technical Specifications: The 2-18GHz Linear Polarization Horn Antenna
nnThe performance of any RF antenna is defined by its technical parameters. The 2-18GHz Linear Polarization Horn Antenna excels in core metrics that directly impact testing accuracy and system reliability. Below are the detailed technical specifications, presented clearly for easy reference.nn| Parameter | Value |n| :— | :— |n| Operating Frequency (GHz) | 2 – 18 |n| Voltage Standing Wave Ratio (VSWR) | < 2.5 |n| Gain | 6.5 – 14 dBi |n| Polarization | Linear |n| 3dB Beamwidth | E-plane: 63° – 14°; H-plane: 101° – 45° |n| Reference Dimensions | 125mm × 82mm × 115mm |n| Operating Temperature | -55°C to +75°C |n| Storage Temperature | -65°C to +85°C |n| Connectors | SMA-50K |n| Weight (KG) | 0.4 |n| Color | Sandblasting |n| Material | Aluminum alloy |nn
Understanding the Core Parameters
nnThis Wideband RF Antenna demonstrates significant advantages in its core parameters. The Voltage Standing Wave Ratio (VSWR) is maintained below 2.5, which is crucial for minimizing signal reflection and ensuring maximum power transmission from the source to the antenna. This low VSWR translates directly into enhanced signal purity and reduced distortion during testing. Furthermore, the 3dB beamwidth specifications—E-plane: 63°-14° and H-plane: 101°-45°—provide excellent directivity, allowing for focused signal transmission and reception across the entire frequency range. This precise beam control is essential for isolating specific signals in crowded spectrum environments.nn
Robust Design for Industrial-Grade Durability
nnBeyond raw electrical performance, this Dual-Ridge Antenna has been carefully optimized for structural integrity and long-term durability. It is constructed from high-strength aluminum alloy and treated with sandblasting technology. This finishing process not only provides an industrial-grade, corrosion-resistant, and anti-aging surface but also contributes to a lightweight design. Weighing just 0.4KG with compact dimensions of 125mm×82mm×115mm, it is highly portable and convenient for both fixed installation in laboratories and temporary deployment in outdoor field scenarios. Its lightweight nature means no additional complex supporting equipment is required, simplifying setup and reducing overall costs.nn
Adapting to Extreme Environments
nnThe environmental adaptability of this 2-18GHz Linear Polarization Horn Antenna is nothing short of excellent. It is designed to operate reliably across a broad temperature range, from -55℃ to +75℃, and can be stored in even more extreme conditions from -65℃ to +85℃. This robust design allows it to easily cope with harsh environments such as alternating high and low temperatures, humidity fluctuations, and other challenging conditions. Engineers can rely on the antenna to maintain long-term, consistent performance without frequent maintenance or recalibration, even in demanding industrial or outdoor settings.nn
Versatile Connectivity and Wide-Ranging Applications
nnThe interface of this Wideband RF Antenna adopts the industry-universal SMA-50K specification. This common connector ensures quick and seamless compatibility with a wide array of mainstream test equipment, including signal generators, spectrum analyzers, oscilloscopes, and network analyzers. This plug-and-play capability minimizes setup time and allows engineers to integrate the antenna into existing workflows effortlessly.nnThe antenna is widely used in numerous critical scenarios:n- Electromagnetic Compatibility (EMC) Testing: For precise emissions and immunity measurements.n- 5G/6G Communication Base Station Debugging: For verifying antenna performance and signal coverage.n- Radar System Signal Simulation: For accurate target emulation and system validation.n- Aerospace RF Performance Verification: For ensuring reliable communication in extreme conditions.n- Laboratory R&D Testing: For fundamental research and product development.nn
Conclusion: Your Partner for Reliable RF Solutions
nnIn conclusion, whether it is for precision signal detection during the research and development stage or for long-term, stable deployment in industrial scenarios, this 2-18GHz Linear Polarization Horn Antenna delivers an efficient and reliable signal solution. Its wide frequency coverage, high stability, strong environmental adaptability, and robust design make it an ideal choice for RF applications across multiple fields. By choosing this antenna, you are not just selecting a component; you are investing in performance, reliability, and accuracy that will empower your most demanding projects. This Wideband RF Antenna truly stands out as a high-performance core device that defines excellence in modern RF engineering.
