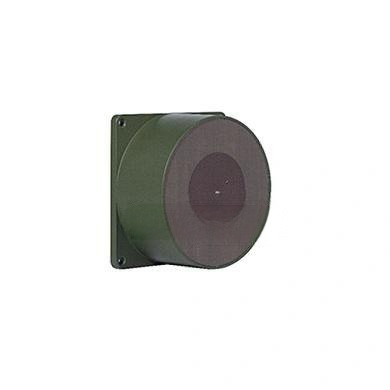

Elevate Your Wireless Systems with the 2-6GHz Antenna
nnIn the rapidly evolving landscape of wireless communication, the demand for components that deliver both precision and durability has never been higher. Enter the high-performance Planar Helical Antenna, a robust solution engineered to excel across the broad 2–6 GHz frequency spectrum. Whether you are developing IoT systems, conducting rigorous test and measurement procedures, or deploying industrial wireless networks, this antenna provides the stable, wide-frequency performance required for modern applications.nnWhat sets this antenna apart is its remarkable ability to maintain consistent, directional signal coverage. As a specialized 2-6GHz Antenna, it integrates a wide-beam coverage design that achieves at least 90° coverage in both azimuth and elevation directions, with an absolute gain of ≥ -4 dBi across the full band. In the critical 4 GHz band, it maintains the same wide-beam performance while delivering an absolute gain of ≥ -2 dBi. This ensures that signal uniformity is preserved even in complex, multipath-rich environments, making it an outstanding choice for a Wireless Signal Coverage Antenna.nn
Precision Performance of the Planar Helical Antenna
nnThe technical prowess of this Planar Helical Antenna is evident in its core specifications. With a default gain of ≥3 dBi, which can be boosted to ≥6 dBi at 4 GHz, it provides a powerful and reliable link. The Right-Hand Circular Polarization Antenna design is a standout feature, dramatically enhancing the signal’s resistance to interference. By reducing signal loss from multipath propagation, it guarantees stable and secure data transmission. Furthermore, the standing wave ratio (SWR) is kept at ≤2.5, minimizing signal reflection and thereby maximizing energy efficiency—a critical factor for battery-powered or energy-sensitive deployments.nn
Technical Specifications at a Glance
nnTo ensure clarity, the full technical parameters are presented below. This table outlines the key metrics that define the antenna’s operational capabilities.nn| Parameter | Value |n| — | — |n| Operating Frequency (GHz) | 2–6 |n| Standing Wave Ratio (SWR) | ≤2.5 |n| Polarization | Right-hand circular |n| Beamwidth (Azimuth) | ≥90° (gain ≥ -4 dBi); at 4 GHz: ≥90° (gain ≥ -2 dBi) |n| Beamwidth (Elevation) | ≥90° (gain ≥ -4 dBi); at 4 GHz: ≥90° (gain ≥ -2 dBi) |n| Reference Dimensions | ≤90 mm × 90 mm × 45 mm (excluding connector) |n| Antenna Cavity Material | Aluminum alloy |n| Operating Temperature | -40°C to +55°C |n| Storage Temperature | -55°C to +70°C |n| Interface | SMA-50K (stainless steel) |n| Gain (Normal) | ≥3 dBi; ≥6 dBi at 4 GHz |n| Color | Military green |n| Weight | ≤0.17 kg |nn
Built for the Harshest Environments: The Wireless Signal Coverage Antenna
nnDurability is non-negotiable for outdoor and industrial deployments. This Wireless Signal Coverage Antenna is constructed with a military-grade aluminum alloy cavity and finished with a protective military green coating. This rugged build allows it to operate reliably in extreme temperatures, from a chilling -40°C up to a scorching +55°C, and withstand storage conditions from -55°C to +70°C. Its compact form factor—≤90 mm × 90 mm × 45 mm—makes it easy to integrate into tight spaces, while the standard SMA-50K stainless steel connector ensures a long-lasting, corrosion-resistant connection.nn
The Role of the Right-Hand Circular Polarization Antenna in Modern Systems
nnIn today’s dense signal environments, polarization diversity is key. The Right-Hand Circular Polarization Antenna technology embedded in this design is not merely a specification—it’s a strategic advantage. By utilizing circular polarization, the antenna maintains robust link quality regardless of the orientation of the receiving antenna. This makes it ideal for mobile platforms and applications where signal reflection and fading pose challenges. Whether you need to expand coverage for the 2-6GHz band or improve signal quality in specific zones, the combination of polarization and coverage ensures an efficient, reliable solution for communication equipment integrators and test system developers.nn
Conclusion: A Versatile and Reliable 2-6GHz Antenna
nnIn summary, the Planar Helical Antenna represents a superior choice for professionals seeking a balance of high performance, environmental resilience, and compact design. Its ability to function as a precise 2-6GHz Antenna, a reliable Wireless Signal Coverage Antenna, and a robust Right-Hand Circular Polarization Antenna makes it a versatile asset for diverse wireless applications. With its wide frequency band adaptability, high stability, and strong environmental tolerance, this antenna consistently demonstrates significant competitiveness, ensuring your communication systems are future-ready.
