Why the MOP2060-25 is a Game-Changer in Wideband Signal Solutions
When it comes to ensuring reliable signal transmission across a broad spectrum, the MOP2060-25 emerges as a standout solution. This high-performance antenna is engineered to tackle the most demanding wideband signal needs, making it an essential component for modern communication systems. As a professional-grade Planar Helical Antenna, it offers an exceptional blend of coverage, stability, and durability—qualities that set it apart in the crowded antenna market. Whether you’re deploying communication base stations, integrating IoT devices, or managing industrial control systems, this High-Coverage Antenna delivers the consistent performance required for mission-critical applications.
The core strength of the MOP2060-25 lies in its ultra-wide frequency coverage. Operating seamlessly across the full 2GHz to 6GHz spectrum, this antenna eliminates the need for multiple devices in multi-band environments. Its circular polarization design ensures robust signal integrity, minimizing interference and maximizing throughput. For professionals in sectors like telecommunications, defense, and outdoor broadcasting, the ability to rely on a single antenna for such a broad range is a significant advantage. This not only simplifies system architecture but also reduces overall costs and maintenance efforts.
Unpacking the Technical Excellence of the MOP2060-25 Antenna
Superior Beam Coverage for Uninterrupted Connectivity
One of the most compelling features of this antenna is its remarkable beam coverage. The MOP2060-25 boasts a -15dB absolute gain beamwidth of ≥90° in both the azimuth and elevation planes. The gain at ±45° is consistently ≥-15dB, ensuring that even at the edges of the beam, signal strength remains robust. Additionally, the 3dB beamwidth in the 2-5.5GHz frequency band reaches a impressive 50-126°, drastically reducing signal blind spots. This precision engineering is what categorizes it as a true High-Coverage Antenna—it ensures uninterrupted connectivity even in complex, obstacle-laden environments. For instance, in a dense urban setting where multipath interference is common, this antenna’s broad beam patterns guarantee both wide-area reception and transmission, making it an ideal choice for high-density IoT deployments or mobile backhaul links.
Robust Build and Environmental Tolerance

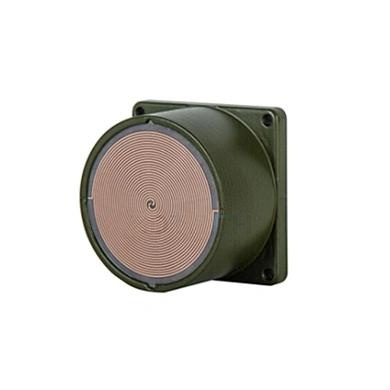

The structural design of this Planar Helical Antenna strikes a perfect balance between performance and practicality. With dimensions of only 45mm×45mm×30mm (±2mm) and a weight of ≤50g, it is incredibly lightweight and compact. This small form factor allows for flexible integration into a wide array of devices, from handheld terminals to fixed outdoor units. The antenna’s cavity is crafted from durable PPO material, a high-performance plastic known for its aging resistance and dimensional stability. It comes in two surface color options: military green and gray, both chosen to blend into various environments without compromising on visual appeal. The inclusion of an SMA-50K connector made of stainless steel further enhances reliability, providing a secure and corrosion-resistant connection point. Moreover, the MOP2060-25 exhibits strong environmental tolerance, with an operating temperature range of -40℃ to +55℃ and a storage temperature range of -55℃ to +70℃. This means it can withstand extreme heat, cold, and moisture, making it suitable for both indoor and outdoor applications, from desert communication towers to arctic weather stations.
Performance Parameters at a Glance
To provide a clear overview of the technical specifications that make the MOP2060-25 so versatile, we’ve compiled the key parameters below. This table highlights the critical measurements that enable its high-coverage performance.
| Parameter | Value |
|---|---|
| Frequency Range | 2GHz ~ 6GHz |
| Standing Wave (VSWR) | <= 3.0 |
| Joggle/Connector | SMA-50K (stainless steel) |
| Polarization Method | Circular polarization |
| Reference Dimension | 45mm45mm30mm (±2mm) |
| Weight | <= 50g |
| Pigment (Color Options) | Military Green / Gray |
| Antenna Cavity Material | PPO |
| Working Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -55℃ ~ +70℃ |
| Beam Width (-15dB absolute gain) | Azimuth & Elevation: ≥90°; Gain at ±45°: ≥-15dB |
| 3dB Beamwidth (2-5.5GHz) | 50° ~ 126° |
Why This High-Coverage Antenna is the Ideal Choice
As a typical High-Coverage Antenna, the MOP2060-25 doesn’t just meet expectations—it exceeds them. Its ability to maintain stable transmission across a 4GHz-wide spectrum, coupled with its durability and compact size, makes it a versatile tool for engineers and system integrators. Whether you’re looking to enhance signal reach in indoor IoT networks or ensure robust communication in outdoor open-air scenarios, this antenna’s combination of wide bandwidth, circular polarization, and environmental resistance offers a reliable, cost-effective solution. In conclusion, if your project demands a no-compromise approach to signal quality and coverage, the MOP2060-25 stands ready to deliver, proving itself as a premier Planar Helical Antenna for the modern age.
