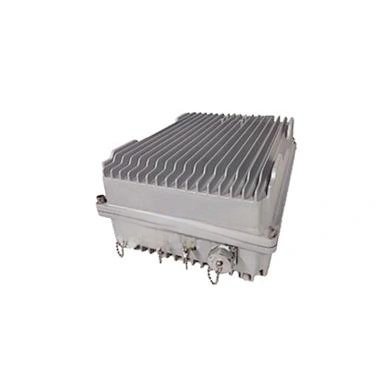

The Ultimate Solution for Challenging Environments: Anti-Interference 2T2R MIMO Outdoor Wireless Mesh Radio
nnIn an era where reliable communication can determine the success of critical operations, the Anti-Interference 2T2R MIMO Outdoor Wireless Mesh Radio stands out as a robust solution designed for long range radio communication in the most challenging environments. Utilizing COFDM (Coded Orthogonal Frequency Division Multiplexing) transmission and 2T2R MIMO technology, this radio ensures high data rates, exceptional anti-interference performance, and extended coverage even in non-line-of-sight conditions. Operating across 500MHz–650MHz (U-band) and 1–1.5GHz (L-band) frequency ranges with configurable bandwidths of 2.5/5/10/20MHz, this wireless mesh radio achieves a peak transmission rate of 120Mbps. Its high sensitivity (≤ -103dBm) and dual-channel transmit power (2×10W) enable reliable long range radio communication, making it suitable for applications such as military exercises, border and coastal defense, firefighting, and emergency rescue operations.nn
Understanding the Core Technology: COFDM and 2T2R MIMO
nnThe foundation of this radio’s capability lies in its advanced transmission system. COFDM is a multicarrier modulation technique that divides the data stream into multiple low-rate subcarriers. This makes it highly resistant to multipath interference and signal fading, which are common in urban environments, mountainous terrain, and dense foliage. When combined with 2T2R MIMO (Multiple Input, Multiple Output) technology, the system leverages two transmit antennas and two receive antennas to improve data throughput and link reliability. This MIMO configuration allows for spatial diversity, enhancing signal quality without requiring additional spectrum. The result is a system that excels in non-line-of-sight (NLOS) conditions, providing a stable connection where traditional radios often fail.nn
How the Wireless Mesh Network Enhances Long Range Radio Communication
nnThe defining feature of this device is its ability to form a self-healing, adaptive mesh network. Unlike point-to-point systems, a mesh network allows each node to communicate with multiple peers. If one node fails or a path is obstructed, data is automatically rerouted through alternative paths. This ensures uninterrupted long range radio communication across vast areas, from battlefields to disaster zones. The mesh topology also supports dynamic node mobility, making it ideal for drone-assisted monitoring or vehicular convoy communication. The system’s topology change response time of ≤ 1 second and single-hop delay of ≤ 10ms ensure near-instantaneous adaptation to changing conditions.nn
Key Features for Reliable Long Range Radio Communication
nnThis radio is engineered for resilience. The intelligent frequency selection feature automatically chooses the optimal operating frequency to avoid congestion and interference. For even greater robustness, different frequency networking allows each node to operate on a separate frequency, making it virtually immune to jamming. The anti-interference capability ensures normal communication even when specific time slots or frequency bands are attacked. With a frequency hopping rate of 1,000 hops per second and encryption options including DES, AES128, AES256, and SM4, this system provides military-grade security for sensitive missions.nn
Technical Specifications and System Parameters
nn
| Parameter | Value |
|---|---|
| Center Frequency | 500MHz～650MHz (U band), 1～1.5GHz (L band) |
| Carrier Bandwidth | 2.5/5/10/20MHz |
| Transmission System | COFDM |
| Transmission Mode | 2T2R diversity/MIMO (optional) |
| Transmission Rate | Peak rate 120Mbps |
| Image Quality | CIF/HD1/D1/720P/1080P, adaptive adjustment |
| Receive Sensitivity | ≤ -103dBm |
| Transmit Power | 2×10W, dual channel |
| Cold Start Time | ＜ 30 seconds |
| Topology Change Response Time | ≤ 1 second |
| Single-hop Delay | ≤ 10ms |
| Link Adaptation | Automatic adjustment: QPSK/16QAM/64QAM/256QAM |
| Smart Frequency Selection | Automatic optimal frequency selection |
| Different Frequency Networking | Each node uses a different frequency to avoid interference |
| Anti-Interference | Ensures normal comms under resource interference |
| Frequency Hopping | 1000 hops/second |
| Encryption | DES/AES128/AES256/SM4 |
| Antenna Interface | N type ×2 |
| WIFI, Positioning Interface | Waterproof aviation plug |
| Business Interface | Ethernet (aviation plug) |
| Power Supply | AC220V |
| Power Interface | Waterproof aviation plug |
| Device Size | 316mm×225mm×132mm |
| Operating Temperature | -40°C ～ +65°C |
| Operating Humidity | 5%RH ～ 100%RH |
| Protection Level | IP67 |
nn
Real-World Applications: From Military to Emergency Response
nnThe versatility of this mesh radio makes it indispensable for a wide range of critical missions. In military exercises and border defense, long range radio communication enables real-time situational awareness across dispersed units. Firefighters benefit from reliable voice and HD video transmission from inside burning structures or remote wildfires. Emergency rescue teams rely on its self-healing network to maintain command connectivity in disaster zones where infrastructure is destroyed. The system also supports drone-assisted monitoring, allowing operators to stream high-definition video from aerial platforms over extended distances. Its IP67 protection level ensures operation in rain, dust, and extreme temperatures, whether deployed in arctic conditions or tropical heat.nn
Conclusion
nnFor organizations that demand uncompromising reliability in long range radio communication, the Anti-Interference 2T2R MIMO Outdoor Wireless Mesh Radio with COFDM System delivers unmatched performance. By combining advanced MIMO technology, adaptive networking, and military-grade security, it provides a future-proof solution for the most demanding environments. Whether for defense, public safety, or industrial operations, this radio ensures that critical data flows seamlessly, even when every second counts.
