Advanced Protection: MOPTECH’s 20-8000MHz Communication System and RCIED New Trolley Jammer

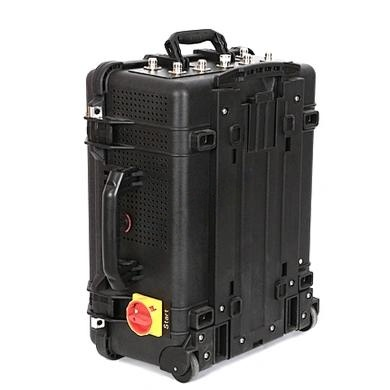

nnIn an increasingly volatile world, safeguarding lives from hidden threats is paramount. Improvised explosive devices (IEDs) and remote-controlled communication systems pose severe risks in military, security, and public safety operations. MOPTECH has engineered a robust solution with its 20-8000MHz communication system and RCIED new trolley jammer, designed to neutralize these dangers by disrupting the signals that detonate IEDs and interfere with hostile communications. This portable system offers a comprehensive, user-friendly platform for preventing malicious explosions in diverse environments.nnThe system’s visual and modular design enhances operational efficiency. Each of the 12 independent modules within the trolley case features its own control switch and dedicated display screen. These screens provide real-time data, including power frequency and operational status. A large central screen at the bottom aggregates information for all modules, while a separate battery screen on the lower left offers critical state-of-charge details. This intuitive layout allows operators to perceive the status of each unit at a glance, maximizing work efficiency without cross-module interference. Independent switches further improve controllability, enabling precise adjustments without affecting neighboring systems.nn
Power Technology and Battery Specifications
nn
Lithium Battery Advantages
nnMOPTECH utilizes cutting-edge lithium battery technology for this jammer trolley, offering significant improvements over traditional power sources. Lithium batteries are notably smaller and boast a storage energy density six to seven times greater than that of lead-acid alternatives. This results in a more compact, lightweight system with a long service life exceeding six years. Additional benefits include a high rated voltage, high power tolerance, low self-discharge rate, and robust performance across extreme temperatures, from -20°C to +50°C. Importantly, these batteries are green and environmentally friendly, containing no toxic or harmful heavy metals during production, use, or disposal.nn
Comprehensive Technical Specifications of the Portable Jammer
nnThe following table details the product specifications, technical parameters, and structured data for the MOPTECH trolley jammer.nn
| Parameter | Specification |
|---|---|
| Power Frequency Range (50W Modules) | 20-100 (DDS) MHz, 100-500 (DDS) MHz, 865-885 MHz, 925-960 MHz, 1.5G, 1805-1920 MHz, 2.1G, 2400-2485 MHz, 3400-3600 MHz, 5150-5350 MHz, 5725-5850 MHz |
| High Frequency Module (5W) | 6G-8G |
| Machine Dimensions (L x W x H) | 620 x 500 x 350 mm (excluding protruding parts) |
| Number of Modules | 12 |
| Weight | Contact supplier for exact weight |
| AC Power Supply | 110V~240V, 7A |
| DC Power Supply Mode | External battery powered box: DC28V, 50A |
| RF Total Power | 555W |
| Operating Temperature and Humidity | -20°C to +50°C / ≤80% |
| Overall Reliability (MTBF) | Not less than 1000 hours |
| Maintainability (MTTR) | Less than 1 hour |
| System Response Time | No more than 30 seconds (from power-on to normal working) |
| Antenna Gain (865-5850 MHz bands) | 47 dBi each |
| Antenna Gain (6G-8G band) | 37 dBi |
| Total Number of Antennas | High gain omnidirectional black fiberglass antenna (12 pieces) |
| Internal Battery Capacity | 50AH |
| Work Hours | >1 hour |
| Work Distance | 500-2000 meters |
nn
Operational Flexibility and Control Software
nnRecognizing diverse operational needs, MOPTECH equips this jammer with intuitive control software. This software allows operators to adjust frequency gain and other parameters, tailoring the system’s output for specific missions. Whether deployed in a stationary security checkpoint, mounted on a vehicle, or used in a patrol scenario, the portable trolley case design ensures adaptability. This flexibility, combined with broadband coverage from 20 MHz to 8 GHz, neutralizes a wide array of IED activation signals, effectively rendering such devices inert and protecting crowds.nn
Conclusion: A Commitment to Safety and Quality
nnThe MOPTECH 20-8000MHz communication system and RCIED new trolley jammer represents a significant advancement in counter-IED technology. Its modular design, powerful lithium battery, and comprehensive frequency coverage make it a versatile tool for security forces worldwide. With a focus on reliability, maintainability, and user control, MOPTECH ensures that this device meets the highest standards of performance. As a dedicated manufacturer and service provider, MOPTECH is committed to minimizing after-sales issues and maximizing customer satisfaction. If you are interested in enhancing your operational security, please contact us today for more information.
