China Moneypro 50W Wide Band RF 300-2700MHz Power Amplifier Module

Unleashing High-Performance Amplification: The 50W Wideband RF Power Amplifier (300-2700MHz)

nn

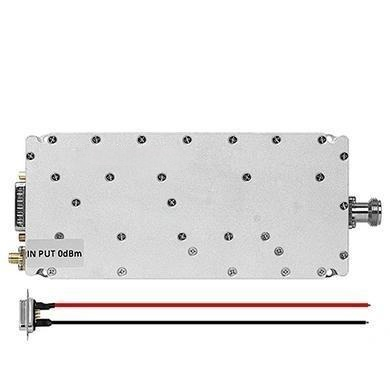

In the dynamic world of RF engineering, the ability to adapt quickly without sacrificing stability is paramount. Enter the 50W wideband RF power amplifier module, engineered for general-purpose applications across an impressive frequency range of 300 to 2700MHz. This versatile component is a game-changer for professionals seeking robust, reliable amplification in telecommunications, radar systems, electronic warfare, and industrial or commercial RF setups. At its core, this amplifier leverages advanced Class AB Gallium Nitride (GaN) technology on a Silicon Carbide (SiC) substrate, attached to a copper subcarrier via patented thermal management methods. The result is a device that not only delivers high power but also ensures longevity and efficiency, even under demanding conditions. But what truly sets this amplifier apart is its ability to handle instantaneous wide bandwidth, allowing it to effortlessly shift between frequency requirements without performance degradation. With a 50 Ohm input and output impedance, integration into standard RF systems is seamless, eliminating the need for extra matching networks. Compact and lightweight, this module is designed for easy system integration while maintaining ruggedness and high reliability. The advanced thermal management is a critical advantage, reducing overheating risks and extending the device’s lifespan. Whether for rapid frequency changes in electronic warfare or consistent performance in telecom infrastructure, this 50W wideband RF power amplifier delivers exceptional results.

nn

Understanding the Technology: GaN on SiC with Innovative Thermal Management

nn

The backbone of this amplifier is its use of Gallium Nitride (GaN) technology on a Silicon Carbide (SiC) substrate. GaN is renowned for its high electron mobility and breakdown voltage, enabling operation at high frequencies and power levels. When combined with SiC’s superior thermal conductivity, the result is a powerful yet efficient semiconductor. The GaN die is attached to a copper subcarrier using patented technology, which optimizes heat dissipation. This design is crucial because excessive heat is a primary cause of failure in electronic components. By efficiently drawing heat away from the GaN substrate, the amplifier maintains stable performance even during prolonged use. This thermal management directly translates to higher reliability and a longer operational life, making it ideal for environments where downtime is not an option. Additionally, the Class AB operation ensures a balance between linearity and efficiency, reducing distortion while maintaining low power consumption. This combination of materials and engineering makes the amplifier a robust solution for high-performance amplification needs across a broad frequency range.

nn

Key Specifications: Technical Parameters at a Glance

nn

To fully appreciate the capabilities of this amplifier, it is essential to examine its technical specifications. The following table provides a comprehensive overview of the critical parameters, ensuring that engineers and system integrators can verify compatibility with their unique requirements.

nn

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

nn

These specifications demonstrate the amplifier’s capability to handle a wide range of conditions with precision. The operating voltage of DC +28V, combined with a working current of less than 5A, ensures efficient power usage. The VSWR value of ≤1.5 indicates excellent impedance matching, minimizing signal reflection and loss. Additionally, the out-of-band spurs are tightly controlled to prevent interference with other RF systems, a critical feature in dense electromagnetic environments.

nn

Practical Applications and Benefits

nn

The 50W wideband RF power amplifier is not just a technical marvel; it is a practical tool for real-world applications. Its instantaneous wide bandwidth allows it to adapt to varying frequency requirements within seconds, making it ideal for frequency-hopping systems in military communications or cognitive radio networks. In telecommunications, the amplifier can boost signal strength for cellular base stations or repeaters, ensuring consistent connectivity over large areas. For radar systems, the high saturated power output of 47±1 dBm (approximately 50W) is sufficient to penetrate obstacles and detect targets at long ranges. In electronic warfare, the amplifier’s ability to operate across a broad frequency band provides the flexibility needed for jamming or signal intelligence. Furthermore, the compact design and lightweight construction simplify integration into drones, mobile platforms, or portable equipment without sacrificing performance. The robust thermal management ensures that even in harsh environments—such as high-power transmission or extended operation—the amplifier remains reliable. The monitoring interface via DB9 connector allows real-time tracking of temperature (TEMP) and VSWR, enabling proactive maintenance and preventing damage from overheating or impedance mismatch.

nn

Conclusion

nn

In summary, the 50W wideband RF power amplifier module (300-2700MHz) stands out as a superior choice for professionals who demand flexibility, power, and reliability. Its advanced GaN-on-SiC technology, paired with patented thermal management, ensures efficient heat dissipation and prolonged operational life. With specifications like 47±1 dBm saturated power, ≤1.5 VSWR, and a broad frequency range, it meets the rigorous demands of telecommunications, radar, electronic warfare, and industrial RF systems. The compact footprint and standard 50 Ohm impedance make integration straightforward, while the monitoring interface provides essential diagnostics. Whether you are upgrading an existing system or designing a new solution, this amplifier offers the performance and durability needed to succeed in today’s complex RF landscape. Embrace the power of wideband amplification and experience the difference that expert engineering can make.
