Revolutionizing Anti-Drone Defense: The Power of the Multi-Arm Spiral Antenna
nn
As modern science and technology advance at a breathtaking pace, the proliferation of illegal drones has become a growing threat to public safety, privacy, and critical infrastructure. Unauthorized drone flights disrupt airports, compromise security at public events, and even interfere with emergency services. To combat this rising tide of unauthorized aerial activity, MOPTECH has engineered a groundbreaking solution: the multi-arm spiral antenna. This innovative helical antenna is specifically designed for anti-drone equipment, offering a suite of performance advantages that make it an indispensable tool for drone detection and jamming systems.
nn
Unmanned aerial vehicles (UAVs) are becoming smaller, faster, and more sophisticated. Standard antennas often struggle to maintain reliable signal reception in the chaotic electromagnetic environment created by multiple drones and ground-based interference. The MOPTECH spiral antenna, however, is built to excel exactly where others fail. Its advanced multi-arm technology provides a robust, high-fidelity link to GPS and GNSS satellites, which is critical for both identifying drone positions and disrupting their navigation. This is not just an incremental improvement; it is a paradigm shift in how we approach the challenge of rogue drone mitigation.
nn
Understanding the Multi-Arm Spiral Technology for Anti-Drone Applications
nn
The core innovation of the MOPTECH spiral antenna lies in its multi-arm spiral technology. Traditional antennas may suffer from inconsistent phase centers or poor polarization, leading to signal dropouts and measurement errors. The multi-arm design of this helical antenna ensures precise and dependable signal reception across the L1 and L5 frequency bands of the GPS system. This dual‑band capability is essential for modern drone defense, allowing the system to not only track satellite signals but also to inject counter-signals with pinpoint accuracy.
nn
Key Technical Advantages of the Spiral Antenna Spring Design
nn
The spiral antenna spring design is not just a structural choice; it is a functional masterpiece. Let us break down the critical benefits that set this antenna apart from conventional solutions:
nn
- n
- Exceptional Phase Center Stability: The antenna’s right‑hand circular polarization maintains a highly stable phase center. This characteristic is non‑negotiable for achieving high measurement accuracy, significantly reducing the impact of multipath errors and ensuring that the system can precisely locate a drone’s coordinates or its jamming target.
- Unmatched Low‑Elevation Reception: One of the most challenging aspects of anti‑drone operations is tracking low‑flying UAVs near the horizon. The helical antenna unit features high gain and minimal gain roll‑off, making it exceptionally adept at receiving satellite signals even at very low elevation angles. Even in severe environments where buildings, trees, or terrain cause significant signal shielding, this spiral antenna continues to deliver reliable satellite lock.
- Superior Filtering and Low Noise Performance: The integrated low noise amplifier (LNA) and high‑strength filter are engineered to deliver a high overall gain while maintaining an impressively low noise figure. The powerful out‑of‑band suppression capability ensures that the antenna effectively rejects interference from Wi‑Fi, cellular networks, and other radio sources. This allows the system to focus on the weak satellite signals or targeted counter‑measure frequencies without degradation.
- Durable and Lightweight Construction: Designed for demanding field deployment, the antenna is compact, low‑profile, and easy to mount. The outer shell is crafted to resist impact, high and low temperature extremes, and water ingress. This ruggedization ensures that the antenna can operate continuously in harsh outdoor conditions, providing unwavering performance for long‑term perimeter security.
n
n
n
n
nn
Technical Specifications and Parameters of the Helical Antenna for Anti-Drone
nn

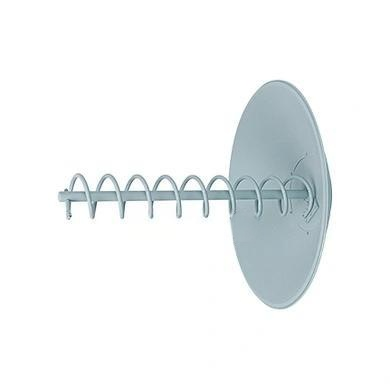

To appreciate the engineering behind this device, one must examine its precise technical specifications. The following table outlines the key parameters that define the performance envelope of the MOPTECH model MOP‑HA‑1500/1700M‑N.
nn
| Parameter | Specification |
|---|---|
| Model | MOP-HA-1500/1700M-N |
| Frequency Range | 1500–1700 MHz (customizable) |
| Standing Wave Ratio (SWR) | ≤ 2 |
| Gain | 10–20 dBi |
| Polarization Mode | Right‑Hand Circular Polarization |
| Directional Diagram Orientation | Oriental (fixed directional) |
| Half Power Beamwidth | 20°–40° |
| Axial Ratio | ≤ 3 dB (axial) |
| Interface | N‑50K |
| Weight | 5 kg |
| Dimensions | φ130 mm × L600 mm (reflector plate φ300 mm) |
| Antenna Materials | Base plate: aluminum; Spiral: copper; Outer cover: fiberglass (waterproofed) |
nn
Conclusion: Why the Spiral Antenna is the Best Choice for Anti-Drone Systems
nn
In the battle against illegal drones, reliability is everything. The MOPTECH spiral antenna represents the pinnacle of antenna design for counter‑UAV applications. Its ability to maintain a solid satellite link in the face of interference, its high‑gain performance at low elevation angles, and its robust, all‑weather construction make it the go‑to choice for professionals who cannot afford failure. From securing national borders to protecting major public events, this helical antenna for anti-drone operations offers the performance and durability that modern security demands. By choosing the MOPTECH spiral antenna, you are not just buying a component; you are investing in a critical layer of defense that keeps our skies safe and our lives uninterrupted.
