Unleash High-Power Performance with the 20W 420-6000MHz PA Power Amplifier Module
nn
Elevate your RF applications with our 20W 420-6000MHz PA Power Amplifier Module, designed to deliver robust and reliable performance across an exceptionally wide frequency range. Whether you require continuous wave output at 20W or a fully customized power solution, this module is engineered to meet your most demanding requirements with exceptional efficiency and unwavering stability. This amplifier empowers engineers and system integrators to push the boundaries of RF performance in communication, radar, and test equipment systems. The versatility of this PA module power amplifier makes it an indispensable component for mission-critical operations where precision and durability are paramount.
nn
Experience unmatched power, precision, and adaptability. The PA module is built to thrive in harsh environments, ensuring consistent operation even under extreme temperature variations. From military aerospace to commercial infrastructure, this amplifier delivers the high power output and low spurious emissions needed to maintain signal integrity and minimize interference. Customize your solution today and unlock new possibilities in RF design, all while benefiting from a rugged construction that guarantees long-term reliability.
nn
Key Features of the PA Module
nn
High Power Output and Broad Frequency Range
n
This PA module achieves an impressive 20W output power, with customizable levels available to suit diverse application requirements. The broad frequency range, operating seamlessly from 420MHz to 6000MHz, ensures versatility for communication systems, radar arrays, and test equipment. This flexibility allows you to tailor the amplifier to specific performance criteria, optimizing your system for efficiency and output.
nn
Exceptional Stability and Low Spurious Emissions
n
Superior stability is a hallmark of this amplifier, with gain stability of ±1.5dB and power stability of ±1dB across temperatures from -40℃ to +55℃. These specifications guarantee consistent performance in harsh environments, from arctic cold to desert heat. Additionally, low spurious emissions keep unwanted signals ≤15dBm/1MHz within the operating band, minimizing interference and maintaining clean signal propagation. This is critical for applications where spectral purity is non-negotiable, such as in sensitive measurement systems.
nn
Robust and Reliable Design
n

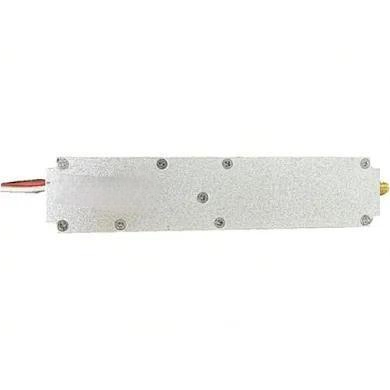

The module features an SMA female connector for secure RF output and supports a 28-32V operating voltage with a 2A current requirement, ensuring reliable power delivery. The robust design is ideal for military, aerospace, and commercial applications, combining cutting-edge technology with rugged construction. The PA module also includes temperature testing for operating environments from -10℃ to +55℃, with low-temperature startup capability for extreme conditions.
nn
PA Module Technical Specifications
nn
| Test Item | Indicator | Unit | Note |
|---|---|---|---|
| Frequency Range | 420-5850 | MHz | Customizable for clients |
| Operating Voltage | 28 | V | 28-32V |
| Maximum Output Power | 43±0.5 | dBm | 20W @ ≤1.8A |
| Gain | 38±1 | dB | Peak-to-peak |
| In-band Fluctuation | ≤2 | dB | Peak-to-peak |
| Spurious Emission (Within Operating Band) | ≤-15 | dBm/1MHz | Measured with CW signal added to center frequency to maximum output power |
| Spurious Emission (Out of Operating Band 9KHz~1GHz) | No higher than normal background noise | dBm | – |
| Spurious Emission (Out of Operating Band 1G~12.75GHz) | No higher than normal background noise | dBm | – |
| Output VSWR (without power) | ≤1.30 | – | Tested with dual directional coupler |
| Output VSWR (with power) | ≤1.30 | – | Tested with dual directional coupler |
| Operating Environment Temperature | -10～+55 | ℃ | Low-temperature startup capability |
| Gain Stability | ±1.5 | dB | @-40℃~+55℃ |
| Power Stability | ±1 | dB | @-40℃~+55℃ |
| Power Supply Requirement | ≥2A@+28Vdc | – | Continuous wave output 20W |
| Power Supply Interface | Red-positive, black-negative | – | Wiring indicator |
| RF Output Connector | SMA | – | SMA female outer spiral socket |
nn
Available Model Variations
nn
| Model | Frequency (MHz) | Power (dBm) | Current (A) | Voltage (V) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| MOP-PA-420/580M-20W | 420-580 | 43±1 | ≤1.8 | 28-32 | 25.6111.717 | 0.0996 |
| MOP-PA-720/820M-20W | 720-820 | 43±1 | ≤1.8 | 28-32 | 25.6111.717 | 0.0996 |
| MOP-PA-850/930M-20W | 850-930 | 43±1 | ≤1.8 | 28-32 | 25.6111.717 | 0.0996 |
| MOP-PA-970/1100M-20W | 970-1100 | 43±1 | ≤1.8 | 28-32 | 25.6111.717 | 0.0996 |
| MOP-PA-1170/1280M-20W | 1170-1280 | 43±1 | ≤1.8 | 28-32 | 25.6111.717 | 0.0996 |
| MOP-PA-1550/1620M-20W | 1550-1620 | 43±1 | ≤1.8 | 28-32 | 25.6111.717 | 0.0996 |
| MOP-PA-2400/2500M-20W | 2400-2500 | 43±1 | ≤1.8 | 28-32 | 25.6111.717 | 0.0996 |
| MOP-PA-5150/5350M-20W | 5150-5350 | 43±1 | ≤1.8 | 28-32 | 25.6111.717 | 0.0996 |
| MOP-PA-5400/5700M-20W | 5400-5700 | 43±1 | ≤1.8 | 28-32 | 25.6111.717 | 0.0996 |
| MOP-PA-5725/5850M-20W | 5725-5850 | 43±1 | ≤1.8 | 28-32 | 25.6111.717 | 0.0996 |
nn
Conclusion: Power Your RF Systems with Precision
nn
This PA module power amplifier represents the pinnacle of RF engineering, offering 20W of continuous wave output with customizable power levels and a massive 420-6000MHz frequency range. Its superior stability, low spurious emissions, and robust design make it the ideal choice for military, aerospace, and commercial applications where reliability is critical. Whether you are building a communication system, a radar array, or a test equipment setup, this PA module delivers the power and precision you need to succeed. Customize your solution today and experience the difference that high-quality design and rigorous testing can make in your next project.
