Integrated Signal Amplifier with VCO: Redefining RF Performance in Critical Operations
n
nIn the demanding landscape of electronic warfare, drone countermeasures, and tactical communications, signal integrity and power are non-negotiable. The advanced signal amplifier system detailed here merges a robust amplifier 20 watt module with an integrated VCO signal generator to deliver exceptional performance across the 720–840 MHz frequency band. Engineered for mission-critical applications, this unit achieves a saturated power output of 40±1 dBm with remarkable 40 dB gain, ensuring stable, high-quality amplification for systems that demand reliability under fire. The precision VCO module enables exact frequency synthesis, while the digital module provides intelligent, real-time control over signal parameters, making it an ideal choice for adaptive jamming and spectrum dominance scenarios.n
nn
Core Specifications of the Signal Amplifier System
n
nEvery component of this signal amplifier is designed to meet rigorous military and industrial standards. Below, the technical data is presented in a clear, structured format to provide a comprehensive overview of its capabilities.n
nn
| Parameter | Value | Notes |
|---|---|---|
| Working Frequency | 720–840 MHz | Optimized for counter-drone and tactical bands |
| Saturated Power Output | 40±1 dBm | Equivalent to ~10W at the port |
| Gain | 40 dB | Linear, stable amplification |
| In-Band Flatness | ±1 dB typical | Ensures uniform performance across frequency range |
| Working Current | ≤1 A | At DC+28V supply |
| Input/Output VSWR | ≤1.5 | Reflects minimal impedance mismatch |
| Out-of-Band Spurs | 9kHz–1GHz: ≤ -36 dBm/30kHz; 1GHz–12.75GHz: ≤ -30 dBm/30kHz | Supports spectral purity for jamming and comms |
| Maximum Lossless Input | +10 dBm | Input should not exceed this to avoid distortion |
| Operating Voltage | DC+28V | Standard military power bus |
| Power Supply Interface | Feed-through capacitor | EMI suppression and power integrity |
| RF Port | SMA-KFD | Military-grade RF connector |
| Monitoring Interface | Feed-through capacitor | Enables digital module diagnostics |

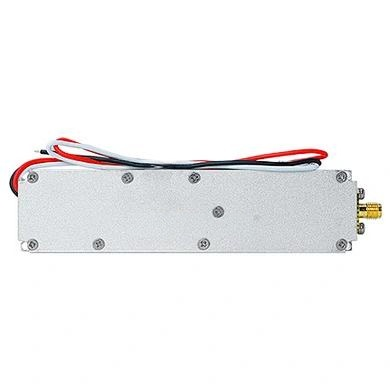

| Amplifier Size | 112 × 38 × 18 mm | Compact, deployable form factor |
| Operating Temperature | -30°C to +65°C | Full range for field use |
| Relative Humidity | 5% – 95% (non-condensing) | Resistant to environmental extremes |
| Storage Temperature | -30°C to +65°C | Same as operating, for long-term reliability |
nn
The Role of the Amplifier 20 Watt Module in High-Stakes Environments
n
nAt the heart of this signal amplifier lies the amplifier 20 watt module. With a saturated power output of 40±1 dBm (approximately 10W at the port, but the module itself is rated for 20W class operation), it provides the raw power needed to overcome interference and deliver clear signals in contested spectrum environments. This amplifier 20 watt stage is paired with a 40 dB gain, allowing even weak signals to be boosted to decisive levels. The system’s efficient design ensures that the ≤1A current draw from a standard DC+28V supply translates into minimal thermal stress—critical for prolonged missions in confined enclosures or on portable platforms like drones.n
nn
Integrated VCO Signal Generator for Precision Frequency Control
n
nThe VCO signal generator integrated into this unit is not an add-on; it is the brain of the frequency synthesis system. Using a phase-locked loop (PLL) architecture, the VCO module delivers exact, stable frequency generation across the 720–840 MHz range. This precision is essential for adaptive jamming scenarios where rapid frequency hopping is required to evade detection or avoid interfering with friendly signals. The VCO signal generator’s low phase noise characteristics also ensure that out-of-band spurs remain ≤-36 dBm/30kHz (below 1 GHz) and ≤-30 dBm/30kHz (above 1 GHz), meeting stringent spectral mask requirements for military communications.n
nn
Digital Module: Intelligent Oversight for Uninterrupted Operations
n
nThe digital module is the central nervous system of the signal amplifier, providing real-time monitoring and adaptive control. It tracks critical parameters such as thermal performance, input and output power levels, and frequency lock status. In field applications where temperature can swing from -30°C to +65°C and humidity from 5% to 95% (non-condensing), the digital module adjusts bias points and gain settings to maintain consistent performance. Additionally, the feed-through capacitor power and monitoring interfaces allow for seamless integration with external control systems, enabling remote diagnostics and automated shutoffs in the event of anomalies.n
nn
Synergy of Analog Power and Digital Control in Tactical Systems
n
nWhat makes this signal amplifier a standout solution is the seamless synergy between its analog amplification chain and its digital control layer. The amplifier 20 watt module delivers brute force when needed, while the VCO signal generator ensures spectral accuracy. The digital module ties these elements together, offering operators a single, cohesive platform for electronic warfare, drone neutralization, and secure communications. Whether deployed in a portable anti-drone system carried by a dismounted soldier or integrated into a fixed-site jamming array, this system meets the most demanding military and security specifications.n
nn
Conclusion: A Comprehensive Platform for Spectrum Dominance
n
nIn the pursuit of spectrum dominance, the integrated signal amplifier with VCO signal generator represents the pinnacle of RF engineering. It combines the precision of a VCO signal generator with the brute force of a 20W power amplifier in a compact 112×38×18 mm package. With an amplifier 20 watt core, a digital module for intelligent management, and a design that thrives in extreme environmental conditions, this solution is indispensable for modern electronic warfare and tactical communications. The inclusion of advanced monitoring interfaces further enhances diagnostics and operational control, ensuring that the signal amplifier remains reliable from the first field test to the hundredth mission.n
