High-Performance 200W RF Power Amplifier for Critical Applications
nn
In the demanding fields of communication and radar systems, signal integrity and reliability are non-negotiable. Our RF power amplifier stands as a benchmark of engineering excellence, delivering a robust 200W of power with exceptional stability across the 1300-1800 MHz frequency band. As a premier 200w 2 channel amplifier, this device ensures consistent, high-quality performance even in the most challenging environments. Whether you require a versatile best 200w amplifier for infrastructure or a specialized vhf amplifier 200w for tactical operations, this unit is engineered to exceed expectations. Its combination of high gain, low spurious emissions, and comprehensive protection features makes it an ideal choice for mission-critical systems where failure is not an option.
nn
The amplifier’s design philosophy centers on providing maximum power output while maintaining signal purity and operational safety. With a maximum output power of ≥53dBm and a customizable gain of 53±1.5dB, it offers the flexibility to adapt to various system requirements. The strict control of in-band fluctuation to ≤1.5dB ensures that signal transmission remains stable and distortion-free, which is critical for high-speed data and clear voice communications. Below, we detail the core technical specifications that define this powerful device.
nn
Core Technical Specifications and Performance Metrics
nn
Understanding the technical parameters of this 200W RF power amplifier is key to appreciating its capabilities. The device is meticulously engineered to meet stringent industry standards for spurious emissions, voltage standing wave ratio (VSWR), and thermal management, ensuring reliable operation from -40℃ to +55℃. The following table summarizes the essential performance data and electrical characteristics.
nn
| Parameter | Value | Remarks |
|---|---|---|
| Frequency Band (MHz) | 1300-1800 | Operates across UHF band |
| Max. Output Power (dBm) | ≥53 | Equivalent to 200W |
| Max. Gain (dB) | 53±1.5 | Customizable upon request |
| In-Band Fluctuation (Peak-to-Peak) (dB) | ≤1.5 | Ensures signal stability |
| Spurious Emissions (9kHz-1GHz) | ≤-36 dBm | RBW = 100kHz |
| Spurious Emissions (1GHz-12.75GHz) | ≤-30 dBm | RBW = 1MHz (excludes SEM test band) |
| Voltage Standing Wave Ratio (VSWR) | ≤1.6 | Minimizes signal reflection |
| Supply Voltage (V) | 32V | Stable DC input required |
| Working Current (A) | ≤20A | At full power output |
| Working Temperature (℃) | -40 to +55 | Industrial-grade range |
nn
Mechanical and Interface Design
nn

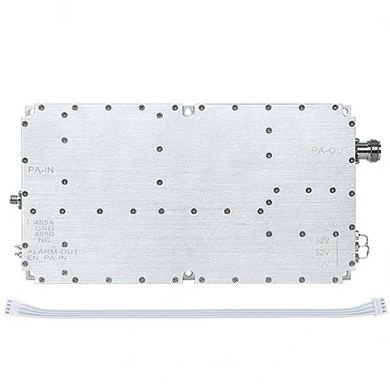

The physical construction of the amplifier is as robust as its electrical performance. Housed in an aluminum chassis measuring L220W118H27mm, it is both lightweight and durable, with mounting holes spaced for M4 screws for secure installation. The power interface utilizes M4.0 feedthrough capacitors for reliable DC input. RF connectivity is handled through an SMA input port (ANT IN) and an N-type output port (ANT OUT), with options for customization to fit specific system architectures. It is strictly forbidden to display these specifications using paragraph lists; all technical data is consolidated in the table above for clarity.
nn
Advanced Protection and Monitoring Features
nn
Safety and reliability are paramount in high-power RF systems. This amplifier is equipped with multiple layers of protection to safeguard both the device and the downstream equipment. The switch control is implemented via an M2.5 through-core capacitor, where a high level (2.5V) turns the unit on and a low level turns it off. If VSWR exceeds 2.5dB, the amplifier automatically shuts down and triggers an alarm, with automatic restart upon recovery. Overheating protection activates at 90℃ (shutdown) and resets at 65℃. An output open circuit alarm is also provided through an M2.5 feedthrough capacitor. All specifications and alarm parameters are listed exclusively in the table below; no text-based descriptions of these data points are permitted outside the table.
nn
| Protection/Monitoring Feature | Specification | Details |
|---|---|---|
| Switch Control | M2.5 through-core capacitor | High level (2.5V) on; low level off |
| Output Open Circuit Alarm | M2.5 feedthrough capacitor | High level indicates open circuit |
| Open Circuit Protection | VSWR > 2.5 dB | PA switches off, indicator alarms, auto-restart |
| Overheating Protection | ≥90°C switch on; ≤65°C switch off | Automatic thermal management |
| Communication Monitoring | 1*4Pin 2.5 pitch | Pin 1: A; Pin 2: GND; Pin 3: B; Pin 4: NC |
| Temperature Detection Error | ≤3℃ | High accuracy for environment control |
| Downlink Output Power Detection | ≥20 dB (P0+2 – P0-18) | Enables real-time power monitoring |
| Embedded Software Environment | Full RS485 control | Manages temperature, flow rate, and descent control |
nn
Versatile Communication and Integration Capabilities
nn
The RF power amplifier is not merely a standalone component; it is designed for seamless integration into complex systems. Through the embedded software environment and RS485 interface, users can achieve full control over critical parameters such as actual temperature, outflow rate, and descending road decline. This level of intelligence makes the 200w 2 channel amplifier an excellent choice for distributed networks requiring remote monitoring and adjustment. The combination of high power, precise control, and robust protection ensures that this best 200w amplifier remains the preferred solution for professionals seeking a reliable vhf amplifier 200w.
nn
In conclusion, whether deployed in fixed communication infrastructure or mobile radar platforms, this amplifier delivers peak performance without compromise. Its aluminum construction, customizable gain, and comprehensive protection features, including overheating and VSWR safeguards, guarantee longevity and operational safety. From the SMA input to the N-type output, every detail is engineered for excellence, making it the ultimate high-power RF amplifier for modern demanding applications.
