Unlocking RF Performance: A Deep Dive into the 25W 860-1400MHz Power Amplifier
In the demanding world of wireless communications, signal integrity is everything. The 25W power amplifier emerges as a high-efficiency RF module engineered for precise, reliable amplification across the critical 860-1400MHz frequency range. Whether deployed in base stations, radar systems, or advanced test equipment, this module delivers consistent performance with minimal distortion, ensuring robust signal integrity for a wide array of applications. Its compact, rugged design houses a 10pin amplifier interface that seamlessly integrates with control circuits, enabling efficient power management and dynamic operation. The built-in on and off functionality allows the amplifier to reduce power consumption when idle, without compromising responsiveness—an ideal feature for portable or battery-operated devices. By balancing high output with intelligent control, this 25W power amplifier sets a new standard for energy-efficient RF solutions.
Precision Engineering for Dynamic Wireless Systems

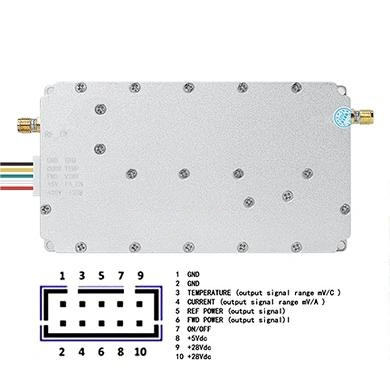

Engineered to meet stringent industry standards, the amplifier offers exceptional thermal stability and durability across varying operating conditions. The 860-1400MHz bandwidth ensures broad compatibility, from commercial two-way radios to specialized military communications. The 10pin amplifier configuration simplifies external control, supporting advanced features like gain adjustment and real-time fault monitoring. Additionally, the on and off capability enhances system flexibility, enabling rapid activation and deactivation as needed. This makes the module particularly valuable in scenarios where power conservation and quick response times are critical. Advanced circuitry guarantees low noise and high linearity, delivering superior signal quality across the entire frequency range. The 10pin amplifier interface not only facilitates easy installation but also allows for continuous monitoring and diagnostics, improving overall system reliability. With its robust construction and adaptable design, this 25W power amplifier is a dependable solution for engineers seeking a balance of power, precision, and control in their RF systems.
Technical Specifications of the 25W Power Amplifier
To fully appreciate the capabilities of this module, let’s examine its key parameters. The following table details the critical specifications that define its performance and integration requirements.
| Parameter | Value |
|---|---|
| Working Frequency | 860-1400 MHz |
| Saturated Power Output | 44 dBm |
| Gain | 44 dB |
| In-band Flatness | ≤ ±1 dB |
| Working Current | ≤ 3 A |
| Input and Output VSWR | ≤ 1.5 |
| Out-of-band Spurs (9 kHz – 1 GHz) | ≤ -36 dBm / 30 kHz |
| Out-of-band Spurs (1 GHz – 12.75 GHz) | ≤ -30 dBm / 30 kHz |
| Maximum Lossless Input | +10 dBm |
| Operating Voltage | DC +28 V |
| Power Supply Interface | Feed-through Capacitor |
| RF Port | SMA-KFD |
| Monitoring Interface | Feed-through Capacitor |
| Amplifier Size | 125 x 65 x 20 mm |
| Operating Temperature | -10 to +55 °C |
| Relative Humidity | 5% to 95% (No Condensation) |
| Storage Temperature | -25 to +65 °C |
Advanced Monitoring and Control Features
The module is equipped with intelligent monitoring capabilities that enhance system management and diagnostics. The current report function allows the module to read current values via a voltage range of 0-5V, providing real-time operational feedback. Similarly, the temperature report function enables precise thermal monitoring. It reads temperature values with a voltage reference of VO = 10 mV / °C at T °C, with 500 mV at 25 °C as the basic reference point. This means the voltage increases by 10 mV for every 1 °C rise in temperature, allowing for accurate thermal tracking and proactive system adjustments to maintain optimal performance.
Conclusion: The 25W Power Amplifier as a Versatile RF Solution
In summary, the 25W 860-1400MHz 10pin power amplifier with on and off functionality represents a high-performance RF solution tailored for modern wireless challenges. Its ability to deliver consistent amplification, coupled with intelligent power management and comprehensive monitoring, makes it a preferred choice for demanding applications. Whether used in telecommunications, aerospace, or industrial automation, this 25W power amplifier combines efficiency, durability, and ease of use to meet the evolving needs of advanced RF systems. For engineers seeking a reliable and adaptable amplifier that excels in both fixed and mobile environments, this module stands out as a premier choice, offering the perfect synergy of power, precision, and control.
