High-Performance 700-1050MHz Power Amplifier for Critical RF Applications
nn
The 700-1050MHz power amplifier stands as a pinnacle of RF engineering, designed to meet the rigorous demands of mission-critical systems. Whether deployed in advanced radar arrays, professional communication networks, or precision measurement equipment, this compact module delivers unmatched reliability and spectral purity. Its robust design ensures consistent performance in harsh environments, making it an indispensable component for engineers who require unwavering signal integrity.
nn
At the heart of this system lies a 25W RF amplifier module that combines high gain with exceptional thermal management. The integrated RF module continuously monitors temperature fluctuations, automatically adjusting performance parameters to maintain stable output across a wide operating range. This intelligent design prevents thermal runaway and extends operational lifespan, even during prolonged high-duty cycles.
nn
700-1050MHz Power Amplifier: Key Technical Specifications
nn
Every parameter of this power amplifier has been meticulously optimized. The following table details its core characteristics, providing engineers with the data needed to integrate it into demanding RF platforms.
nn
| Parameter | Specification | Notes |
|---|---|---|
| Frequency Range | 700 – 1050 MHz | Full band coverage |
| Saturated Output Power | 44 dBm (25W) | Minimum rated output |
| Gain | 44 dB (typical) | High linear gain |
| In-Band Flatness | ≤ ±2 dB | Across full frequency range |
| Input/Output VSWR | ≤ 1.5 : 1 | Low reflection characteristic |
| Operating Current | ≤ 3A | At +28V DC supply |
| Maximum Lossless Input | +10 dBm | Do not exceed |
| Operating Voltage | +28V DC | Regulated supply required |
| Power Supply Interface | Feed-through capacitor | EMI suppression |
| RF Port Type | SMA-KFD | Female connector |
| Monitoring Interface | Feed-through capacitor | Analog output |
nn
Spectral Purity and Signal Integrity
nn
In modern RF environments, spurious emissions can cripple system performance. This 700-1050MHz power amplifier achieves outstanding out-of-band spur suppression, with levels below -36 dBm in the 9 kHz to 1 GHz range and below -30 dBm from 1 GHz to 12.75 GHz. Such low spurious output ensures compatibility with sensitive receivers and minimizes interference in co-located equipment. The amplifier’s low VSWR characteristic (≤1.5) further reduces standing wave ratios, preventing power loss and protecting upstream components from reflected energy.
nn
Mechanical and Environmental Resilience
nn

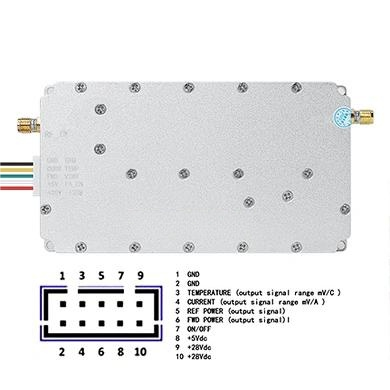

Designed for deployment in field conditions, the amplifier features a rugged housing that withstands shock, vibration, and humidity up to 95% (non-condensing). Its compact dimensions of 125 x 65 x 20 mm (approximately 4.9 x 2.6 x 0.8 inches) allow for seamless integration into tight enclosures or rack-mount systems. The 10-pin interface provides straightforward connections for power, monitoring, and RF signals, reducing installation complexity.
nn
| Environmental Parameter | Rating | Condition |
|---|---|---|
| Operating Temperature | -10°C to +55°C | Full performance range |
| Storage Temperature | -25°C to +65°C | No condensation |
| Relative Humidity | 5% to 95% | Non-condensing |
nn
Integrated Monitoring and Protection Systems
nn
Reliability is further enhanced by built-in diagnostic features. The amplifier provides real-time current reporting, where the chip translates draw values into a 0-5V analog voltage, enabling precise power consumption tracking. Temperature monitoring uses a linear voltage output scaled at 10 mV per °C, with 500 mV referenced at 25°C. This allows operators to detect thermal drift and trigger over-temperature alarms before performance degradation occurs. Together with its low VSWR tolerance, these features ensure the amplifier operates safely even under fault conditions such as antenna mismatch.
nn
Conclusion: Why Choose This 700-1050MHz Power Amplifier?
nn
Engineers seeking a robust, high-gain solution for the 700-1050MHz band will find this 700-1050MHz power amplifier an exceptional choice. Its combination of 25W output power, 44dB gain, and meticulous spectral control addresses the most stringent requirements of modern RF systems. The integrated thermal management and real-time monitoring capabilities provide peace of mind in critical infrastructure, while the compact form factor simplifies system design. For radar, communications, and precision instrumentation, this amplifier delivers the performance and durability that professional applications demand.
