Ultra-Wideband Performance: The 30MHz-8000MHz Handheld Antenna

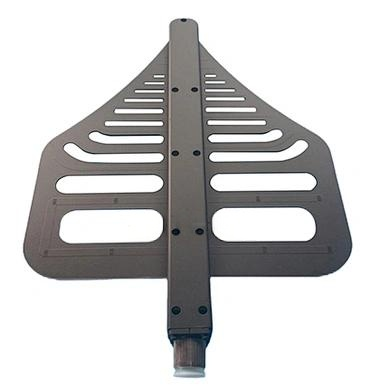

In the demanding world of RF engineering, a reliable antenna is the cornerstone of accurate signal analysis and communication. Enter the 30MHz-8000MHz Handheld Antenna, a professional-grade RF front-end device engineered to excel across an extraordinary frequency span. This unit functions as a high-performance, portable Composite Dipole Antenna, covering everything from shortwave and ultra-shortwave bands to the microwave spectrum. Whether you are conducting field-based RF testing, performing outdoor equipment patrols, or engaging in on-site signal diagnostics, this handheld tool delivers consistent, reliable performance in a lightweight form factor.
What sets this antenna apart is its ability to bridge the gap between broad frequency coverage and precise signal acquisition. The operating range of 30 MHz to 8000 MHz ensures that it can handle a wide variety of tasks, from frequency calibration during electronic device R&D to critical signal reception in remote field settings. It is purpose-built for professionals who require a robust, wideband signal reception solution without the bulk of traditional equipment. The antenna’s integrated vertical polarization method provides superior signal stability compared to many peer products, making it a trusted tool for real-time signal monitoring and outdoor emergency communications.
Technical Specifications and Calibrated Gain Performance
To understand the true capability of this Wideband Handheld RF Antenna, one must examine its precisely calibrated gain performance. The antenna does not offer a single, flat gain figure; instead, it is optimized for different segments of its vast frequency range. This ensures that users receive the best possible signal strength—whether they are hunting for weak signals in the lower bands or leveraging high-gain reception in the microwave spectrum. Below are the critical technical parameters that define its operation.
| Parameter | Specification / Value |
|---|---|
| Frequency Range | 30 MHz ~ 8000 MHz |
| Gain (30 MHz – 150 MHz) | -50 dBi ~ -22 dBi |
| Gain (150 MHz – 500 MHz) | -22 dBi ~ -2 dBi |
| Gain (500 MHz – 1 GHz) | -2 dBi ~ 3 dBi |
| Gain (1 GHz – 8 GHz) | 3 dBi ~ 6 dBi |
| Polarization Method | Vertical Polarization |
| Standing-wave Ratio (SWR) | ≤ 3.0 (typical value) |
| Junctor / Connector | SBMA-K |
| Directional Diagram | Directional |
| Dimension (L x W x H, excl. connector) | 405 mm ± 2 mm x 280 mm ± 2 mm x 32 mm x 2 mm |
| Pigment / Color | Black |
Key Performance Insights
The table above reveals several engineering strengths. The low standing-wave ratio (SWR) of ≤ 3.0 is a critical specification, as it significantly minimizes signal attenuation and ensures efficient RF transmission across the entire band. This means less power is reflected back into the system, resulting in stronger, cleaner signals. Furthermore, the directional radiation pattern focuses signal energy, enhancing reception accuracy even in electromagnetically complex environments. This makes the antenna particularly effective for RF performance verification and on-site diagnostics where isolating a specific signal source is paramount.
Design, Compatibility, and Practical Applications
The structural design of this 30MHz-8000MHz Handheld Antenna achieves an optimal balance of utility and durability. With dimensions of 405mm (±2mm) by 280mm (±2mm) and a slim profile, it is light enough for extended handheld use yet robust enough to withstand the rigors of field work. The inclusion of an SBMA-K connector provides broad compatibility with most commercial RF test instruments, eliminating the need for cumbersome adapters. Whether you are working in a controlled lab setting or a remote outdoor location, this antenna offers a seamless connection to your existing equipment.
In practice, this antenna shines in a variety of demanding scenarios. For engineers conducting RF performance verification, the ability to switch between frequency bands without changing hardware saves valuable time. In outdoor emergency communications, its reliable signal capture can be the difference between a successful relay and a missed transmission. For real-time signal monitoring, the directional nature of the antenna allows operators to pinpoint the source of interference or track moving transmitters. From the initial research and development phase to the final field test, this antenna provides professional users with a comprehensive and robust solution for all their wideband signal reception needs.
Conclusion: A Reliable Tool for Professional RF Work
The 30MHz-8000MHz Handheld Antenna is more than just a piece of equipment; it is a versatile instrument that adapts to the user’s requirements. Its ultra-wide frequency coverage, segmented gain optimization, and durable, portable design make it an indispensable asset for any professional working with RF signals. Whether you are calibrating sensitive electronics on the bench or hunting for critical signals in the field, this antenna delivers the performance, stability, and reliability you demand. It stands as a benchmark for what a portable Composite Dipole Antenna should be: precise, powerful, and practical.
