Full Frequency Coverage: The Core of Reliable Signal Management
nnIn today’s interconnected world, maintaining precise and stable signal control is not just a technical requirement—it is a critical necessity. From secure government facilities to high-stakes public safety zones, any deviation in signal transmission can lead to compromised operations, security vulnerabilities, or system failures. This is where the concept of full frequency coverage becomes indispensable. By offering efficient management across the entire electromagnetic spectrum, full frequency coverage ensures that communication regulation is both effective and resilient. Our 4-band full-frequency 300–6000MHz ultra-wideband module stands as a robust solution, engineered to deliver unwavering performance in the most demanding environments.nn
The High Power Amplifier Module 1U RACK: Compact Yet Mighty

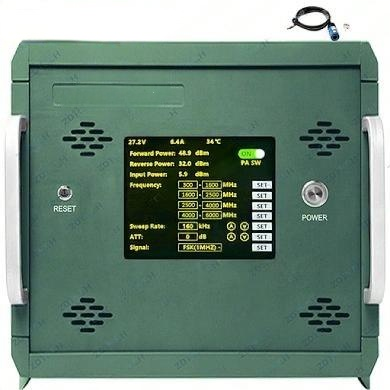

nnDesigned for seamless integration and rapid deployment, the High power amplifier module 1U RACK embodies the perfect balance of power and practicality. Its compact 1U form factor allows it to fit into standard rack enclosures without occupying excessive space, making it ideal for both centralized network hubs and mobile command centers. At its core lies a DDS (Direct Digital Synthesis) function signal generator, which provides exceptional frequency agility across the 300–6000MHz range. This generator supports fully customizable frequency and power settings, ensuring that operators can adapt to changing requirements on the fly. Controlled through an intuitive touchscreen interface and supported by a robust RS485 communication bus, this module offers complete monitoring and real-time parameter adjustment. The result is a system that not only streamlines signal transmission but also fortifies essential environments against interference and disruption.nn
Technical Excellence: Key Specifications and Performance Metrics
nnThe technical backbone of this amplifier module is built for precision. With a gain of 50±1.0dB, low in-band fluctuation of ≤2.5dB, and outstanding spurious suppression, it delivers a clean, stable output essential for mission-critical operations. The integrated radio frequency signal generator ensures that every frequency is produced with pinpoint accuracy, effectively standardizing signal behavior and safeguarding communication channels. Below is a comprehensive breakdown of its core specifications:nn
| Parameter | Specification | Remark |
|---|---|---|
| Working Frequency | 300–6000MHz | Customizable per application |
| Output Power | 100W (CW) | Adjustable 10W–100W via software |
| Operating Voltage | 28V (range 24–36V) | Power supply interface required |
| Conversion Efficiency | ≥42% @100W | High-efficiency operation |
| Gain | 50±1.0dB | Stable across band |
| In-Band Fluctuation | ≤2.5dB (peak) | Ensures signal consistency |
| Spurious Emissions (In-Band) | ≤-15dBm/1MHz | Measured at max output power |
| Spurious Emissions (Out-of-Band 9KHz–1GHz) | No higher than normal noise floor | Complies with spectral purity standards |
| Spurious Emissions (1G–12.75GHz) | No higher than normal noise floor | Supports adjacent spectrum integrity |
| Max Allowable Input Power | ≥+10dBm (1 min without damage) | Robust input protection |
| Input VSWR | ≤1.35 | +28V, standard network output -10dBm |
| Output VSWR | ≤1.35 | Power On, dual directional coupler test |
| Working Environment Temperature | -10 to +65°C | Cold start functionality verified |
| Gain Stability | ±1.5dB @-40°C to +65°C | Thermally compensated design |
| Power Stability | ±1dB @-40°C to +65°C | Reliable output across extremes |
| Power Consumption | ≥8.5A @+28Vdc (CW 100W) | High current capability required |
| Communication Interface | RS485 (7W2 Male; pin 1:485A, pin 2:485B) | Bi-directional control |
| RF Output Connector | N-Female | With LED indicators: POWER, RUN, ALARM |
| Physical Dimensions/Weight | Integrated module fixed on radiator | Compact 1U rack form factor |
nn
Advanced Monitoring and Control: Safeguarding Your Communication Network
nnBeyond raw specifications, this module excels in intelligent monitoring and autonomous protection. The system is equipped with a comprehensive alarm suite that ensures operational continuity even under fault conditions. Here is an overview of the monitoring functions:nn
| Function | Description | Remark |
|---|---|---|
| Amplifier Switch | Turn amplifier on/off remotely | Software-controlled |
| Alarm Switch | Enable or disable alarm system | User-configurable |
| Downlink Power Control | Set max output power (adjust range ≥20dB) | High/medium/low power levels selectable |
| Amplifier Over-Temperature Alarm | Shutdown threshold configurable; auto-shutoff >85°C; auto-restore at 65°C | Thermal protection |
| Amplifier Over-Power Alarm | Triggers when output power exceeds ALC threshold by 2dB | Power limiting protection |
| Standing Wave Alarm | Auto shutoff when VSWR >4.0 | Antenna mismatch protection |
| Overcurrent Alarm | Auto shutoff when current exceeds 12A | Prevents electrical damage |
| Under-Power Alarm | Alerts when output power <33dBm | Performance degradation detection |
| Overvoltage Alarm | Auto shutoff when voltage exceeds 32V | Voltage surge protection |
| Undervoltage Alarm | Monitors module voltage level | Low voltage warning |
nn
Query Parameters and Signal Generator Modes
nnOperators can query critical real-time data to maintain situational awareness. Additionally, the DDS signal generator supports multiple frequency setting modes for ultimate flexibility:nn
| Query Parameter | Specification | Details |
|---|---|---|
| Amplifier Switch Status | ON/OFF query | Returns current state |
| Output Power Level | Range: Pomax+2 to Pomax-20 | Detection accuracy ±1dB |
| Standing Wave Ratio (VSWR) | Normal: 1.2; Mismatch: 4.0 | Load status monitoring |
| Internal Temperature | Range: -40°C to +100°C | Detection error ±3°C |
| ALC Value | Equal to actual set ALC threshold | Automatic level control feedback |
| Voltage Detection | Working voltage reading | Precise measurement |
| Current Detection | Operating current reading | Power consumption tracking |
nn
| Signal Generator Mode | Description | Frequency & Bandwidth |
|---|---|---|
| Mode 1: Single Frequency | Set any single frequency point | Accuracy 1MHz; max bandwidth 500MHz; up to 6GHz |
| Mode 2: Broadband Sweep | Programmable frequency sweep with defined interval and step | Full bandwidth support |
| Mode 3: Multiple Sub-Band | Set up to 4 sub-frequency segments within bandwidth | Incremental sub-segment configuration |
nn
n
Communication Protocol: RS485 interface; Pin assignment: +28V, – GND; 1:485A, 2:485B.
nn
Conclusion: Maximizing Performance with Full Frequency Coverage
nnWhen reliability is non-negotiable, full frequency coverage delivers the signal management solutions that modern operations demand. This High power amplifier module 1U RACK integrates a sophisticated DDS signal generator, comprehensive monitoring, and robust hardware into a single, efficient package. Whether deployed in secure facilities, public safety zones, or industrial communication networks, its ability to maintain stable, accurate output across a wide spectrum makes it an indispensable tool for any organization that prioritizes uninterrupted communication. By combining precision engineering with intelligent alarm systems, this module ensures that critical signals remain clear, controlled, and secure—even under the most challenging conditions.
