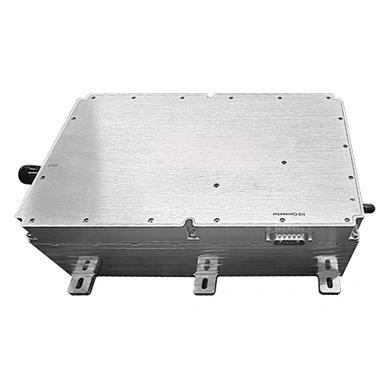

Unleashing Unmatched Power: The 50dBm Power Amplifier for Modern RF Demands
nn
In the rapidly evolving landscape of wireless communications and RF testing, the need for robust, reliable, and high-performance amplification has never been greater. Enter the 50dBm power amplifier—a 100W PA powerhouse meticulously engineered to dominate demanding RF applications across an ultra-wideband frequency range of 400 to 6000 MHz. Whether you are pushing the boundaries of 5G, optimizing LTE networks, enhancing WiFi coverage, or conducting rigorous EMC testing, this amplifier stands as a testament to precision engineering and advanced GaN technology.
nn
What sets this 50dBm power amplifier apart is its ability to deliver exceptional power output, linearity, and efficiency without compromising on stability. The GaN (Gallium Nitride) semiconductor technology at its core ensures superior performance characteristics, including high breakdown voltage, excellent thermal conductivity, and the ability to handle high-power density. This makes the 100W PA amplifier not just a tool, but a strategic asset for engineers and technicians who require consistent results in high-stakes environments.
nn
From laboratory testing to defense applications, the versatility of this rack mount amplifier is unmatched. It supports diverse signal modes, including continuous wave (CW), pulse, and high-order modulation schemes, all while maintaining low harmonic distortion and spurious emissions. The rugged, forced-air cooling system ensures reliable operation even under continuous high-power conditions, making it a dependable partner for long-duration tests and 24/7 deployments.
nn
Exceptional Performance Across a 400-6000MHz Spectrum
nn
Engineered for Precision and Stability
nn
One of the standout features of this 100W PA amplifier is its superior gain flatness across the entire 400-6000 MHz spectrum. With a typical saturated output power of 51 dBm and a minimum of 49 dBm at 0 dBm input, the 50dBm power amplifier ensures that your signal remains robust and clear. The gain flatness, typically within ±2.5 dB, guarantees consistent amplification without significant variations that could distort your signal integrity.
nn
Moreover, the small signal gain reaches an impressive typical value of 64 dB at -40 dBm input, with flatness deviations of only ±3.5 dB. This level of precision is critical for applications requiring exacting standards, such as spectrum analysis, pre-compliance testing, and sensitive communication links. The built-in isolation of 90 dB when the unit is disabled further enhances system safety and prevents unwanted signal leakage.
nn
Comprehensive Technical Specifications Integrated for Clarity
nn
To fully appreciate the capabilities of this 100W PA amplifier, it is essential to review its detailed technical parameters. The following table consolidates the key specifications, ensuring you have all the data needed for informed decision-making.
nn
| Parameter | Specification (Typical / Min-Max) | Conditions / Notes |
|---|---|---|
| Frequency Range | 0.4 – 6 GHz | Ultra-wideband coverage |
| Saturated Output Power (Psat) | 51 / 49 dBm (Typ./Min) | @ Pin = 0 dBm |
| P1dB Output Power | 47 / 44 dBm (Typ./Min) | 1 dB compression point |
| Gain (Large Signal) | 51 / 49 dB (Typ./Min) | @ Pin = 0 dBm |
| Gain Flatness | ±2.5 dB (Typ.) | @ Pin = 0 dBm |
| Small Signal Gain | 64 dB (Typ.) | @ Pin = -40 dBm |
| Small Signal Gain Flatness | ±3.5 dB (Typ.) | @ Pin = -40 dBm |
| Isolation (Disabled Status) | 90 dB (Typ.) | Prevents signal leakage |
| Input Power (Operating) | 0 dBm (Typ.) | Maximum safe input: Pin ≤ 10 dBm |
| 2nd Harmonic Suppression | -20 / -15 dBc (Typ./Max) | @ Pout = 45 dBm |
| 3rd Harmonic Suppression | -25 / -20 dBc (Typ./Max) | @ Pout = 45 dBm |
| Spurious Suppression | -70 / -65 dBc (Typ./Max) | @ Pout = 45 dBm |
| Input VSWR | 1.5:1 / 2:1 (Typ./Max) | Ensures low reflection |
| Supply Voltage | 32 V (Typ.) | Standard DC input |
| Power Consumption | 550 W (Typ./Max) | @ Pin = 0 dBm |
| Load VSWR Tolerance | ≤ 3:1 | Undamaged operation |
| Thermal Protection | 75°C degradation threshold | Auto-surge safeguards |
| RF Connectors | Input: SMA (F); Output: TYPE N (F) | Industry-standard |
| Power Supply Connector | D-Sub 7W2 | Robust and secure |
| Control Connector | D-Sub 7W2 | For remote management |
| Dimensions (LxWxH) | 276.0 × 206.5 × 100.0 mm (±0.5) | Compact rack mount form factor |
| Weight | Max. 6000 g | Lightweight for its power class |
| Finishing | Alloy iridite | Corrosion-resistant |
| Operating Temperature | -10°C to +55°C | Wide thermal range |
| Storage Temperature | -40°C to +75°C | Robust storage capability |
| Heat Dissipation | Forced-air cooling | Reliable high-power operation |
| Waterproof Grade | IP67 | Dust-tight and water-resistant |
| Environmental Compliance | N/A | Meets standard requirements |
nn
Robust Design with Comprehensive Protection
nn
The reliability of this rack mount amplifier is bolstered by a suite of built-in protection features. Over-heating, over-current, and over-VSWR safeguards ensure that the 50dBm power amplifier remains operational even in harsh environments. The forced-air cooling system is engineered to maintain optimal thermal performance, preventing degradation and extending the lifespan of critical components. With an IP67-rated enclosure, the amplifier is protected against dust ingress and temporary water immersion, making it suitable for both indoor lab settings and demanding field deployments.
nn
Ideal for Critical RF Applications
nn
Whether you are conducting EMC testing, driving antennas for 5G NR trials, or amplifying signals for defense communications, this 100W PA amplifier is built to deliver. Its ability to maintain low harmonic and spurious emissions ensures compliance with stringent regulatory standards, while the ultra-wideband frequency range allows for multi-band operation without the need for multiple amplifiers. The combination of advanced GaN technology, precise gain flatness, and comprehensive protection makes this 50dBm power amplifier the go-to solution for professionals who demand nothing less than excellence.
nn
Conclusion: The Ultimate 100W PA Amplifier for Modern Engineers
nn
In summary, the 50dBm power amplifier is more than just a high-power RF component—it is a complete solution designed to meet the rigorous demands of modern wireless systems, testing environments, and defense applications. With its GaN-based architecture, ultra-wideband coverage from 400 to 6000 MHz, and comprehensive protection features, this 100W PA amplifier offers unmatched performance, reliability, and versatility. The rack mount amplifier form factor, combined with industry-standard connectors and a durable IP67 enclosure, ensures seamless integration and long-term durability.
nn
For engineers and technicians seeking a high-efficiency, high-performance amplification solution that does not compromise on quality, this 100W PA amplifier is the clear choice. Embrace the power of advanced GaN technology and elevate your RF systems to new heights with the ultimate 50dBm power amplifier.
