Indoor Omnidirectional Ceiling Antenna for 2G/3G/4G/5G DAS Systems
nn
In the rapidly evolving landscape of wireless communications, indoor signal coverage is paramount. Our latest series of indoor omnidirectional ceiling antennas is engineered to meet the demanding requirements of modern multi-system networks. Covering mainstream communication frequency bands from 698 to 3800 MHz, and up to 2700 MHz in select models, this antenna series ensures reliable and stable performance for 2G, 3G, 4G, and 5G deployments. Its compact design and easy installation make it an ideal choice for indoor DAS (Distributed Antenna Systems) in offices, shopping malls, hotels, and public venues.
nn
indoor omni ceiling antenna: Broadband Frequency Performance
nn
One of the standout features of this indoor omni ceiling antenna series is its exceptional broadband frequency coverage. Models MOP-OCA-738-3/6NF(MF/DF) and MOP-OCA-727-2/5NF(MF/DF) are tailored to support a wide range of bands. The MOP-OCA-738 variant operates from 698 to 960 MHz and 1710 to 3800 MHz, while the MOP-OCA-727 covers 698 to 960 MHz and 1710 to 2700 MHz. This versatility ensures compatibility with legacy 2G and 3G systems, as well as modern 4G LTE and 5G NR networks. The antenna’s vertical polarization and 360° horizontal omnidirectional radiation pattern provide uniform coverage, eliminating dead zones and ensuring seamless connectivity.
nn
Key Electrical Specifications
nn
To achieve stable and low-interference signal transmission, this indoor omni ceiling antenna delivers reliable electrical performance. With a voltage standing wave ratio (VSWR) of ≤1.8 and third-order passive intermodulation (PIM) of ≤-150 dBc at 2×20W, the antenna minimizes signal reflection and distortion. The maximum input power is 50W, and the characteristic impedance is 50 ohms, ensuring compatibility with standard feeder systems. The following table details the electrical and mechanical specifications for both models.
nn
| Specification | MOP-OCA-738-3/6NF(MF/DF) | MOP-OCA-727-2/5NF(MF/DF) |
|---|---|---|
| Frequency Range (MHz) | 698-960 / 1710-3800 | 698-960 / 1710-2700 |
| Gain (dBi) | 3 / 6 | 2 / 5 |
| Polarization | Vertical | |
| Horizontal Beamwidth (°) | 360 | |
| Vertical Beamwidth (°) | 85 / 35 | |
| VSWR | ≤1.8 | |
| 3rd Order PIM (dBc @ 2×20W) | ≤-150 | |
| Maximum Input Power (W) | 50 | |
| Impedance (Ω) | 50 | |
| Connector Type | N-type, 4.3-10, or 7/16 DIN Female | |
| Dimensions (mm) | Φ172 × 70 | |
| Weight (kg) | 0.5 | |
| Radome Material | ABS, White (RAL9003) | |
| Mounting Kit | Ceiling via hole (standard) | |
| Operational Temperature (°C) | -40 to 55 | |
| Operational Humidity (%) | Up to 95% | |
nn
Mechanical Design and Installation Flexibility
nn

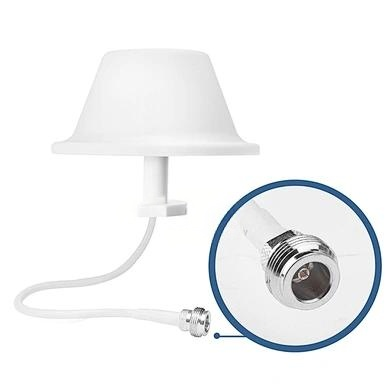

Designed with ease of installation in mind, the indoor omni ceiling antenna features a lightweight and low-profile construction. The white ABS radome (RAL9003) blends seamlessly with most indoor ceilings, while the dimensions of Φ172×70 mm and weight of just 0.5 kg make it easy to handle. The standard ceiling hole mounting kit is included, allowing for quick and secure installation. Additionally, the antenna offers multiple connector options—N-type, 4.3-10, or 7/16 DIN female—to adapt to various feeder systems and network configurations. This flexibility ensures that the antenna can be deployed in diverse environments without requiring custom modifications.
nn
Applications and Benefits
nn
This antenna series is specifically designed for indoor DAS systems, providing robust coverage for 2G GSM, 3G, 4G LTE, and 5G networks. Its broadband frequency range makes it suitable for both public and private wireless networks, including Wi-Fi systems operating in the 2.4 GHz and 5 GHz bands. Key benefits include:
n
- n
- Broadband frequency coverage from 698 to 3800 MHz, supporting multiple network generations simultaneously.
- Lightweight and compact design for easy integration into ceiling installations.
- Low VSWR and PIM for minimal signal loss and interference.
- Choice of connectors to match existing infrastructure.
n
n
n
n
nn
Conclusion
nn
The indoor omni ceiling antenna series by MOP represents a sophisticated solution for indoor coverage challenges. With its broad frequency support, reliable electrical performance, and user-friendly design, it is an excellent choice for network operators and integrators looking to enhance connectivity in commercial and public spaces. Whether upgrading an existing DAS or deploying a new 5G system, this antenna delivers the performance and flexibility needed to ensure consistent, high-quality signal coverage.
