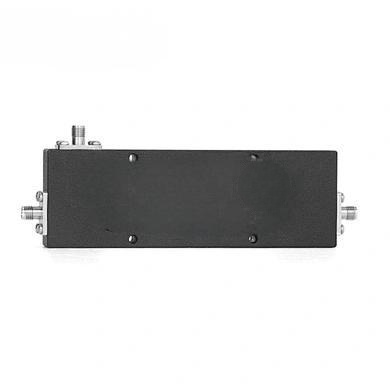

China Moneypro 698-4000MHz 10dB Directional Coupler with SMA Female connector

Enhancing Network Reliability with a High-Performance 10dB Directional Coupler for 3G Signal Coverage

nnIn the fast-evolving world of telecommunications, the backbone of reliable connectivity often lies in the details of its infrastructure. For engineers and network architects focused on indoor RF distribution, the quality of passive components can make or break a system’s performance. This is where a specialized directional coupler (10dB) emerges as an unsung hero, particularly in environments demanding robust 3G signal coverage and broader telecom coverage. Designed as a core passive component for indoor systems, this device bridges the gap between raw signal power and precise distribution, ensuring that every connected user experiences stable, high-quality communication.nn

Broadband Versatility for Modern Communication Bands

nnThe first hallmark of this coupler is its impressive frequency agility. Covering the full 698-4000MHz range, it is engineered to support a wide array of mainstream communication bands, from LTE and 5G sub-6 GHz to legacy 3G networks. This wide bandwidth eliminates the need for multiple, band-specific components, simplifying inventory and installation processes. Its design ensures optimal performance across all these frequencies, making it a future-proof solution as networks evolve.

nWhether you are deploying a new indoor system or upgrading an existing one to handle denser traffic, this coupler’s compatibility ensures seamless integration. It operates as a reliable node for signal splitting and monitoring, reducing the complexity of RF link construction while maintaining the integrity of the original signal.nn

Critical RF Specifications in a Structured Overview

nnTo truly appreciate the engineering behind this component, one must examine its technical parameters. Below is a comprehensive breakdown of the specifications for this directional coupler, particularly the 10dB variant, alongside its family of models. This data highlights the precision and robustness that make it suitable for demanding telecom environments.nn

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

nn

Precision Engineering for Signal Integrity and Low Loss

nnThe 10dB directional coupler is not just about coverage; it is about quality. Equipped with SMA female 50Ω connectors, it ensures a secure, low-impedance match with standard test cables and system components. The coupling accuracy of ±1.2dB for the 10dB variant guarantees that the sampled signal is a true representation of the main line. This precision is vital for monitoring, where even minor deviations can lead to incorrect power readings and network adjustments.

nFurthermore, the low insertion loss of ≤1dB ensures that the majority of the signal power reaches its intended destination rather than being dissipated as heat. When combined with high directivity (≥15dB), the coupler effectively isolates the forward and reverse signals, minimizing reflected power that could cause distortion or interfere with base station operations. A VSWR of ≤1.3 confirms excellent impedance matching across the entire band, reducing signal reflections that degrade system performance.nn

Robust Power Handling and Intermodulation Suppression for 3G Signal Coverage

nnIn high-density communication environments, such as stadiums, airports, or office towers, signal power levels can be substantial. This coupler is built to handle it, supporting 300W of average power and up to 1000W in peak conditions. This headroom ensures reliable operation even during traffic bursts or when multiple carriers are combined.

nEqually critical is its Passive Intermodulation (PIM) performance, specified at better than -150dBc @ 2×+43dBm. PIM is a form of nonlinear distortion that can introduce noise and interference, especially in systems where multiple high-power signals coexist. By suppressing PIM to such low levels, the coupler protects the sensitivity of receivers and maintains the clarity required for efficient 3G signal coverage. This makes it an indispensable tool for network optimization teams aiming to maximize throughput and minimize dropped calls.nn

Durable Construction for Indoor Telecom Coverage Projects

nnOperating reliably across a wide temperature range from -25°C to +65°C, this component is built to endure the often-variable conditions inside equipment rooms, cabinets, or along riser shafts. Its construction is robust enough for long-term deployment in indoor telecom coverage projects, where maintenance access may be limited. From signal testing in lab environments to permanent installation in distributed antenna systems (DAS), the coupler provides a reliable interface for splitting signals for multiple antennas or monitoring network health without disrupting service.nn

Conclusion: A Core Component for Future-Proof Communication Systems

nnIn summary, the directional coupler (10dB) stands out as a high-performance solution for any professional involved in designing or maintaining indoor RF systems. Its broad frequency coverage, stringent electrical tolerances, and high power handling capabilities directly address the challenges of modern 3G signal coverage and beyond. By incorporating this component into your network architecture, you are investing in signal clarity, system stability, and operational efficiency. Whether for upgrading existing infrastructure or building new, high-reliability networks, this coupler delivers the precision and durability required to keep communications flowing smoothly and robustly. It is more than a component; it is a foundational element for enhancing the stability and coverage efficiency of tomorrow’s communication systems.
