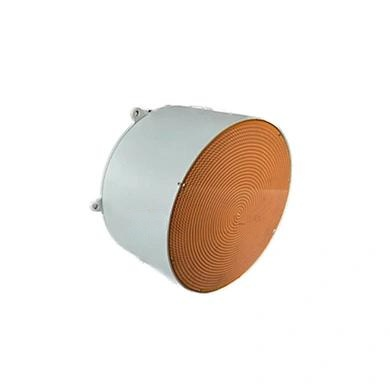

Why a Planar Helical Antenna is Your Best Choice for Wideband Signal Reception
nnIn the rapidly evolving landscape of wireless communication, the demand for reliable, versatile antennas has never been greater. Whether you are managing an industrial IoT deployment, maintaining outdoor communication base stations, or conducting precise electronic testing, the quality of your signal reception dictates the success of your entire operation. Enter the Planar Helical Antenna, a high-performance device engineered to meet these exacting demands. Its core advantage is a straightforward yet profound breakthrough: it effortlessly covers an ultra-wide frequency range of 0.1 to 2GHz. This is not merely a specification; it is the key to unlocking seamless performance across multiple applications. This 0.1~2GHz Antenna is no longer a niche component but a universal solution, capable of adapting to the data interaction of industrial sensors, the signal relaying of remote base stations, and the accurate signal capture of lab instruments.nn
Understanding the Heart of the Antenna: Right-Hand Circular Polarization
nnOne of the most critical design features of this Planar Helical Antenna is its adoption of Right-Hand Circular Polarization (RHCP). To appreciate its importance, consider the performance of traditional linear polarization antennas. In environments like dense urban centers or industrial floors filled with metal machinery, signals bounce, reflect, and scatter. This leads to a destructive phenomenon known as multipath fading, where the original signal is drowned out by its own echoes. An RHCP antenna, like the one we are discussing, fundamentally changes the game. Its circular nature means it is inherently less sensitive to signal reflections. This translates directly into stronger anti-interference capability, allowing the antenna to maintain a stable, clear connection even in the most chaotic electromagnetic environments. For applications requiring absolute reliability, this is a non-negotiable advantage.nn
The 0.1~2GHz Antenna: Perfectly Balanced Performance
nnWhat truly sets this 0.1~2GHz Antenna apart is its extraordinary balance of signal clarity and coverage. The key metric here is the Voltage Standing Wave Ratio (VSWR), a measure of how efficiently the antenna transmits and receives power. With a VSWR of ≤ 2 (typical value), this antenna exhibits low-loss characteristics, ensuring that the vast majority of the signal energy is captured, not wasted as heat. This low-loss performance is directly complemented by its gain profile. Instead of a flat, uninspiring specification, this antenna offers a steadily increasing gain as the frequency rises. This ensures strong performance across its entire range, culminating in excellent long-distance coverage at higher frequencies. This combination of low loss and broad gain makes it ideal for both near-field sensor integration and far-field remote sensing and monitoring.nn
Product Specifications and Technical Data
nn| Parameter | Value |n| :— | :— |n| Operating Frequency (GHz) | 0.1 ~ 2 |n| Standing Wave (VSWR) | ≤ 2 (typical) |n| Polarization | Right-Hand Circular Polarization |n| Gain (170MHz and above) | ≥ -35 dB |n| Gain (300MHz and above) | ≥ -20 dB |n| Gain (400MHz and above) | ≥ -10 dB |n| Gain (1200MHz and above) | ≥ 0 dB |n| Reference Dimensions | 180mm × 180mm × 95mm (±2mm) (excluding connectors) |n| Antenna Cavity Material | Aluminum Alloy |n| Operating Temperature | -20°C to +55°C |n| Storage Temperature | -20°C to +70°C |n| Interfaces | SMA-50K |n| Color | Sea Gray |n| Weight | ≤ 650g |nn
A Design for Real-World Deployments
nnBeyond its impressive electrical performance, the Planar Helical Antenna is built for the practical demands of installation, longevity, and environmental resilience.nn
Lightweight and Robust Construction
nnOne of the primary barriers to deploying high-performance antennas is their size and weight. This antenna elegantly sidesteps that challenge. Its dimensions are a compact 180mm×180mm×95mm (±2mm, excluding connectors), and it weighs just ≤ 650g. This lightweight construction means you can install it on a variety of carriers, from device casings and camera housings to custom-built brackets. The cavity is crafted from aluminum alloy, a material chosen for both its high strength and its excellent heat dissipation properties. This prevents overheating, ensuring stable performance even under continuous high-power operation.nn
Resilience in Any Climate
nnThe build quality extends to its exterior. The sea gray coating is not just for aesthetics; it provides superior corrosion resistance, making the antenna suitable for outdoor installations in the open air where it will be exposed to wind, rain, and temperature swings. With an operating temperature range of -20℃ to +55℃ and a storage range of -20℃ to +70℃, this antenna is a rugged tool, not a delicate instrument. Whether installed on a factory floor or a remote mountaintop, it will maintain stable performance throughout the year.nn
A Versatile Solution for Diverse Fields
nnThis combination of wide frequency coverage, robust polarization, and durable construction makes the Planar Helical Antenna a truly universal component. It is widely applicable to fields such as communication, IoT, electronic testing, and remote sensing monitoring. In conclusion, when you choose this 0.1~2GHz Antenna, you are not just selecting a part for a system. You are selecting a proven, high-performance solution that guarantees signal stability, reduces installation headaches, and ensures long-term reliability. It is the definitive answer for any professional seeking to eliminate signal uncertainty and build a truly robust wireless infrastructure.
