Why the 4×4 MIMO Ceiling Antenna is a Game-Changer for Indoor Wireless

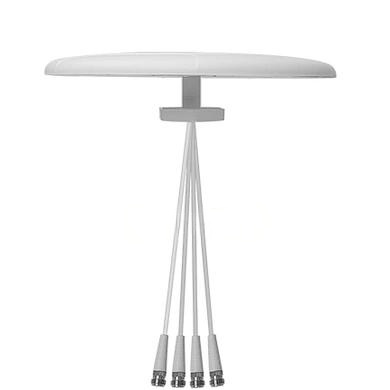

The 4×4 MIMO Ceiling Antenna (Model: MOP-MCA-660-4NF) is not just another antenna—it is a high-performance omnidirectional powerhouse engineered for modern wireless communication systems. Whether you are deploying a 5G indoor MIMO antenna network or integrating into a distributed antenna system (DAS) solution, this antenna stands out for its versatility and reliability. With a wide frequency range covering 698 to 6000 MHz, it supports multiple critical bands for 4G LTE, 5G NR, and Wi-Fi 6/6E, making it an ideal choice for enhancing indoor coverage in diverse environments.
The omnidirectional antenna pattern delivers 360-degree horizontal coverage, ensuring no dead zones. The vertical beamwidth varies from 90 degrees at lower frequencies to 45 degrees at higher bands, which optimizes signal distribution in multi-floor settings like office towers or hospitals. Each of its four independent ports features linear polarization (times four), enabling robust MIMO ceiling antenna performance that boosts data throughput and reduces multipath interference. With gain ranging from 2 dBi to 4.5 dBi across operational bands, this antenna strikes a perfect balance between coverage and capacity—essential for high-density venues like shopping malls, airports, and enterprise campuses where a 5G indoor MIMO antenna is critical.
Key Specifications for a Distributed Antenna System (DAS)
Identifying the right omnidirectional antenna for a distributed antenna system (DAS) requires close attention to critical specifications. The MOP-MCA-660-4NF excels in key metrics that ensure top-tier performance. Its antenna polarization scheme—linear times four—is fully compatible with MIMO ceiling antenna configurations, while isolation figures exceed 20 dB at lower bands and 30 dB at higher bands, minimizing cross-talk between ports. This is vital for 5G indoor MIMO antenna setups where signal integrity is paramount.
The VSWR of ≤1.8 and PIM performance of ≤-153 dBc reflect high signal integrity, reducing energy loss and passive intermodulation—a must for DAS installations in interference-prone environments like stadiums or industrial facilities. Mechanically, the antenna features a low-profile design (just 22 mm in height) and a lightweight 1.2 kg ABS radome, allowing for discreet ceiling mounting that blends seamlessly into commercial interiors. Unlike directional antennas, this omnidirectional antenna sacrifices no coverage flexibility, making it a preferred choice for distributed antenna system integrators who need uniform signal distribution without complex azimuth adjustments.
Technical Specifications at a Glance
To help you evaluate this 4×4 MIMO ceiling antenna for your project, all product parameters are summarized in the table below:
| Parameter | Value |
| — | — |
| Frequency Range | 698-960 MHz / 1695-2700 MHz / 3300-4000 MHz / 4800-6000 MHz |
| Gain | 2±0.5 dBi / 3±0.5 dBi / 4±1.0 dBi / 4.5±1.0 dBi |
| Polarization | Horizontal: Omnidirectional (360°) / Vertical: 90°, 85°, 45°, 45° |
| VSWR | ≤1.8 |
| Isolation | >20 dB / >20 dB / >30 dB / >30 dB |
| PIM, 3rd Order, 2*20W | ≤-153 dBc |
| Maximum Power | 100 W |
| Impedance | 50 ohm |
| Connector Type | N-female ×4 |
| Dimension | Approx. Φ360 × 22 mm |
| Weight | 1.2 kg |
| Mounting Kit | Ceiling, via hole (standard) |
| Radome Material and Color | ABS, White, RAL9003 |
| Operation Temperature | -55°C to 60°C |
| Operational Humidity | <95% |
Real-World Applications for the 5G Indoor MIMO Antenna
This 4×4 MIMO ceiling antenna is engineered for scenarios demanding reliable indoor wireless connectivity. In 5G indoor MIMO antenna deployments, its multi-band support—such as 3300-4000 MHz for the 5G n78 band—and MIMO ceiling antenna capabilities enable high-speed, low-latency networks in smart factories and enterprise campuses. For distributed antenna system (DAS) projects like airports or stadiums, the omnidirectional antenna ensures seamless handoffs between zones, while antenna polarization diversity mitigates signal fading.
Healthcare facilities benefit from its wideband coverage for IoT medical devices, such as patient monitoring systems. Retail spaces leverage its 5G indoor MIMO antenna performance to support augmented reality (AR) applications that enhance customer engagement. The antenna’s rugged design—with an operational temperature range of -55°C to 60°C—also suits industrial warehouses where temperature fluctuations are common, ensuring consistent performance. Whether part of a DAS or a standalone MIMO ceiling antenna solution, this model delivers future-proof performance for evolving wireless standards, from sub-6GHz 5G to next-generation Wi-Fi.
In conclusion, the 4×4 MIMO Ceiling Antenna offers a compelling blend of performance, versatility, and durability. By prioritizing signal integrity through robust isolation and low PIM, it meets the demands of modern distributed antenna systems and 5G indoor MIMO antenna deployments. Its omnidirectional design simplifies installation while maximizing coverage, making it an excellent investment for any indoor wireless project.
