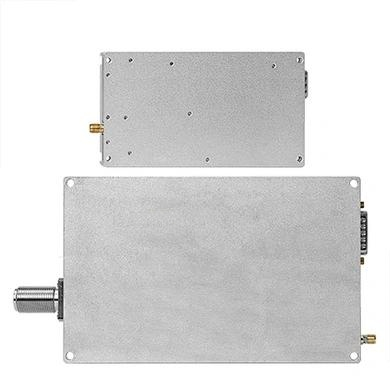

Unleashing High-Power Performance with the 50W Amplifier MOP-PAD-2500/402500-50W
The MOP-PAD-2500/402500-50W is a cutting-edge RF power amplifier that redefines wideband performance. Designed for engineers who demand uncompromising power and efficiency, this 50W amplifier operates across a frequency range of 2500 to 4000 MHz, making it an ideal choice for advanced communication systems, radar arrays, and electronic warfare platforms. By leveraging state-of-the-art Gallium Nitride on SiC (GaN-on-SiC) technology, this module delivers exceptional thermal stability, instantaneous bandwidth, and a peak output of 50W under continuous wave (CW) signal conditions. Whether you are integrating it into a multi-band transceiver or a high-reliability test setup, this 50W amplifier ensures consistent, high-fidelity signal amplification with minimal power loss.
One of the defining characteristics of this 50W amplifier is its robust VSWR performance. With both input and output VSWR maintained at an impressive 2:1 ratio, signal reflection is drastically reduced, allowing for optimal power transfer even under varying load conditions. This feature, combined with a built-in signal isolator, protects sensitive components from reverse power damage, ensuring long-term durability in demanding environments. The 50W amplifier also excels in frequency modulation flexibility, offering a 1600 MHz operating bandwidth that enables seamless deployment across diverse frequency bands without sacrificing performance.
Exceptional Efficiency and Thermal Management in a Compact Design
Thermal management is a critical factor in high-power RF systems, and this 50W amplifier addresses it with a patented cooling design that enhances heat dissipation. Capable of operating continuously at full power, it achieves a typical efficiency of 25%, reducing overall power consumption while maintaining robust output. This makes the 50W amplifier particularly well-suited for applications where energy efficiency and reliability are paramount, such as in aerospace, military, and industrial settings. Its rugged construction ensures resilience against harsh environmental conditions, from extreme temperatures to mechanical stress.
System integrators will appreciate the seamless compatibility of this 50W amplifier with mixer amplifier setups. By enabling enhanced signal processing in transceiver chains, it facilitates clean amplification with low harmonic distortion (≤ -10 dBc) and excellent spurious suppression (≤ -60 dBc). The competitive mixer amplifier price of this module further adds to its appeal, offering a cost-effective solution without compromising on high-end performance. The integrated signal isolator function enhances system protection, while the VSWR stability guarantees consistent operation across varying load impedances.
Key Specifications of the 50W Amplifier at a Glance
The following table outlines the critical electrical specifications of the MOP-PAD-2500/402500-50W, tested under a standard condition of VDC=30V, TC=50°C, and a 50Ω system. All parameters are designed to meet the rigorous demands of modern RF applications.
| Parameter | Unit | Min | Typ | Max | Symbol |
|---|---|---|---|---|---|
| Operating Frequency | MHz | 2500 | – | 4000 | Fo |
| Operating Bandwidth | MHz | – | 1600 | – | BW |
| Peak Output Power @CW Signal | W | – | 50 | – | PSAT |
| Input Power | dBm | – | -2±3 | – | PIN |
| Maximum Input Power @Without Damage | dBm | – | – | 5 | PIN, MAX |
| Power Gain @Input Power 0dBm | dB | – | 48±3 | – | GP |
| Gain Flatness @Input Power 0dBm | dB | – | – | ±3 | ∆GP |
| Efficiency | % | – | 25 | – | EFF |
| Harmonics 1 to N @Output Power 40W | dBc | 10 | – | – | HN |
| Spurious Level | dBc | 60 | – | – | Spur |
| Input VSWR | dB | – | – | 2:1 | VSWR |
| Output VSWR | dB | – | – | 2:1 | VSWR |
| Operating Voltage | V | – | 28-30 | – | VDC |
| Current Consumption @Output Power 40W | A | – | 6.5 | – | IDC |
Versatile Applications and Integration Benefits
The 50W amplifier is engineered for versatility, serving as a cornerstone for broadband repeaters, tactical communications, and electronic warfare systems. Its frequency modulation capability across the entire 1600 MHz bandwidth allows for flexible deployment in multi-band environments, reducing the need for multiple amplifiers. The low distortion and high spurious suppression ensure that signal integrity is maintained, even in congested RF spectrums. For engineers looking to optimize system costs, the competitive mixer amplifier price of this module provides a high-value solution that balances performance with budget constraints.
Conclusion: A Reliable Choice for Mission-Critical RF Systems
In summary, the MOP-PAD-2500/402500-50W 50W amplifier stands out as a high-power, wideband solution that combines GaN efficiency with superior thermal management. Its excellent VSWR performance, integrated signal isolator, and robust construction make it a trusted component for military, aerospace, and industrial applications. Whether you are designing a new transceiver or upgrading an existing system, this 50W amplifier delivers the reliability, power, and flexibility needed to meet the most demanding RF challenges. With its balance of performance and competitive pricing, it is the ideal choice for engineers seeking a high-efficiency, durable amplifier that excels in real-world conditions.
