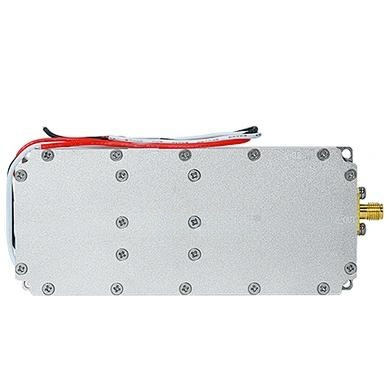

Unleashing the Power of the Broadband RF Power Amplifier Module
In the rapidly evolving landscape of wireless communication, the demand for robust, reliable, and long-range transmission is greater than ever. The broadband RF power amplifier module from MOPTECH rises to this challenge by seamlessly integrating advanced digital LoRa technology with broadband functionality. This fusion creates a high-performance, all-in-one solution designed to excel in demanding technical and industrial environments. By combining the resilience of spread-spectrum modulation with significant power amplification, this module redefines what is possible for persistent, long-distance communication.
How the Anti LoRa FPV Module Enhances Wireless Performance
At the heart of this innovation is the anti LoRa FPV module, a sophisticated unit engineered for stable operation across a specific frequency range. With a saturated output power of approximately 50 watts and consistent gain, it ensures flawless performance in applications that require unwavering signal integrity. The module leverages LoRa technology to achieve low-speed, long-distance, and persistent wireless links. Through spread-spectrum techniques, data signals are distributed over a wider frequency band, significantly boosting transmission range. Simultaneously, low-power design principles guarantee long-term, stable operation without excessive energy consumption.
One of the most striking improvements over previous-generation modules is the dramatic bandwidth expansion—from a mere 100MHz to an impressive 400MHz. This leap greatly enhances communication capabilities, allowing the module to handle more data-intensive tasks and operate in congested spectrum environments. Additionally, the integration of signal shielding power amplifiers simplifies the challenge of using multiple modules within the same frequency band. This makes the design process more straightforward and expands the module’s suitability for a wider array of application scenarios.
Technical Specifications of the Broadband RF Power Amplifier Module
To fully understand the capabilities of this advanced device, let us examine its key technical parameters. Every specification has been carefully engineered to deliver peak performance, durability, and ease of integration.
| Parameter | Value |
|---|---|
| Model Number | MOP-PAL-1100/1500M-50W |
| Working Frequency | 1100 – 1500 MHz |
| Saturated Output Power | 47 ± 1 dBm |
| Gain | 47 ± 2 dB |
| In-band Fluctuation | ≤ 2.0 dB |
| Input VSWR | ≤ 1.5 |
| Working Voltage | DC +28 V |
| Working Current | ≤ 5 A |
| Power Supply Wiring | Red wire (positive); Black wire (ground) |
| Enable Control Voltage | 3.2 V – 5 V (on); 0 V (off) |
| Output RF Port | SMA |
| Operating Temperature | -10 to +55 °C |
| Storage Temperature | -25 to +65 °C |
| Operating Humidity | 5 to 95%, non-condensing |
| Outer Shell Material | Aluminum |
Why These Specifications Matter for Your Application
The broadband RF power amplifier module is not just a collection of numbers—it is a solution designed for real-world challenges. The 50-watt saturated output power ensures adequate signal strength for long-range links, while the robust gain of 47 dB compensates for losses in transmission lines and antenna systems. The wide operating frequency range of 1100-1500 MHz provides flexibility across various ISM bands and custom applications. With low in-band fluctuation and excellent input VSWR, signal integrity is maintained, minimizing reflections and maximizing power transfer. The module’s aluminum housing not only provides outstanding heat dissipation for sustained high-power operation but also enhances physical durability in harsh environments.
Practical Considerations for Integration
Integrating the anti LoRa FPV module into your system is straightforward, thanks to its clear wiring and control logic. The enable control voltage (3.2V-5V to activate, 0V to deactivate) simplifies power management, allowing the module to be turned on or off digitally without mechanical relays. With a modest current draw of ≤5A at 28V, this amplifier module is efficient for its power class, reducing thermal management burdens. Whether used in drone FPV systems, industrial IoT gateways, or remote sensing stations, the module’s rugged construction and precise engineering guarantee reliable performance over time.
Conclusion: Elevate Your Wireless System with the Broadband RF Power Amplifier Module
The broadband RF power amplifier module from MOPTECH represents a significant advancement in wireless communication technology. By marrying LoRa’s long-range, low-power principles with powerful broadband amplification, it delivers a versatile and durable tool for engineers and system integrators. Whether you are extending the reach of an FPV drone, building a remote monitoring network, or enhancing industrial automation, this module offers the performance, simplicity, and reliability required for mission-critical applications. With its expanded bandwidth, robust shielding, and fail-safe design, the anti LoRa FPV module stands ready to transform your wireless capabilities, ensuring that your signals travel farther, clearer, and more efficiently than ever before.
