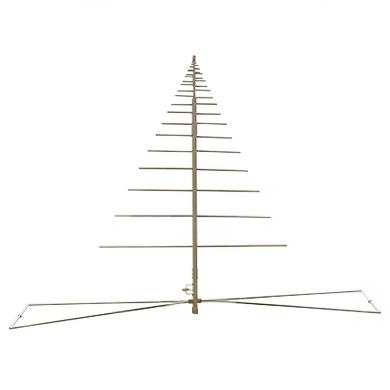

Revolutionizing EMC Testing with the MOPTECH LPDA Antenna
n
In the demanding world of electromagnetic compatibility (EMC) testing, precision and efficiency are non-negotiable. The MOPTECH LPDA antenna stands as a groundbreaking solution, masterfully merging the strengths of log-periodic and biconical designs. This directional log periodic antenna excels in interference reception, delivering a flat gain curve and exceptional directivity across a remarkable bandwidth. If you are grappling with the complexities of radiated emission tests, this antenna is engineered to streamline your workflow and elevate your results.
n
What sets this antenna apart is its ability to transcend the limitations of traditional test equipment. The MOPTECH LPDA covers a staggering frequency range from 25 MHz to 8 GHz, eliminating the need for frequent antenna swaps. This is a game-changer for laboratories and field engineers alike, as it slashes testing time and boosts throughput. The result? Faster, more reliable radiated interference and field strength measurements that you can trust.
n
Key Features and Performance Benefits of the Directional Log Periodic Antenna
n
The MOPTECH LPDA is not just another antenna; it is a robust tool designed for real-world challenges. Its innovative design ensures a symmetrical radiation pattern and higher gain, offering consistency across diverse frequencies. Whether you are testing in a controlled lab environment or tackling obstacles in the field, this log periodic antenna directional remains unfazed by terrain or building interference. This resilience is vital for maintaining uniformity in urban canyons or remote mountainous locations.
n
Beyond performance, flexibility is a cornerstone. MOPTECH provides customization services, tailoring the high gain directional antenna to meet your exact specifications. From broadcast signal monitoring to military communications and telecom network optimization, this antenna adapts seamlessly to your operational needs. Its versatility makes it indispensable for EMC testing, radio communications, and beyond.
n
Technical Specifications Table
n
Below are the detailed parameters that define the MOPTECH LPDA antenna’s capabilities:
n
| Parameter | Value |
|---|---|
| Model | MOP-LPDA-30/7000M-NF |
| Frequency Range (MHz) | 30–7000 MHz |
| Gain (dBi) | 6.4 ± 1.2 dBi |
| Bandwidth | 25–8000 MHz |
| Polarization | Linear |
| Input Impedance | 50 Ω |
| Radiation Pattern | Directional |
| Front to Back Ratio | 20 ± 1 dB |
| VSWR | ≤ 2.5 |
| RF Power Handling Capacity | 100 W |
| 3dB Beamwidth (E-Plane) | 45°–65° (f > 150 MHz), 78° (f < 150 MHz) |
| 3dB Beamwidth (H-Plane) | 90°–120° (f > 150 MHz) |
| Connector | N-F or customized |
| Lightning Protection | DC Ground |
| Boom Material | Aluminum |
| Elements Material | Aluminum |
| Mounting Clamps Position | At the back end of antenna |
| Operating Temperature | –30 to +70 °C |
| Storage Temperature | –40 to +80 °C |
| Humidity | 0–95% |
| Color | White or customized |
n
Understanding the Technical Advantages
n
The MOPTECH directional log periodic antenna is optimized for high-stakes applications. Its low VSWR of ≤ 2.5 ensures minimal signal reflection, while the robust front-to-back ratio of 20 dB enhances directivity and reduces background noise. The broad beamwidth in both E and H planes guarantees wide coverage, making it suitable for complex test setups.
n
Additionally, the antenna’s all-aluminum construction balances durability with lightweight portability. The DC-ground lightning protection adds a layer of safety for outdoor deployments, and the customizable connector options (N-F or tailored) ensure compatibility with existing systems. These features collectively underscore why this log periodic antenna directional is a top choice for professionals.
n
Conclusion: Elevate Your Testing with MOPTECH
n
The MOPTECH LPDA antenna redefines what a directional log periodic antenna can achieve. By merging broadband coverage, high gain, and rugged design, it addresses the toughest EMC testing and communication challenges. Its ability to operate flawlessly across frequencies from 25 MHz to 8 GHz, coupled with customization options, makes it a future-proof investment. Whether you are optimizing telecom networks or conducting military communications, this antenna delivers consistent, reliable performance. Embrace the innovation of MOPTECH and transform your testing efficiency today.
