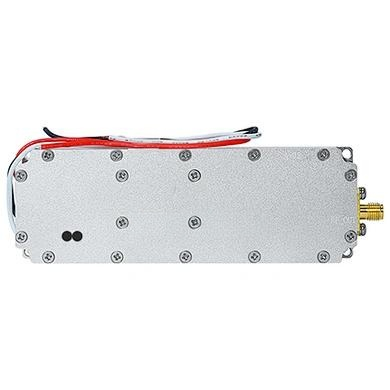

Unleashing the Power of GaN: Introducing the 50W 840-930MHz Wireless Communication Module
In the rapidly evolving landscape of wireless communication, the demand for modules that can deliver ultra-long range, exceptional reliability, and superior power efficiency has never been greater. We are proud to introduce our latest innovation: the high-performance 50W 840-930MHz GaN LoRa wireless communication module. This groundbreaking device is engineered to redefine the standards of industrial IoT, smart grid, and emergency communication systems.
At the heart of this module lies a state-of-the-art GaN power amplifier module, a technological marvel that harnesses the unique properties of Gallium Nitride (GaN) semiconductors. This advanced design allows for extraordinary power density and thermal efficiency, setting a new benchmark for performance. By integrating cutting-edge GaN LoRa integrated module technology, we have created a solution that pairs the high-power capabilities of GaN with the low-power, long-range attributes of LoRa modulation. The result is a device that offers stable output power of up to 50W within the versatile 840-930MHz frequency band, making it ideal for both dense urban and remote rural deployments.
This isn’t just another RF module; it is a revolutionary GaN LoRa integrated module solution. The synergy between the GaN amplifier and LoRa technology provides industry-leading performance in three critical areas: transmission range, power efficiency, and thermal stability. With the ability to maintain robust communication links over vast distances—even through challenging environments—this module ensures your network remains connected when it matters most. Our meticulous engineering has focused on optimizing every component, from the baseband processing to the final RF output, to deliver a seamless and powerful wireless experience.
Technical Specifications of the GaN LoRa Integrated Module
To provide full transparency and enable precise system integration, the detailed performance parameters of the GaN LoRa module are presented below. All measurements are taken under standard test conditions unless otherwise noted.
| Parameter | Specification / Value |
|---|---|
| Module Model | MOP-PAL-840/930M–50W |
| Working Frequency | 840-930 MHz (Other bands: 1500-1620 / 2400-2500 MHz available on request) |
| Saturated Output Power | 47 ± 1 dBm (~50W) |
| Gain | 47 ± 2 dB |
| In-Band Fluctuation | ≤ 2.0 dB |
| Input VSWR | ≤ 1.5 |
| Gain Temperature Stability | ≤ ±1.5 dB |
| Working Voltage | DC +28V |
| Working Current (at 47 dBm) | ≤ 5A |
| Out-of-Band Spurs (9 kHz – 1 GHz) | ≤ -36 dBm / 30 kHz |
| Out-of-Band Spurs (1 GHz – 12.75 GHz) | ≤ -30 dBm / 30 kHz |
| Output RF Port | SMA or N-Type (depending on configuration) |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +65°C |
| Operating Humidity | 5% to 95%, Non-Condensing |
Advanced GaN Power Amplifier Module: Redefining Reliability
The key to this module’s exceptional performance is its built-in GaN power amplifier module, which incorporates a novel thermal management system. Traditional amplifiers often suffer from performance degradation or failure under continuous high-power operation due to heat buildup. In contrast, our GaN design efficiently dissipates heat, ensuring reliable, long-term operation at full 50W output. This innovative architecture not only extends the lifespan of the component but also maintains consistent signal quality, a critical factor for mission-critical applications like emergency communications and smart grid automation.
When comparing options, our GaN LoRa integrated module offers the best cost-performance ratio among available GaN solutions. The design philosophy prioritizes both raw power and intelligent energy usage, meaning you get extended range without excessive power draw. This balance makes it an economically viable choice for large-scale deployments in industrial IoT, where thousands of nodes need to communicate reliably over kilometers. Whether deployed in harsh industrial settings with high electromagnetic interference or in complex outdoor environments with challenging weather conditions, this GaN LoRa module delivers consistent, excellent communication performance.
Conclusion
In a world where connectivity is the backbone of progress, having a wireless communication module that can be relied upon is non-negotiable. Our high-performance 50W 840-930MHz GaN LoRa integrated module is more than just a component; it is a complete solution designed to bridge the gap between power and practicality. By leveraging the unmatched capabilities of an advanced GaN power amplifier module, we have created a device that excels in transmission distance, energy efficiency, and thermal stability. For engineers and system architects seeking the optimal choice for their wireless networks, this GaN LoRa module represents the pinnacle of current technology. We are confident that it will empower your systems with the reliability and reach required for the challenges of tomorrow.
