Unleashing Robust Performance: The 50W Power Amplifier for 300-450MHz
In the demanding world of radio frequency (RF) communications, signal clarity and power are non-negotiable. Whether you are designing a critical communication infrastructure, supporting military-grade systems, or advancing amateur radio projects, the quality of your power amplifier can make or break your system’s performance. This article dives deep into a high-performance 50w power amplifier designed for the 300-450MHz frequency band, offering an in-depth look at its specifications, design features, and real-world applications.
Engineered for reliability and efficiency, this amplifier stands out for its exceptional gain and robust construction. It provides a powerful solution for boosting low-level signals to a formidable 50-watt output, making it an indispensable component for transmitters, repeaters, and test equipment. Let’s explore the key characteristics that make this unit a superior choice for professionals and enthusiasts alike.
Core Specifications and Design Excellence of the 50W Power Amplifier
This amplifier is not just about raw power; it’s about delivering that power cleanly, consistently, and under diverse operating conditions. The following table details the essential electrical and mechanical parameters that define its performance.
| Parameter | Specification / Detail |
|---|---|
| Operating Frequency | 300 – 450 MHz |
| Output Power | 50W (47 dBm) |
| Gain | 46 ± 2 dB |
| In-band Flatness | ≤ ± 1 dB |
| Operating Current | ≤ 5A |
| Operating Voltage | DC +28V |
| Input/Output VSWR | ≤ 1.5:1 |
| Maximum Lossless Input | +10 dBm |
| Amplifier Dimensions | 119 x 50 x 16 mm |
The combination of high gain and low in-band flatness ensures that the amplified signal remains faithful to the original, preserving modulation accuracy across the entire 150 MHz bandwidth. This is critical for modern digital modulation schemes that are highly sensitive to amplitude variations.
Robust Interface and Monitoring Capabilities

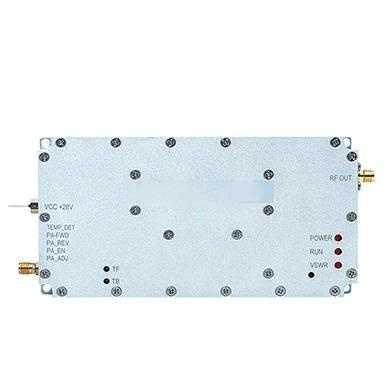

A hallmark of this 50w power amplifier is its thoughtful design for integration and monitoring. The unit features a feed-through capacitor for the power supply interface, providing effective RF decoupling and noise filtering. The RF ports are specified with precision: the RF input uses an SMA-KFD connector, while the RF output uses a durable N-F type connector, ensuring low loss and reliable mating.
| Interface Type | Connector / Component |
|---|---|
| Power Supply Interface | Feed-through Capacitor |
| RF Input (RFIN) | SMA-KFD |
| RF Output (RFOUT) | N-Female |
| Monitoring Interface | Feed-through Capacitor |
The inclusion of a monitoring interface via a feed-through capacitor allows for real-time observation of the amplifier’s operational status, facilitating easier system diagnostics and protective shutdown implementations.
Stringent Out-of-Band and Environmental Performance
Reliability extends beyond basic electrical specs. This amplifier has been engineered to suppress unwanted emissions and withstand challenging environments. The out-of-band spurs are meticulously controlled to ensure compliance with regulatory standards for spectral purity.
| Parameter | Specification / Value |
|---|---|
| Out-of-Band Spurs (9kHz – 1GHz) | ≤ -36 dBm / 30 kHz |
| Out-of-Band Spurs (1GHz – 12.75GHz) | ≤ -30 dBm / 30 kHz |
| Operating Temperature | -10°C to +55°C |
| Relative Humidity | 5% to 95% (Non-condensing) |
| Storage Temperature | -25°C to +65°C |
The amplifier’s ability to maintain performance across a wide temperature range, from -10°C to +55°C, and under high humidity conditions (up to 95% non-condensing), makes it suitable for outdoor or unenclosed installations. The storage temperature range of -25°C to +65°C further demonstrates its resilience during transport and idle periods.
Practical Applications of the 50W Power Amplifier
The versatility of this 50w power amplifier makes it a prime candidate for a variety of RF applications:
- Land Mobile Radio (LMR) Boosters: Extending the coverage area of VHF/UHF two-way radio systems in commercial and public safety networks.
- Drone FPV (First-Person View) Systems: Increasing the signal strength of video transmitters for long-range, high-altitude flights.
- Amateur Radio (Ham) Repeaters: Building or upgrading UHF repeaters to provide reliable communication over greater distances.
- Test and Measurement Equipment: Serving as a pre-amplifier or driver stage in RF signal generators and spectrum analyzers.
- Military and Defense Communications: Integrating into secure tactical radios requiring robust, high-power signal transmission.
Conclusion: A Reliable Workhorse for RF Systems
In summary, this 50w power amplifier represents a perfect balance of high power, exceptional gain, and robust design. Its precise electrical specifications, combined with thoughtful mechanical and thermal engineering, ensure it can handle the rigorous demands of continuous operation in the 300-450MHz band. The use of high-quality feed-through capacitors and standard RF connectors simplifies system integration, while the stringent control of out-of-band spurs guarantees compliance with spectral emission standards.
Whether you are upgrading a base station, building a portable transmitter, or developing new communications equipment, this amplifier provides the reliability and performance you need. By choosing this 50w power amplifier, you are investing in a component that will deliver consistent, clean power for years to come, ensuring your RF system performs at its absolute best under any condition.
