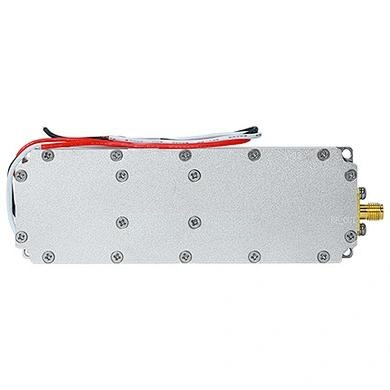

Unleash Superior Performance with the 50W 5100-5300MHz RF Power Amplifier
In the demanding world of radio frequency applications, the need for a reliable, high-efficiency amplifier is paramount. The 50W 5100-5300MHz RF power amplifier stands as a pinnacle of engineering, designed to meet the rigorous requirements of professional environments. As a best power amplifier, it integrates seamlessly with a VCO signal generator, dramatically enhancing the efficiency of signal generation and processing. This powerhouse not only delivers exceptional power but also ensures precision and stability, making it your ideal choice for critical RF tasks.
Whether you are working in wireless communication systems, radar technology, or anti-UAV defense, this amplifier offers a level of performance that sets a new standard. Its robust construction and advanced features guarantee that you get the most out of your RF setup, combining high output with minimal signal degradation. Let’s dive into the specifics that make this module a must-have for professionals seeking uncompromised quality.
Technical Excellence and Key Specifications
The core of this amplifier’s prowess lies in its carefully engineered parameters. Designed for the 5GHz band, it offers an ideal blend of power and fidelity. The following table outlines the detailed technical specifications, ensuring you have all the data needed to evaluate its fit for your application.
| Parameter | Specification |
|---|---|
| Operating Frequency Range | 5100 – 5300 MHz |
| Saturated Power Output | 47 ± 1 dBm |
| Gain | 47 dB |
| In-band Flatness | Excellent |
| Operating Current | ≤5 A |
| Input & Output VSWR | ≤1.5 |
| Out-of-band Spurious (9kHz ~ 1GHz) | ≤ -36 dBm / 30kHz |
| Out-of-band Spurious (1GHz ~ 12.75GHz) | ≤ -30 dBm / 30kHz |
| Maximum Lossless Input | +10 dBm |
| Operating Voltage | DC +28 V |
| Power Supply Interface | Feed-through capacitor |
| RF Port | SMA-KFD |
| Monitoring Interface | Feed-through capacitor |
| Amplifier Dimensions | 112 × 38 × 18 mm |
| Operating Temperature | -30 ~ +65℃ |
| Relative Humidity | 5% ~ 95%, No condensation |
| Storage Temperature | -30 ~ +65℃ |
Best Power Amplifier for Advanced RF Applications
As a best power amplifier, this module excels in environments where signal integrity is non-negotiable. The integration of a VCO signal generator streamlines the entire chain, reducing complexity while boosting performance. The 50W output ensures robust signal propagation, even in challenging conditions, while the high gain of 47dB compensates for losses in preceding stages.
The out-of-band spurious suppression is particularly noteworthy, with rigorous limits that minimize interference. This is critical in crowded frequency bands, ensuring your signal remains clean and compliant with regulatory standards. The compact form factor, measuring just 112 x 38 x 18 mm, allows for easy integration into existing systems without sacrificing valuable real estate. Whether deployed in fixed installations or mobile units, its durability shines through, handling temperatures from -30℃ to +65℃ and humidity levels up to 95%.
Additionally, the feed-through capacitor interfaces for power and monitoring simplify wiring and enhance EMI protection. The SMA-KFD RF port ensures reliable, low-loss connections. This combination of features makes it a superior choice for anti-UAV systems, wireless backhaul, and test equipment.
Conclusion: Elevate Your RF Solutions Today
In summary, the 50W 5100-5300MHz RF power amplifier is more than just a component; it is a comprehensive solution for demanding RF challenges. As a best power amplifier, it delivers unmatched performance, from its high saturated power output to its stringent spurious rejection. Its user-friendly design, complete with a VCO signal generator, simplifies system architecture while maximizing efficiency.
When you require a reliable, high-output amplifier that excels in the 5GHz spectrum, this module stands ready to perform. Invest in the best power amplifier for your critical applications and experience the difference in clarity, power, and dependability. Whether for defense, communication, or industrial use, this amplifier is engineered to exceed expectations. Upgrade your RF capabilities now and ensure your systems operate at peak performance.
