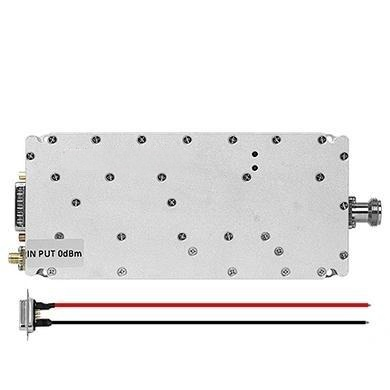

Unleash the Full Potential of Your RF Systems with the MOP-WBPA-600/1000-50W Wideband Power Amplifier
nnIn the demanding world of radio frequency (RF) engineering, signal integrity and amplification efficiency are paramount. The MOP-WBPA-600/1000-50W is a general-purpose wideband power amplifier engineered to meet the rigorous needs of modern RF systems. Designed as the ideal partner for DDS (Direct Digital Synthesis) signal generators and wideband RF transmission chains, this amplifier delivers exceptional performance across the 600-1000 MHz frequency range. Whether you are developing advanced communication systems, conducting precise test and measurement, or building robust RF transmission networks, this amplifier ensures your signals maintain their clarity and power.nn
Advanced Engineering for Unmatched Reliability
nnAt the heart of the MOP-WBPA-600/1000-50W lies a sophisticated Class AB GaN (Gallium Nitride) architecture, leveraging state-of-the-art GaN-on-SiC semiconductor technology. This combination delivers a remarkable balance of high power density, broad bandwidth, and superior thermal efficiency. The amplifier is built on a copper submount featuring a patented thermal design, which dramatically enhances heat dissipation. This thermal management ensures stable, long-term operation even under high-power conditions, reducing the risk of thermal runaway and extending the lifespan of your equipment. The result is a rugged, compact, and lightweight unit that withstands harsh environments while maintaining peak performance.nn
Exceptional Electrical Performance Specifications
nnFor engineers and system integrators, precise specifications are critical. The MOP-WBPA-600/1000-50W delivers a consistent and reliable performance profile. It operates from a 28-30V DC power supply and produces a typical peak CW (Continuous Wave) output power of 50 watts. With an impressive power gain of 47 dB and a broad gain flatness of ±3 dB, this amplifier ensures that your signal is boosted uniformly across the entire bandwidth. Efficiency reaches 22%, minimizing power waste, while spurious rejection exceeds 60 dBc, guaranteeing a clean output signal. Harmonic suppression is rated at 10 dBc or higher, and both input and output VSWR (Voltage Standing Wave Ratio) are maintained at 2:1 or better, ensuring excellent impedance matching for stable operation.nn
Technical Specifications Table
nnTo provide a clear and comprehensive overview of the amplifier’s capabilities, all critical parameters are presented in the table below. This data is essential for system design and validation.nn
| Parameter | Unit | Min | Typ | Max | Symbol |
|---|---|---|---|---|---|
| Operating Frequency | MHz | 600 | – | 1000 | FO |
| Operating Bandwidth | MHz | – | 400 | – | BW |
| Peak Output Power (@CW Signal) | W | – | 50 | – | PSAT |
| Input Power | dBm | – | -2±3 | – | PIN |
| Maximum Input Power (Without Damage) | dBm | – | – | 5 | PIN, MAX |
| Power Gain (@Input Power 0 dBm) | dB | – | 47±1 | – | GP |
| Gain Flatness (@Input Power 0 dBm) | dB | – | – | ±3 | ∆GP |
| Efficiency | % | – | 22 | – | EFF |
| Harmonics (1 to N @ Output Power 40 W) | dBc | 10 | – | – | HN |
| Spurious Level | dBc | 60 | – | – | Spur |
| Input VSWR | – | – | – | 2:1 | VSWR |
| Output VSWR | – | – | – | 2:1 | VSWR |
| Operating Voltage | V | – | 28-30 | – | VDC |
| Current Consumption (@Output Power 40 W) | A | – | 6.5 | – | IDC |
nn
Seamless Integration for Diverse Applications
nnThis wideband power amplifier is specifically optimized for DDS signal generators, which require clean, wideband signals to be amplified without distortion. The amplifier’s instantaneous wide bandwidth and 50Ω impedance make it a perfect match for these systems, enabling complex modulation schemes and high-speed frequency hopping. In communications, it enhances signal strength for transmitters in broadcast, military, and industrial applications. For test and measurement, the amplifier provides the necessary power to drive antennas, filters, and other devices during characterization and validation. Its compact design allows for easy integration into existing racks or test benches.nn
Conclusion: A Strategic Investment in RF Performance
nnThe MOP-WBPA-600/1000-50W wideband power amplifier stands out as a premier solution for professionals who demand reliability, power, and precision. By combining advanced GaN technology with smart thermal engineering, it delivers consistent 50W output across a broad 400 MHz bandwidth, with exceptional gain and low distortion. Whether you are pushing the boundaries of communication technology or ensuring accurate test results, this amplifier provides the performance backbone you can trust. Invest in the MOP-WBPA-600/1000-50W to elevate your RF systems to new heights of efficiency and capability.
