Unmatched RF Performance: The 6-18GHz Planar Helical Antenna Redefines Signal Integrity
nnIn the demanding world of professional radio frequency (RF) communications, signal reliability is non-negotiable. The 6-18GHz Planar Helical Antenna stands as a testament to engineering excellence, designed to meet the rigorous requirements of modern aerospace, satellite, and testing environments. This high-performance device, known as a High-Gain Wideband Antenna, combines an ultra-wide operating frequency range with a specialized Right-Hand Circular Polarization design. By leveraging these core technologies, the antenna ensures stable, uninterrupted signal reception even in the most challenging electromagnetic landscapes. Whether you are involved in satellite downlinking, RF module validation, or advanced wireless monitoring, this antenna offers a compact, durable, and high-fidelity solution that professional applications demand.nn
How Right-Hand Circular Polarization Enhances Signal Stability
nnThe cornerstone of this antenna’s robust performance lies in its Right-Hand Circular Polarization (RHCP) architecture. Unlike linear polarization, which is highly susceptible to signal degradation from reflections and multi-path interference, RHCP maintains signal integrity regardless of the antenna’s orientation relative to the transmitter. This characteristic is critical in environments where the signal source can rotate or where obstacles cause polarization shifts. As a Right-Hand Circular Polarization Antenna, the MOP6183624 ensures that the transmitted or received wave maintains a consistent rotational direction, significantly reducing data loss and improving link quality. This makes it an indispensable tool for satellite communication, where even minor polarization mismatches can lead to complete signal dropout.nn
Technical Specifications and Performance Parameters
nn
| Parameter | Value |
|---|---|
| Operating Frequency (GHz) | 6~18 |
| Standing Wave Ratio (SWR) | ≤2.5 |
| Polarization | Right-Hand Circular Polarization |
| Gain (Normal) | ≥3 dBi (including ≥6 dBi at 12 GHz) |
| Azimuth Beamwidth | ≥90° (at -5 dBi); ≥90° at -1 dBi (12 GHz & 18 GHz) |
| Elevation Beamwidth | ≥90° (at -5 dBi); ≥90° at -1 dBi (12 GHz & 18 GHz) |
| Reference Dimensions | ≤43 mm × 43 mm × 42 mm (excluding socket) |
| Weight | ≤0.07 kg |
| Antenna Cavity Material | Aluminum Alloy |
| Color | Military Green |
| Operating Temperature | -40°C to +55°C |
| Storage Temperature | -55°C to +70°C |
| Interface | SMA-50K (Stainless Steel) |
nn
Exceptional Gain and Wide Beam Coverage for Diverse Applications
nnA hallmark of this High-Gain Wideband Antenna is its ability to deliver both high signal strength and extensive coverage. With a typical gain of ≥3 dBi across the entire 6-18 GHz range, and a remarkable boost to ≥6 dBi at the crucial 12 GHz frequency, the antenna dramatically enhances signal amplitude, compensating for path loss in long-distance links. Even more impressive is its wide-beam architecture. The antenna maintains a beamwidth of ≥90° for both azimuth and elevation at a gain threshold of -5 dBi. Remarkably, at the high-gain standard of -1 dBi, the beamwidth remains ≥90° at both 12 GHz and 18 GHz. This unique combination of high gain and wide beam allows the antenna to serve multiple devices simultaneously in multi-angle configurations, making it ideal for test setups, ground stations, and distributed communication networks where broad spatial coverage is essential without sacrificing signal quality.nn
Durable Design for Harsh Operational Environments

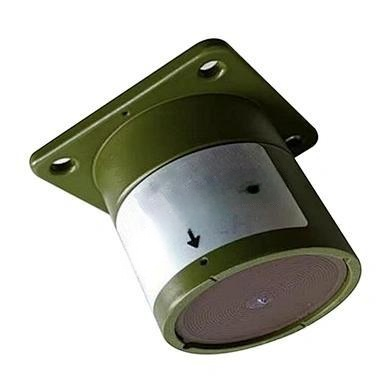

nnPracticality and environmental resilience are integral to the design of this 6-18GHz Planar Helical Antenna. Its dimensions (≤43 mm × 43 mm × 42 mm) and featherlight weight (≤0.07 kg) enable seamless integration into compact systems, including unmanned aerial vehicles (UAVs), portable testers, and dense satellite payloads. The cavity is precision-machined from high-strength aluminum alloy with a military green finish, offering exceptional corrosion resistance and impact tolerance. This ensures reliable performance in extreme conditions, from freezing arctic temperatures (-40°C) to scorching desert heat (+55°C), with storage capability down to -55°C. The SMA-50K stainless steel interface guarantees a robust, impedance-matched connection that endures constant mating cycles. Every aspect of its construction—from material selection to thermal management—underscores its suitability for mission-critical roles in aerospace, defense, and wireless monitoring.nn
Conclusion: The Go-To Solution for High-Frequency Professional Communication
nnIn summary, the 6-18GHz Planar Helical Antenna is more than a standard RF component; it is a precision tool engineered for excellence. As a High-Gain Wideband Antenna with Right-Hand Circular Polarization, it resolves the common trade-off between wide coverage and high gain. Its robust technical parameters, combined with a compact, resilient design, make it the preferred choice for professionals who require unwavering signal integrity in the 6-18 GHz spectrum. From ensuring reliable satellite links to enabling precise RF measurements, this antenna delivers consistent, high-quality performance. For any application demanding a balance of gain, bandwidth, and environmental endurance, this planar helical antenna stands out as an unmatched solution, solidifying its place as a cornerstone of advanced RF communication systems.
