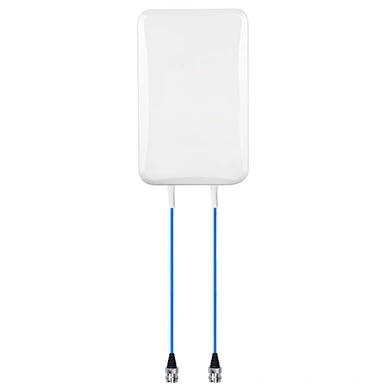

Elevating Connectivity: A Deep Dive into the 617-4200MHz Indoor MIMO Panel Antenna
nnIn the fast-paced world of modern wireless communications, a reliable signal is no longer a luxury—it’s a necessity. The 617-4200MHz Indoor MIMO Panel Antenna emerges as a powerful solution for those seeking to overcome the challenges of poor coverage and unstable connections. This high-performance indoor directional panel antenna is engineered to deliver robust signal strength and superior stability for a wide array of applications, from boosting cellular signals in a home office to supporting dense IoT networks in industrial settings. As a good indoor antenna, it leverages advanced beamforming and MIMO technology to ensure that every connected device operates at peak efficiency, making it an invaluable asset for today’s complex connectivity landscapes.nn
Unveiling the Power of a Directional Panel Antenna
nnAt its core, this device is a precision-tuned indoor directional panel antenna. Unlike omnidirectional antennas that broadcast signals in all directions, a directional antenna focuses its energy into a specific path. This focused approach is critical for several reasons. First, it minimizes interference from unwanted sources, allowing for a cleaner, more robust signal. Second, it extends the effective range of the signal in the desired direction, which is particularly important in environments with physical obstructions. Designed as a versatile panel antenna, this model’s compact, low-profile form factor allows for discreet mounting on walls or ceilings. This aesthetic advantage is crucial for offices, smart homes, hospitals, and retail spaces where bulky equipment can be disruptive.nn
Ultra-Wideband Performance and Technical Excellence
nnThe defining characteristic of this panel antenna is its ultra-wideband operation, covering frequencies from 617MHz all the way up to 4200MHz. This remarkable range ensures seamless compatibility with a multitude of wireless services, including 4G LTE, 5G NR, Wi-Fi 6 (including the 6GHz band in certain regions), and various IoT protocols. The antenna’s advanced design not only covers this wide spectrum but does so with exceptional efficiency. Its MIMO (Multiple-Input Multiple-Output) configuration allows for the simultaneous transmission and reception of multiple data streams, dramatically increasing data throughput and network capacity. The result is a good indoor antenna that handles high-bandwidth applications like video conferencing, streaming, and large file transfers without latency or buffering.nnTo truly appreciate its capabilities, a closer look at the technical specifications reveals the engineering prowess behind this indoor directional panel antenna.nn| Parameter | Frequency Band 1 (617-960 MHz) | Frequency Band 2 (1710-2700 MHz) | Frequency Band 3 (3300-4200 MHz) |n| :— | :— | :— | :— |n| Gain (dBi) | 6 ± 1 | 7.5 ± 1 | 8 ± 1 |n| VSWR | ≤ 2.0 | ≤ 1.8 | ≤ 1.8 |n| Polarization | ± 90° | ± 90° | ± 90° |n| Input Impedance | 50 Ω | 50 Ω | 50 Ω |n| Horizontal Beamwidth | 90° | 65° | 55° |n| Vertical Beamwidth | 75° | 60° | 35° |n| Intermodulation (IM3) | ≤ -150 dBc (2 x 43 dBm carrier) | ≤ -150 dBc (2 x 43 dBm carrier) | ≤ -150 dBc (2 x 43 dBm carrier) |n| Input Power per Port | 50 W | 50 W | 50 W |n| Connector | 2 x N-Female | 2 x N-Female | 2 x N-Female |n| Dimensions | 295 x 180 x 70 mm | 295 x 180 x 70 mm | 295 x 180 x 70 mm |n| Weight | 0.8 kg | 0.8 kg | 0.8 kg |n| Cover Material | ABS | ABS | ABS |n| Operating Temperature | -40°C to +60°C | -40°C to +60°C | -40°C to +60°C |nn
Why This is a Good Indoor Antenna for Modern Networks
nnSeveral factors make this an exceptionally good indoor antenna for contemporary and future-proof network demands. The low VSWR (Voltage Standing Wave Ratio) values across all bands indicate that the antenna is exceptionally well-matched to its transmission line, minimizing signal reflection and power loss. This translates directly into more efficient connectivity. The high intermodulation (IM3) specification is a critical metric for congested environments where multiple strong signals coexist; it ensures that the antenna does not generate interfering signals that could degrade network performance. Furthermore, its robust construction with an ABS cover and a wide operating temperature range means it can be deployed in a variety of indoor conditions, from climate-controlled offices to less regulated industrial floors. For any scenario requiring targeted, high-performance coverage, this panel antenna stands out as a reliable and effective core component.nn
Conclusion
nnThe 617-4200MHz Indoor MIMO Panel Antenna is more than just a piece of hardware; it’s a comprehensive solution to the challenges of modern indoor wireless coverage. By combining a compact, aesthetically pleasing design with ultra-wideband, multi-standard support and high-gain, focused performance, it redefines what a good indoor antenna can achieve. For network engineers, IT professionals, and anyone serious about reliable connectivity, this indoor directional panel antenna offers a clear path to a stronger, more stable, and more capable wireless network, ready to meet the demands of today and the innovations of tomorrow.
