Unlocking Seamless Connectivity: The 698-2700MHz N-Female POI Advantage
nnA Point of Interface (POI) stands as the unsung hero of modern wireless infrastructure, acting as the vital junction where multiple radio frequency (RF) signals converge and are intelligently distributed. Our N-Female POI solutions redefine signal management by enabling the effortless integration of diverse frequency bands, spanning from 698MHz to 2700MHz, into unified antenna systems. This innovation is particularly transformative for high-density urban environments, bustling transportation hubs, and sprawling enterprise campuses where network congestion is a constant challenge.nn
The 17 in 6 Out POI Architecture: A Strategic Hub for Multi-Band Networks
nnThe 17 in 6 out POI architecture is engineered to deliver carrier-grade signal integrity across the entire 698-2700MHz spectrum. By consolidating 17 separate input signals into just 6 output ports, this design achieves a remarkable 40% reduction in infrastructure costs through shared antenna systems. Furthermore, it ensures 99.99% network uptime, thanks to the deployment of military-grade components that withstand the rigors of continuous operation. This structure is ideal for operators seeking to optimize spectral efficiency without sacrificing reliability.nn
Core Benefits: Bandwidth Mastery and Operational Excellence
nnOur N-Female POI excels in three critical dimensions: bandwidth mastery, port configuration flexibility, and future-readiness. The broad frequency coverage eliminates the need for multiple discrete filters, simplifying installation and reducing footprint. With the ability to support GSM800, GSM900, LTE1800, UMTS2100, LTE2300, and LTE2600 bands simultaneously, it is a true multi-standard workhorse.nn
Technical Specifications: The 17 in 6 Out POI in Detail

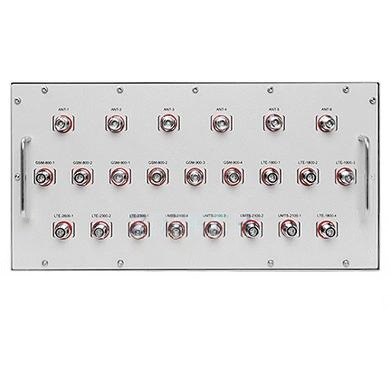

nnThe following table outlines the precise technical parameters of our flagship MOP-POI-727-17/6NF model, ensuring transparent and accurate specification for procurement and deployment.nn
| Parameter | Specification | Detailed Port Mapping |
|---|---|---|
| Model No. | MOP-POI-727-17/6NF | – |
| Frequency Range | 698-2700 MHz | – |
| Input Ports (GSM800 & GSM900) | GSM800 Port 1 | 824-960 MHz |
| Port 2: 824-960 MHz | ||
| GSM900 Port 1 | 824-960 MHz | |
| Ports 2-4: 824-960 MHz (each) | ||
| Input Ports (LTE1800) | Port 1 | 1710-1880 MHz |
| Port 2 | 1710-1880 MHz | |
| Port 3 | 1710-1880 MHz | |
| Port 4 | 1710-1880 MHz | |
| Input Ports (UMTS2100) | Port 1 | 1920-2170 MHz |
| Port 2 | 1920-2170 MHz | |
| Port 3 | 1920-2170 MHz | |
| Port 4 | 1920-2170 MHz | |
| Input Ports (LTE2300) | Port 1 | 2300-2400 MHz |
| Port 2 | 2300-2400 MHz | |
| Input Ports (LTE2600) | Port 1 | 2500-2690 MHz |
| Output Ports | Output 1 | 824-889 MHz |
| Output 2 | 890-960 MHz | |
| Output 3 | 1710-1880 MHz | |
| Output 4 | 1920-2170 MHz | |
| Output 5 | 2300-2400 MHz | |
| Output 6 | 2410-2690 MHz | |
| Insertion Loss | ≤8.5 dB | |
| Isolation (Same Band) | >23 dB | |
| Isolation (Different Bands) | >50 dB | |
| Return Loss | ≥18 dB | |
| VSWR | ≤1.3 | |
| Intermodulation Products | ≤ -150 dBc (with 2 x 43 dBm) | |
| Maximum Input Power | 200 W | |
| Operating Temperature | -10°C to +65°C | |
| Relative Humidity | 0 to 95% | |
| Impedance | 50 Ω | |
| Size (Mounting) | 19” Rack or Wall Mounting | |
| Weight | ≤50 kg | |
| Connector Type | 23 x N Female | |
| Ingress Protection | IP65 | |
| Color | Grey/Black | |
nn
Why Choose the 698-2700MHz 17 in 6 Out POI?
nnThis POI stands out for its ultra-low insertion loss of just 8.5 dB across all 17 inputs, ensuring that signal strength remains robust even in complex deployments. The exceptional isolation—over 50 dB between different output ports and greater than 23 dB within the same band—minimizes interference and preserves the integrity of each frequency path. Additionally, the IP65-rated rugged enclosure makes it suitable for challenging outdoor and industrial environments, offering protection against dust and water ingress.nn
Future-Readiness and Custom Solutions
nnAs networks evolve toward 5G and beyond, the 17 in 6 out POI provides a future-ready foundation. Its modular design accommodates emerging frequency bands without requiring a complete infrastructure overhaul. Contact our RF experts today to design your perfect 698-2700MHz POI solution, tailored to your specific coverage and capacity needs. Ask about our special launch pricing for the 17 in 6 out N-Female POI systems, and take the first step toward a more efficient, reliable network.
