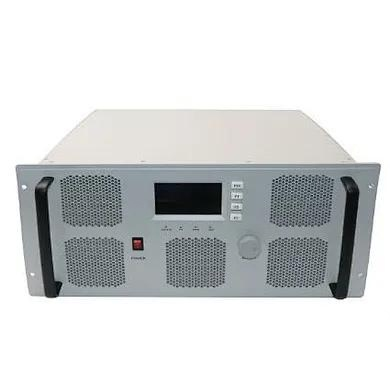

Unleashing Power: The MOP-PA-6/18G-50W 50W RF Amplifier
n
When you need robust, reliable performance across the critical 6-18 GHz frequency range, the 50W Power Amplifier, model MOP-PA-6/18G-50W, stands as a formidable solution. Designed for demanding applications in defense communications, electronic warfare, and high-end test systems, this amplifier combines exceptional output power with precise gain control. Whether you are integrating it into a radar system or boosting signals for long-range transmission, this unit delivers consistent, high-fidelity amplification that engineers depend on. In this article, we will explore the core features, technical specifications, and practical advantages of this powerful RF component, ensuring you have all the insights needed to make an informed decision. The 50W Power Amplifier doesn’t just amplify—it transforms weak signals into commanding, reliable outputs, making it an indispensable asset for any high-performance electronic system.
n
Key Technical Parameters of the 50W Power Amplifier
n
Understanding the technical backbone of the 50W Power Amplifier is crucial for proper system integration. The device offers a remarkable 47 dB of power gain, ensuring that even a minimal 0 dBm input signal can achieve its rated saturated power. This level of performance is supported by stringent design standards that minimize signal degradation and maximize efficiency. Below, we break down the essential electrical and mechanical characteristics that define this amplifier’s capabilities, all presented in a clear, structured format for quick reference.
n
Electrical Performance Specifications
n
| Parameter | Value |
|---|---|
| Operating Frequency | 6-18 GHz |
| Output Power | 50W (47 dBm) |
| Power Gain | 47 dB |
| Input Power for Rated PSAT | 0 dBm |
| Power Gain Flatness | +2.5 dB |
| Input Return Loss | -10 dB |
| Harmonics @ POUT = 30W | -20 dBc |
| Spurious Signals @ POUT = 30W | -60 dBc |
| Input/Output Impedance | 50 Ohms |
| Operating Voltage (Single-Phase) | 180-240 VAC |
| Power Consumption @ 30W CW | 800W |
n
Mechanical and Environmental Specifications
n
| Parameter | Value |
|---|---|
| Dimensions (W x H x D) | 280 x 120 x 30 mm |
| Weight | 20 kg |
| RF Connectors (Input/Output) | SMA, Female / SMA, Female |
| Cooling System | Built-in internal forced air cooling |
| Operating Temperature | -20 to 50°C |
| Storage Temperature | -25 to 85°C |
n
Why Choose This 50W Power Amplifier for Your System?
n
The 50W Power Amplifier is engineered for longevity and precision. Its compact form factor (280x120x30mm) belies its robust 20kg build, which houses an efficient internal forced air cooling system. This ensures stable operation even under continuous wave (CW) conditions at 30W output, where power consumption reaches 800W. The low harmonic and spurious levels—-20 dBc and -60 dBc respectively—ensure that the amplified signal remains clean and free from interference, which is critical for sensitive measurement equipment or secure communications. Furthermore, the wide operating voltage range (180-240V) makes it adaptable to various global power standards without additional transformers. Whether you are replacing an aging unit or designing a new system from scratch, this amplifier offers the reliability and performance headroom that high-stakes projects demand. Its SMA female connectors are industry-standard, simplifying integration with most test cables and adapters.
n
Conclusion
n
In summary, the MOP-PA-6/18G-50W stands as a benchmark for high-power, wideband amplification. Its excellent gain flatness, robust construction, and clean signal output make the 50W Power Amplifier an ideal choice for professionals who cannot compromise on performance. From laboratory testing to field-deployed systems, this amplifier delivers the power and consistency required to elevate your RF capabilities. When your application demands uncompromised signal integrity and brute-force amplification in the 6-18 GHz band, this unit proves to be a worthy investment. Evaluate your system requirements, and let this amplifier become the cornerstone of your next successful project.
