Unmatched Performance with the Multi Band Sector Antenna: Redefining Outdoor Communications
nn
In the rapidly evolving landscape of wireless communication, the need for robust, reliable, and wideband coverage has never been more critical. Enter the multi band sector antenna, a high-performance outdoor sector antenna and directional antenna engineered to excel in complex outdoor environments. This powerful piece of technology is designed to bridge the gap between multiple frequency standards, providing seamless connectivity for a diverse range of applications. Whether you are expanding a 4G LTE network, scaling infrastructure for IoT devices, or bolstering public safety communications, this antenna promises consistent excellence.
nn
At its core, this multi band sector antenna stands out by covering seven mainstream frequency bands ranging from 433MHz to 5850MHz. This exceptional bandwidth ensures compatibility across a wide array of systems, from low-frequency long-range links to high-speed microwave transmissions. The result is a single, unified solution that eliminates the need for multiple antennas, simplifying installation and reducing overall system complexity. With a consistent 15 dBi gain across all bands and ±45° dual polarization, signal reliability is maximized, mitigating the effects of fading and interference even in crowded spectral environments.
nn
Precision Engineering for Demanding Scenarios
nn
Robust Directional Control and Interference Suppression
nn
As a specialized outdoor sector antenna, this model incorporates a horizontal beamwidth of 65°±10° and a vertical beamwidth of 30°, offering targeted coverage that minimizes overlap while maximizing sector capacity. The front-to-back ratio of >20-25 dB further ensures that unwanted side and rear noise is suppressed, maintaining pristine signal quality. This directional antenna excels in tower-based deployment or urban rooftops where spectral efficiency and interference management are paramount.
nn
Superior Electrical Stability
nn
The electrical characteristics of this multi band sector antenna are meticulously engineered for high-reliability applications. A VSWR of ≤1.5:1 guarantees minimal reflected power, thereby reducing strain on transmitters and improving overall system efficiency. The third-order PIM (Passive Intermodulation) is rated at ≤ -150 dBc with 2 x 43 dBm carriers, ensuring that crosstalk and distortion are nearly eliminated. Isolation exceeds 26 dB, allowing multiple radios to operate simultaneously without degradation.
nn
Below is a comprehensive breakdown of the key electrical and mechanical specifications, presented as structured data for easy reference.
nn
| Parameter | Band 1 (433-455 MHz) | Band 2 (868-915 MHz) | Band 3 (1160-1290 MHz) | Band 4 (1570-1620 MHz) | Band 5 (2400-2500 MHz) | Band 6 (5150-5350 MHz) | Band 7 (5725-5850 MHz) |
|---|---|---|---|---|---|---|---|
| Gain (dBi) | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Polarization | ±45° | ±45° | ±45° | ±45° | ±45° | ±45° | ±45° |
| Horizontal Beamwidth (°) | 65 ± 10 | ||||||
| Vertical Beamwidth (°) | 30 | ||||||
| Front-to-Back Ratio (dB) | >20 | >25 | >25 | >25 | >25 | >25 | >25 |
| VSWR | ≤1.5:1 | ||||||
| Isolation (dB) | >26 | ||||||
| PIM, 3rd Order (dBc) | -150 | ||||||
| Maximum Power (W) | 250 | ||||||
| Impedance (Ω) | 50 | ||||||
nn
Mechanical Resilience for Harsh Conditions
nn

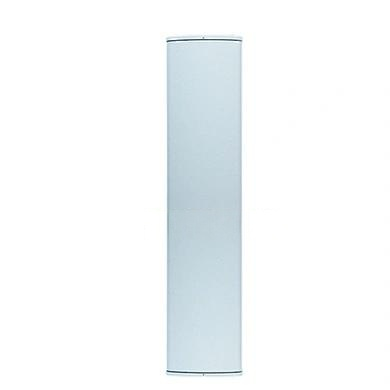

Beyond electrical performance, the physical construction of this multi band sector antenna is built to withstand the most demanding outdoor conditions. The radome is crafted from high-strength fiberglass, available in white or grey, to blend with any environment while providing excellent durability against UV radiation and chemical exposure. The antenna measures 1500 x 328 x 148 mm and weighs just 10.5 kg without the mounting kit, making it manageable for site installations.
nn
The mechanical specifications further include an N-type female connector located at the bottom, facilitating straightforward cable routing. The mounting hardware accommodates poles with diameters ranging from 45 mm to 95 mm, ensuring compatibility with standard tower infrastructure. With an operational wind speed rating of up to 200 km/h and a temperature range of -40°C to +60°C, this directional antenna will continue to perform flawlessly in extreme climates from arctic cold to desert heat.
nn
The following table summarizes the mechanical and environmental parameters:
nn
| Parameter | Value |
|---|---|
| Dimensions (H x W x D) | 1500 x 328 x 148 mm |
| Weight (without mounting kit) | 10.5 kg |
| Radome Material & Color | Fiberglass, white or grey |
| Connector Type & Location | N female, bottom |
| Mounting Hardware Diameter | 45 – 95 mm |
| Operational Wind Speed | 200 km/h |
| Operational Temperature | -40°C to +60°C |
| Operational Humidity | Up to 100% |
nn
Conclusion: The Ultimate Multi Band Sector Antenna Solution
nn
When the stakes are high and coverage expectations are uncompromising, this multi band sector antenna rises above the competition. Its wideband, multi-band capability, combined with consistent high gain and dual polarization, ensures that your network remains robust and interference-free. This outdoor sector antenna is not just a product; it is the foundation for scalable, future-proof communication systems. Whether you are a telecommunications provider, a system integrator, or a government agency, investing in this directional antenna means investing in reliability, performance, and longevity.
nn
In summary, the exceptional electrical stability, precise directional control, and rugged mechanical design make this multi band sector antenna the ideal choice for any outdoor communication coverage application. It is truly the definitive solution for achieving seamless, high-quality connectivity across multiple frequency bands.
