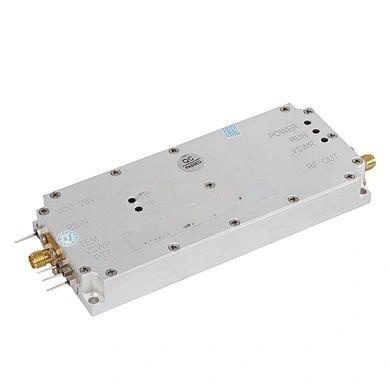

Unlocking High Performance: The 5W-15W Power Amplifier
nn
In the demanding world of wireless communications, signal integrity is paramount. Whether you are working on military-grade systems, satellite links, or advanced cellular infrastructure, the strength and purity of your transmitted signal can make or break your application. Enter the 5W-15W power amplifier, a compact yet formidable solution designed to bridge the gap between low-power signal generation and the robust output needed for long-distance transmission. This versatile device offers a critical combination of high gain, broad frequency coverage, and dependable power output, making it an indispensable component in modern RF engineering. By precisely boosting weak signals without introducing significant distortion, this amplifier ensures your communication remains clear, stable, and effective across a stunning range of frequency bands.
nn
Selecting the right amplifier requires a deep understanding of your specific system parameters. This 5W-15W power amplifier is engineered to handle diverse challenges, from overcoming cable losses in a test bench to providing the final push for a high-power transmitter chain. Its design philosophy prioritizes both performance and reliability, with robust thermal management and a compact form factor that integrates seamlessly into tight chassis layouts. We will explore the key specifications, operational metrics, and practical considerations that define this device, ensuring you have the information needed to evaluate its fit for your next project.
nn
Comprehensive Specifications and Electrical Characteristics
nn
Understanding the granular details of any power amplifier is the first step to successful integration. The 5W-15W power amplifier is defined by a set of precise electrical parameters that dictate its behavior across various operating conditions. Below, we break down the core measurements, from power output and gain stability to spectral purity and impedance matching. These specifications not only highlight the amplifier’s capability but also provide the benchmarks necessary for system-level design.
nn
Power, Gain, and Linearity Metrics
nn
The heart of this amplifier lies in its ability to deliver consistent power with minimal signal degradation. The following table outlines the primary performance parameters that describe its output characteristics and gain profile.
nn
| Parameter | Specification |
|---|---|
| Output Power (Selectable) | 5W, 10W, 15W |
| Gain (Standard) | 45±2dB |
| Gain (High Precision) | 40±1dB or 45±1dB |
| In-band Flatness | ≤2dB or ≤±1dB |
| Operating Current (5W/10W) | ≤2A |
| Operating Current (15W) | ≤2.5A |
nn
Frequency Band Coverage
nn
This amplifier offers exceptional flexibility in frequency selection, covering a vast spectrum from 20 MHz to 6 GHz through customizable band-specific variants. This wide coverage makes it suitable for a multitude of applications, including ISM bands, cellular frequencies, and specialized defense communications.
nn
| Band ID | Frequency Range (MHz) |
|---|---|
| Band 1 | 20 – 100 |
| Band 2 | 100 – 300 |
| Band 3 | 300 – 500 |
| Band 4 | 500 – 760 |
| Band 5 | 760 – 851 |
| Band 6 | 851 – 894 |
| Band 7 | 894 – 960 |
| Band 8 | 900 – 928 |
| Band 9 | 925 – 960 |
| Band 10 | 960 – 1300 |
| Band 11 | 1300 – 1570 |
| Band 12 | 1570 – 1620 |
| Band 13 | 1620 – 1805 |
| Band 14 | 1805 – 1880 |
| Band 15 | 1880 – 2110 |
| Band 16 | 2110 – 2170 |
| Band 17 | 2110 – 2400 |
| Band 18 | 2400 – 2500 |
| Band 19 | 2500 – 2700 |
| Band 20 | 2700 – 3400 |
| Band 21 | 3400 – 3800 |
| Band 22 | 3800 – 4400 |
| Band 23 | 4400 – 5000 |
| Band 24 | 5000 – 6000 |
| Band 25 | 5100 – 5900 |
nn
Environmental and Mechanical Standards
nn
To ensure long-term reliability in field-deployed and lab environments, the amplifier is built to strict mechanical and environmental tolerances. The table below details the physical dimensions, operating conditions, and interface specifications critical for integration and operation.
nn
| Parameter | Specification |
|---|---|
| Operating Voltage | DC +28V |
| Amplifier Dimensions | 119 × 50 × 16 mm |
| Input and Output VSWR | ≤1.5 |
| Maximum Lossless Input | +10 dBm |
| Power Supply Interface | Feed-through capacitor |
| RF Port | SMA-KFD |
| Monitoring Interface | Feed-through capacitor |
| Operating Temperature | -10 to +55°C |
| Storage Temperature | -25 to +65°C |
| Relative Humidity | 5% to 95% (Non-condensing) |
| Out-of-band Spurs (9kHz-1GHz) | ≤ -36 dBm / 30 kHz |
| Out-of-band Spurs (1GHz-12.75GHz) | ≤ -30 dBm / 30 kHz |
nn
Conclusion: Precision and Power in One Package
nn
The 5W-15W power amplifier stands out as a robust and highly configurable solution for modern RF systems. Its ability to deliver clean, high-gain amplification across such a wide array of frequency bands, from low VHF up to C-band, is a testament to its sophisticated design. The strict control over in-band flatness and out-of-band spurious emissions ensures that your signal integrity is preserved, while the low VSWR and feed-through capacitor interfaces simplify integration into complex setups. Whether you need 5W for a sensitive receiver drive or 15W for a final transmission stage, this amplifier provides the flexibility and performance demanded by today’s advanced wireless technologies.
nn
When planning your next RF project, consider the long-term benefits of using a component that not only meets but anticipates your operational needs. The 5W-15W power amplifier is more than just a signal booster; it is a comprehensive building block for reliable communication. Its compact mechanical footprint and wide environmental tolerance make it suitable for both rack-mount equipment and portable transceivers. By choosing this amplifier, you are investing in a device that significantly reduces system complexity while enhancing overall signal quality and range.
